Brief Introduction

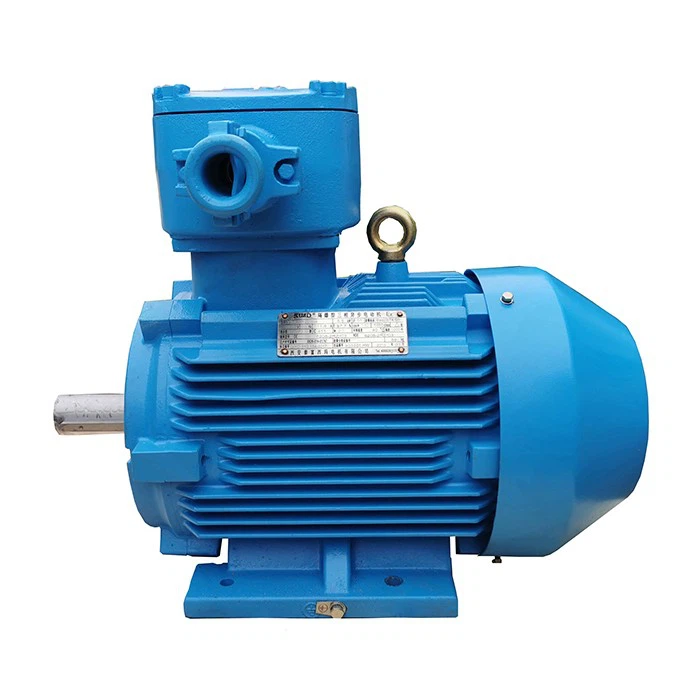

YBX4 series super high efficiency low-voltage exp motor is the upgraded series of YBX3, which has more higher efficiency--IE4. It's a basic series of fully enclosed, self-cooled, squirrel-cage and flameproof three-phase asynchronous motors developed by our company. The cooling mode is IC411, the explosion-proof mark is ExdⅠMb and ExdⅡBT4 Gb, and it can replace ExdⅡAT1Gb, ExdⅡAT2 Gb, ExdⅡAT3 Gb, ExdⅡAT4 Gb, ExdⅡBT1Gb, ExdⅡBT2 Gb and ExdⅡBT3 Gb.
Main Technical Parameters
|
Frame: |
H80~H355 |
|
Power Scope: |
0.37KW~315KW |
|
Voltage: |
380V, 400V, 415V, 460V, 490V, 660V, 690V,1140V |
|
Frequency: |
50Hz, 60Hz |
|
Number of Poles: |
2P, 4P, 6P, 8P, 10P,12P |
|
Speed: |
3000rpm, 1500rpm, 1000rpm, 750rpm, 600rpm,500rpm |
|
Cooling Method |
IC411 |
|
Protection Grade |
IP55 |
|
Insulation Class |
F(155℃), H(180℃) |
|
Duty: |
S1, S4, S5, S6, S9 |
|
Mounting Type |
B3/ B5/ B35/ V1 |
|
Standard: |
IEC |
|
Efficiency Grade: |
IE4 |
YBX4 series of Motor Introduction
YBX4 series of exp motor has the advantages of excellent explosion-proof property, high efficiency, energy saving, large temperature rise margin, long operation life, good property, low vibration, advanced explosion-proof structure, good starting performance, good-looking appearance, high reliability and no sparking while operating.
Operation conditions
Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).
Application
YBX4 exp motor is mainly applied in areas with mixed dangerous and explosive gases, such as underground coal mine (non- excavation working faces), petroleum, chemical engineering, mining industry, metallurgical industry, power and natural gas areas which contains gases like methane.
Factory Profile
Simo Motor
Xi'an Simo Motor Co., Ltd. is a professional manufacturer of electric motors in China's machinery industry. The motors it produces include large - and medium - sized, high - and low - voltage, AC and DC motors, synchronous motors, high - efficiency motors, and explosion - proof motors. It is a power system provider integrating motor design and manufacturing, mechanical processing, and automation complete engineering.
The company was established in 1955 and has a history of 70 years in motor production and sales. In 1995, Simo Motor was the first in the motor industry to obtain the ISO9001 - 1994 quality management system certification. In 2017, it passed the ISO9001 - 2015 quality management system certification of the China Quality Certification Center (CQC).
Simo Motor holds over 120 invention patents for its products. It has 34 major product series, including more than 1,800 sub - categories and a total of over 19,500 specifications. The power range is from 0.55 kilowatts to 25,000 kilowatts.
Choose Simo, Choose Quality!
