Permanent Magnetic Synchronous Motor
You Professional Permanent Magnetic Synchronous Motor Suppliers！
Founded in 1955, Xian Simo Motor Co., Ltd. (The former Xi'an Tech Full Simo Motor Co., Ltd.) is the manufacturer who has a history of over 70 years in the researching and manufacturing of medium voltage motors, low voltage AC motors (IEC & NEMA standard), MV motors, DC motors, large size synchronous motors & generators and related starters & drives and has been one of the leading comprehensive power system supplier in China.
-

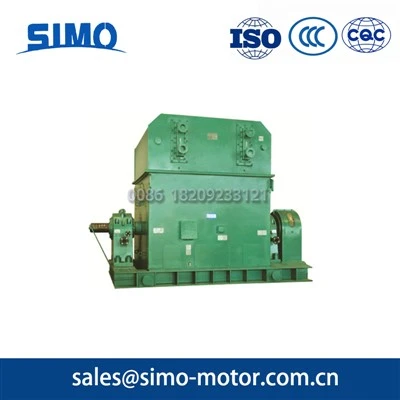

![2500KW AC Synchronous Motor]()
2500KW AC Synchronous MotorThe 2500KW AC Synchronous Motor is developed by our company, featuring high rotational speed and allowing direct full-voltage starting. During startup, the rotor circuit should be connected with a...read more -

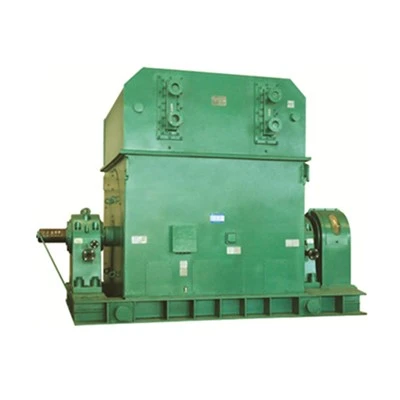

![AC Three-Phase Synchronous Motor （3200KW） For Drive Ventilation Fan]()
AC Three-Phase Synchronous Motor （3200KW） For Drive Venti...AC Three-Phase Synchronous Motor （3200KW） for Drive Ventilation Fan is developed by our company, featuring high rotational speed and allowing direct full-voltage starting. During startup, the...read more -
![AC Three-Phase Synchronous Motor 1250KW]()
AC Three-Phase Synchronous Motor 1250KWAC Three-Phase Synchronous Motor （1250KW ）is developed by our company, featuring high rotational speed and allowing direct full-voltage starting. During startup, the rotor circuit should be...read more -

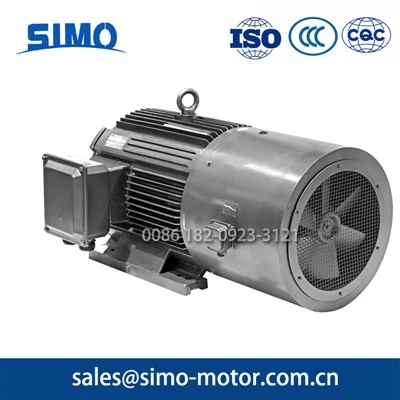

![High Power Permanent Magnetic Synchronous Motor]()
High Power Permanent Magnetic Synchronous MotorPMSM is a synchronous motor that generates a synchronous rotating magnetic field by the excitation of a permanent magnet, the permanent magnet is used as a rotor to generate a rotating magnetic...read more -

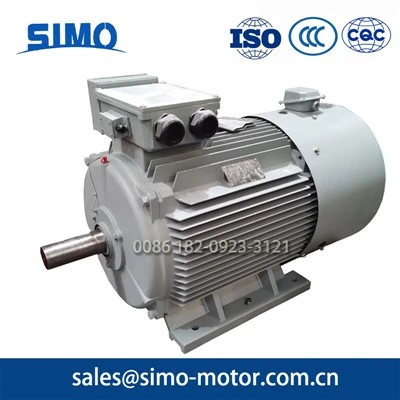

![Big Permanent Magnetic Synchronous Motor]()
Big Permanent Magnetic Synchronous MotorBig permanent magnet synchronous motor has the advantages of simple structure, small size, high efficiency and high power factor. With the special inverter, it can be used with adjustable speed...read more -

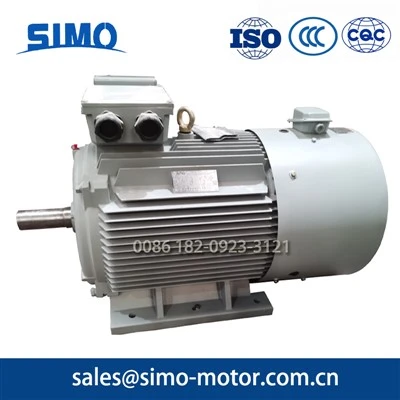

![380V Permanent Magnetic Synchronous Motor]()
380V Permanent Magnetic Synchronous Motor380V Permanent Magnet Synchronous Motor (PMSM) is a synchronous motor that is manufactured by SIMO motor company. It uses permanent magnets to generate a magnetic field, and its operating voltage...read more -

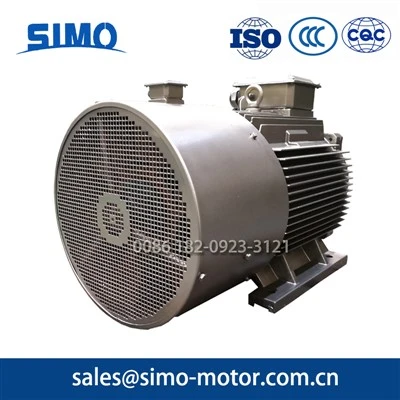

![Three Phase PMSM Motor]()
Three Phase PMSM MotorTCYP5-250M-6 Three phase PMSM motor is a permanent magnets synchronous motor, for short is PMSM. It uses permanent magnet material for the rotor magnetic field. It was developed by China Simo...read more -

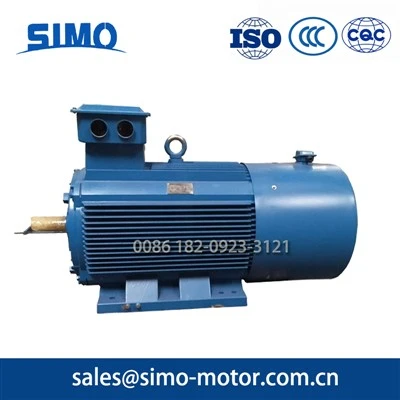

![30kw PMSM Motor]()
30kw PMSM Motor30kw PMSM motor is a synchronous motor that uses permanent magnets as the rotor magnetic field. It combines the high energy density of permanent magnets with the high efficiency and high power...read more -

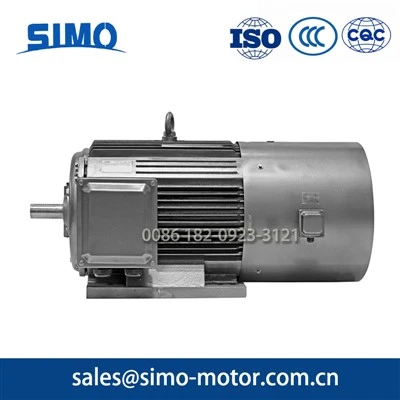

![Permanent Magnet Rotor Motor]()
Permanent Magnet Rotor MotorTCYP5-200-6 is a variable frequency speed adjusting three-phase permanent magnet synchronous motor, based on design of the TYP5 series. TCYP5-200 series motors is manufactured by China SIMO...read more -

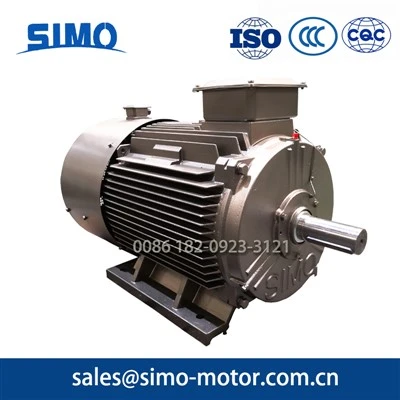

![Three-phase Permanent Magnet Synchronous Motor]()
Three-phase Permanent Magnet Synchronous MotorTCYP5-180L-6 is a variable frequency speed regulating three-phase permanent magnet synchronous motor, belonging to the TYP5 series. More information welcome to contact with us...read more -
![7.5kw PMSM Motor]()
7.5kw PMSM MotorThe stator structure of 7.5kw PMSM Motor is made by China Simo Motor Company, It is similar to that of ordinary induction motors, and adopts a laminated structure. The rotor structure is different...read more -
![SIMO MOTOR PMSM TCYP5]()
SIMO MOTOR PMSM TCYP5SIMO MOTOR make PMSM（permanent magnet synchronous motor）is a synchronous motor that uses permanent magnets to generate a magnetic field. The speed of its rotor is consistent with the current...read more
Why Choose Us
Competitive Price
Our products price is competitive. We've optimized production, cutting waste and time. Our large - scale operation brings economies of scale, letting us get better raw material prices.
OEM Service
If you have your own esteemed brand in your market, welcome to work with us for OEM Service. Better price, better quality, welcome to contact with us!
Sales Market
By strictly adhering to the customer - first principle, the company's motors are exported globally to countries like the United States, Russia, the UK, Italy, and a large number of other nations and regions.
One Stop Purchasing
Our One Stop Purchasing for motors & drives offers unbeatable convenience. Source everything here, saving time and costs. Our experts ensure you get the right products, making procurement a seamless process.
Permanent Magnetic Synchronous Motor - Overview
A permanent magnet synchronous motor (PMSM) - is a synchronous electric motor whose inductor consists of permanent magnets.A permanent-magnet synchronous motor (PMSM) uses permanent magnets embedded in the rotor to create a constant magnetic field.
Product Specification
We offer the following Specifications：
|
Type: |
PMSM Permanent Magnetic Synchronous Motor |
|
Model1: |
TCYP5-355M1-6-160kW |
|
Model2: |
TCYP5-355M2-6-200kW |
|
Model3: |
TCYP5-355L-6-250kW |
|
Power: |
160kw 200kW 250Kw |
|
Frame size: |
355mm |
|
Voltage: |
380V 490V 460V 660V |
|
Rated Frequency: |
33.3Hz |
|
Cooling Method: |
IC416 |
|
Protection Grade: |
IP55 |
|
Insulation: |
H 180℃ |
|
Speed: |
1000rpm |
|
Poles: |
6P |
|
Power Factor: |
Cos: 0.9 |
|
VFD: |
XBP480T160GB-plus, XBP480T200GB-plus, XBP480T250GB-plus |
Types of PMSM
Based on the rotor design, PMSMs are classified into two categories:
PMSM with salient pole rotor
PMSM with non-salient pole rotor.
For a PMSM with a salient pole rotor, the quadrature inductance is not equal to direct inductance, Lq ≠ Ld. Whereas, for a PMSM with a non-salient pole rotor, the quadrature inductance is equal to direct inductance, Lq = Ld.
Another classification of PMSM based on the rotor design is:
Surface permanent magnet synchronous motor
Interior permanent magnet synchronous motor.
Advantages of Permanent Magnetic Synchronous Motor
The motor is small in size and light in weight. with the continuous application of high-performance permanent magnet materials, the power density of permanent magnet synchronous motors has been greatly improved. The output torque of permanent magnet synchronous motors under the same volume is about 1.7 times that of induction motors.
Wide speed range The permanent magnet synchronous motor based on the special structure design can adopt the maximum torque/current control strategy during constant torque operation and adopts the field weakening control strategy during constant power operation, which can obtain good speed regulation operation characteristics, and successfully achieved over 5 times the field weakening speed range.
Small moment of inertia, high acceleration can be obtained, and good dynamic performance.
Large overload capacity The rotor of a permanent magnet synchronous motor has no slippage. When rigid processing is carried out, there will be no surface effect processing abnormality caused by speed fluctuation.
Applications of PMSM
Electric Vehicles (EVs) and Hybrid Electric Vehicles (HEVs): PMSMs are commonly used in electric and hybrid vehicles due to their high efficiency, compact size, and ability to provide high torque at low speeds. They contribute to improving the overall performance and range of electric vehicles while enabling regenerative braking for energy recovery.
Industrial Automation: PMSMs find extensive use in industrial applications, such as robotics, CNC machines, conveyors, and various machinery used in manufacturing processes. Their precise speed control, high torque, and efficiency make them suitable for different automation tasks.
HVAC Systems: Permanent Magnet Synchronous Motors are employed in heating, ventilation, and air conditioning (HVAC) systems, including fans and pumps, due to their energy efficiency and ability to operate at variable speeds, matching the load requirements accurately.
Renewable Energy Generation: PMSMs are utilized in wind turbines and hydroelectric generators due to their ability to efficiently convert mechanical energy into electrical energy. Their high efficiency is beneficial in renewable energy systems where maximizing energy conversion is essential.
Consumer Appliances: Certain household appliances like washing machines, refrigerators, and dishwashers also use PMSMs for their energy efficiency, reduced noise levels, and improved performance.
Aerospace: PMSMs are employed in aerospace systems, including electric propulsion systems in aircraft and satellites, owing to their lightweight design, high power density, and efficiency.
Structure of Permanent Magnetic Synchronous Motor
The permanent magnet synchronous motor is mainly composed of rotor, end cover and stator. The stator structure of a permanent magnet synchronous motor is very similar to the structure of an ordinary induction motor. The biggest difference between the rotor structure and the asynchronous motor is that high-quality permanent magnet poles are placed on the rotor. According to the position of the permanent magnet on the rotor, Permanent magnet synchronous motors are usually divided into surface rotor structure and built-in rotor structure.
The placement of the permanent magnet has a great influence on the performance of the motor. Surface type rotor structure-permanent magnets are located on the outer surface of the rotor core. This type of rotor has a simple structure, but the asynchronous torque generated is very small, which is only suitable for occasions with low starting requirements and is rarely used. Built-in rotor structure-the permanent magnet is located in the iron core between the squirrel cage guide bar and the rotating shaft, and the starting performance is good. Most of the current permanent magnet synchronous motors adopt this structure.
Customization
Exclusive company logo design.
Product customization, sample customization.
Website design.
Provide sales materials, such as taking product pictures and videos for free, formulating brochures or promotional posters.
Make one-to-one sales plans, clarify goals and product sales plans.
Packaging & Delivery:
Certificate
FAQ
As one of the leading permanent magnetic synchronous motor manufacturers and suppliers in China, we warmly welcome you to buy high-grade permanent magnetic synchronous motor made in China here from our factory. All our products are with high quality and competitive price.
high voltage synchronous motor, mining motors, low voltage motor
