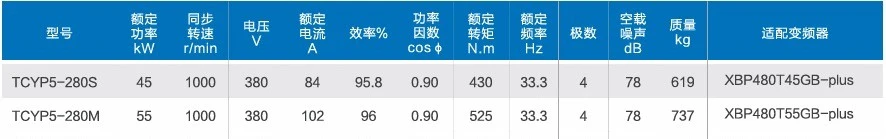

Main Data
Type: PMSM Permanent Magnetic Synchronous Motor
Model1: TCYP5-280S-6
Model2: TCYP5-280M-6
Power: 45kw 55kW
Frame size: 280mm
Voltage: 380V 490V 460V 660V
Rated Frequency: 33.3Hz
Cooling Method: IC416
Protection Grade: IP55
Insulation: H 180℃
Speed:1000rpm
Poles: 6P
Efficiency: 95.8% 96%
Power Factor: Cos: 0.9
Weight: 619kg 737kg
VFD: XBP480T45GB-plus XBP480T55GB-plus
Introduction

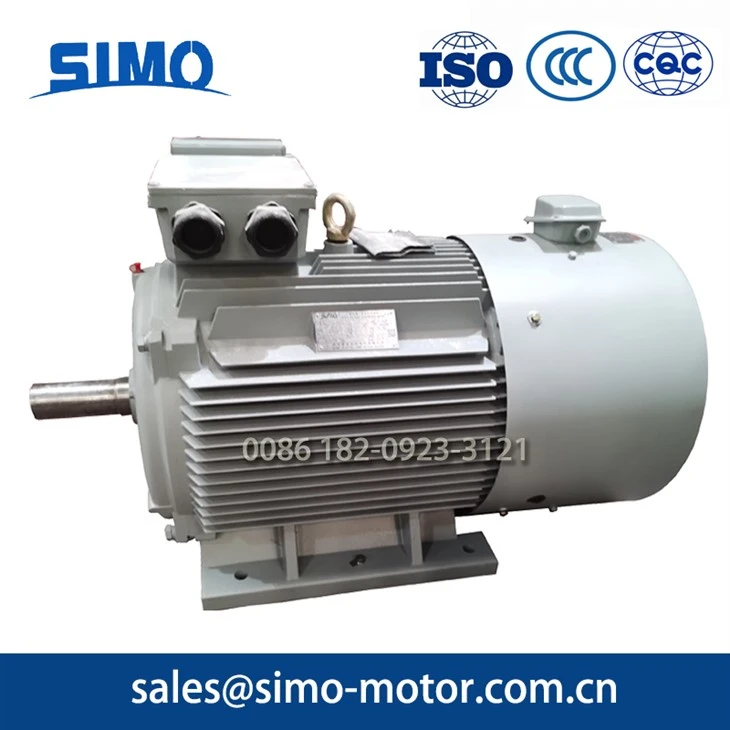

380V Permanent Magnet Synchronous Motor (PMSM) is a synchronous motor that is manufactured by SIMO motor company. It uses permanent magnets to generate a magnetic field, and its operating voltage is 380V. The rotor speed of PMSM is consistent with the current frequency of the stator winding, which has the advantages of high efficiency, reliability and good dynamic response performance. Its working principle is based on the interaction between the rotating magnetic field generated by the stator and the magnetic field generated by the permanent magnets on the rotor. The rotor is mounted with pre-magnetized permanent magnets that are capable of generating a strong magnetic field as they rotate, providing greater output torque. The control system of the motor will precisely adjust the current to ensure that the rotor of the motor can rotate synchronously with the rotating magnetic field to maintain a stable operating state.
Fields of application
380V permanent magnet synchronous motors are widely used in various industrial fields, such as conveyor belts, pumps, fans, etc. Its efficient and reliable performance enables it to significantly reduce operating costs in these applications, and it is widely used in many industrial applications due to its simple construction, low maintenance costs, and high vibration resistance.
380V Permanent Magnet Synchronous Motor, welcome to choose SIMO motor.
Great Materials
China Simo Make PMSM motor adopts best materials for stator, rotor and commutator to ensure the perfect performance and high efficiency.
Ordering note
1,Please check product introduction , to confirm the motor type etc before ordering , please note power, voltage, speed ,exciting type ,exciting voltage, structure and mounting etc in the contract.
2,Please note some special requirements for two shaft extensions ,terminal box, testing-speed in the contract.
3,when the customers have some other needs, please contact us before .
