Main Data
Type: PMSM Permanent Magnetic Synchronous Motor
Model1: TCYP5-180L-6
Power: 15kw
Frame size: 180mm
Voltage: 380V 400V 415V
Rated Frequency: 33.3Hz
Cooling Method: IC416
Protection Grade: IP55
Insulation: H 180℃
Speed:1000rpm
Poles: 6P
Efficiency: 94.3%
Power Factor: Cos: 0.9
Weight: 137kg, 186kg
VFD: XBP480T15GB-plus
Introduction
TCYP5-180L-6 is a variable frequency speed regulating three-phase permanent magnet synchronous motor, belonging to the TYP5 series. This series of motors is developed, designed and produced by SIMO Motor. It is a new product with high efficiency, large starting torque and low energy consumption. Its design complies with GB/T 4942.1 and IEC 60034-5 regulations.
It has the following characteristics:
• Permanent magnet rotor: The permanent magnet rotor design makes the motor have higher efficiency and power density than the induction motor.
• High efficiency: It avoids the loss of the rotor excitation system and improves the efficiency by 5-10%.
• High power factor motor: No electric excitation is required, and the power factor can be close to 1.
• Wide speed regulation range: The speed regulation system composed of the variable frequency drive device can maintain high efficiency in the full speed regulation range.
• Large starting torque: The starting torque and overload capacity of the permanent magnet synchronous motor are one power level higher than those of the asynchronous motor.
• Low noise and low vibration: Reasonable slot-pole matching and electromagnetic design make the operating noise lower.
• Beautiful appearance: The motor has beautiful appearance and compact structure.
PMSM manufacturer, welcome to contact with SIMO motor!
Great Materials
China Simo Make PMSM motor adopts best materials for stator, rotor and commutator to ensure the perfect performance and high efficiency.
Ordering note
1,Please check product introduction , to confirm the motor type etc before ordering , please note power, voltage, speed ,exciting type ,exciting voltage, structure and mounting etc in the contract.
2,Please note some special requirements for two shaft extensions ,terminal box, testing-speed in the contract.
3,when the customers have some other needs, please contact us before .

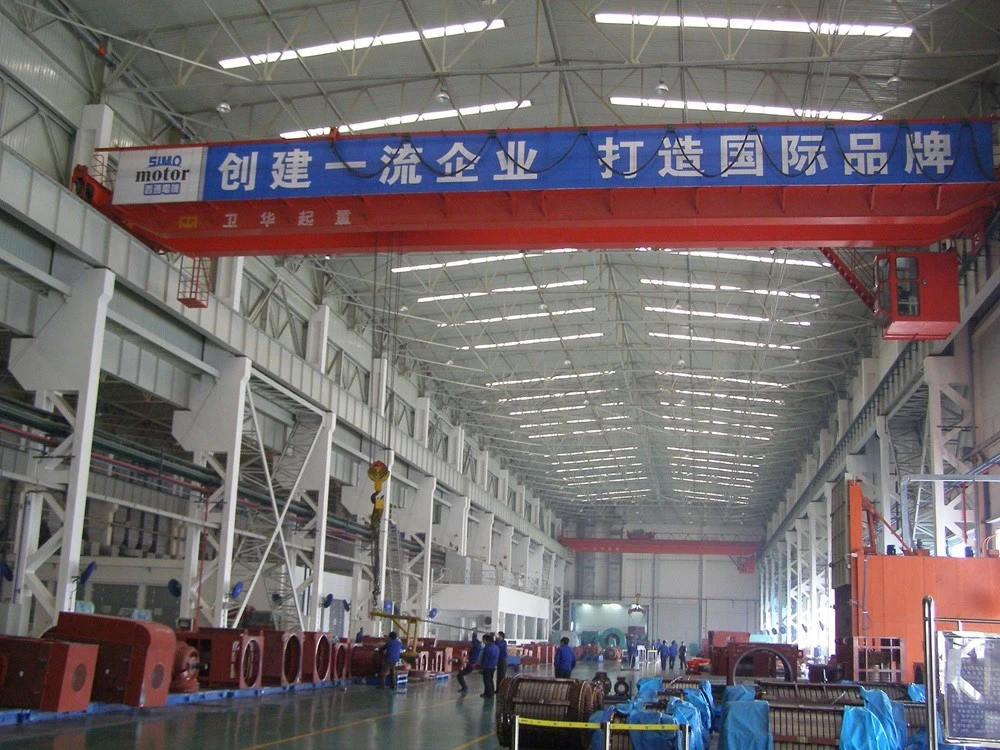

Our Factory
Our free service hotline:0086 18209233121
70
years
We have been working in the industry since 1955
45
PRODUCT SERIES
We have complete motor product series including AC motor, DC motor, PMSM, synchronous motor, explosion proof motor etc.
1100
Employees
We have over 1000 employees to ensure the capability of design, production and quality.
