Brief Introduction

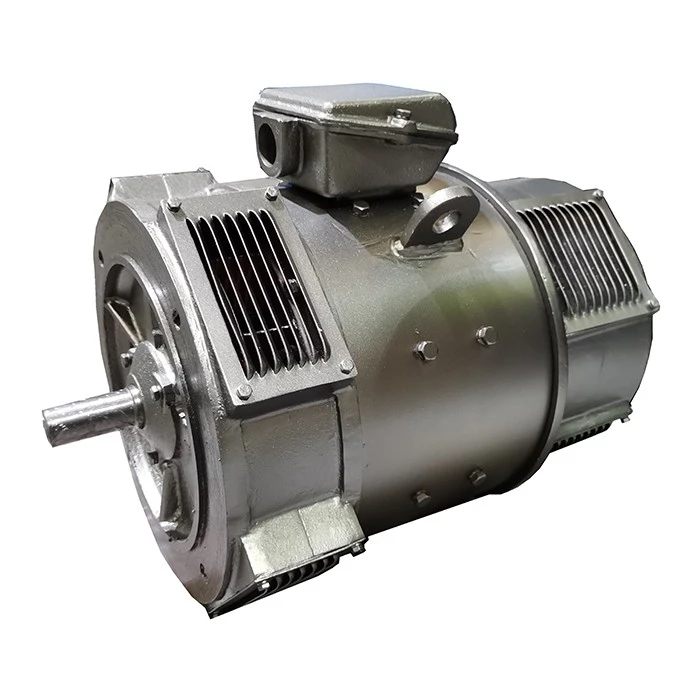

China Simo ZDB small size oil pump electric motor is complies with JB/T 1104-68.This series of motors is divided into 11 frame numbers, every frame number has two iron length. It can be produced into dc motor ,dc generator ,dc adjust voltage generator.
Main Technical Parameters
|
Frame: |
#1~#11 |
|
Power Scope: |
0.4~200KW |
|
Voltage: |
110V/220V |
|
Exciting Mode: |
Shunt Exciting |
|
Speed: |
3000rpm,1500 rpm,1000 rpm,750 rpm,600 rpm |
|
Cooling Method |
IC01 |
|
Protection Grade |
IP23 |
|
Insulation Class |
F(155℃), H(180℃) |
|
Duty: |
S1, S4, S5, S6, S9 |
|
Mounting Type |
IMB3/B35/B5/V1/V15 |
Technical Advanture
ZDB series of oil pump electric motor is special use oil pump DC motor with brushed commutator based on Z2 DC motor design. It requires constant power speed range no larger than 2:1, and overload capacity no larger than 1.5 times of electric traction of rated torque. The basic structure of motor adopts drop-proof uniaxial extension, self-fan cooled structure, applying in general normal operation conditions.
The excitation type is shunt exciting and rated voltage is 110v or 220v . It can be made with functions of anti-humidity, anti salt fog of hot and humid zone (TH) DC motor.
Product Features
ZDB oil pump electric motor has fine speed adjusting characteristic, reliable property and no need of direct AC power supply. It is with internal fan and self-ventilation.
Operation Conditions:
Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).
Wide Application
This oil pump electric motor applies in industries of oil & gas, petroleum, mining etc.
