Brief Introduction
Simo YJTKK medium motors are medium and high voltage variable frequency asynchronous squirrel cage rotor motor. The running speed can be controlled by a inverter. It has wide speed control scope, large output power, stable working performance.
Main Technical Parameters
|
Frame: |
H355~H1000 |
|
Power Scope: |
160~8000kW |
|
Voltage: |
3000V, 3300V, 4160V, 6000V, 6600V, 10000V, 11000V |
|
Frequency: |
5~70Hz, 3~50 Hz |
|
Number of Poles: |
2P, 4P, 6P, 8P, 10P, 12P, 16P |
|
Speed |
3000rpm, 1500rpm, 1000rpm, 750rpm, 600rpm, 500rpm, 370rpm |
|
Cooling Mechod |
IC616, IC666 |
|
Protection Grade |
IP54, IP55 |
|
Insulation Class |
F(155℃), H(180℃) |
|
Duty: |
S1, S4, S5, S6, S9 |
|
Mounting Type |
B3/V1 |

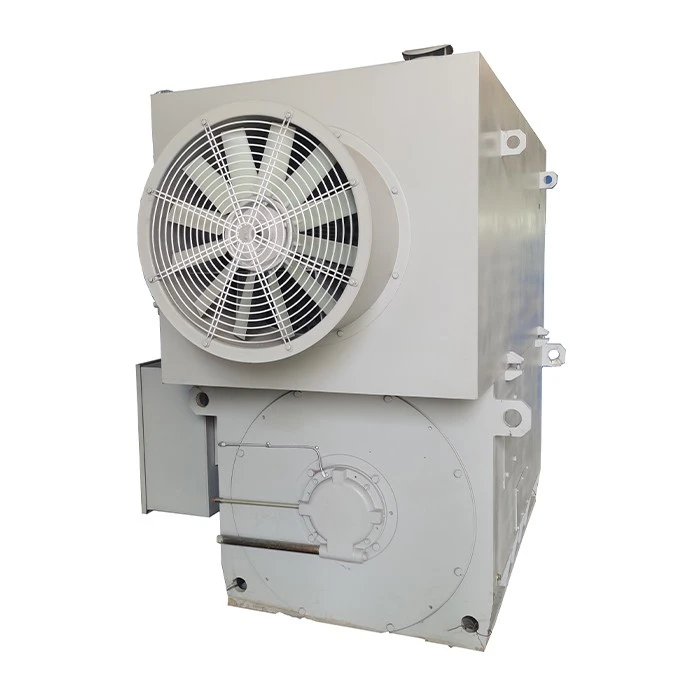

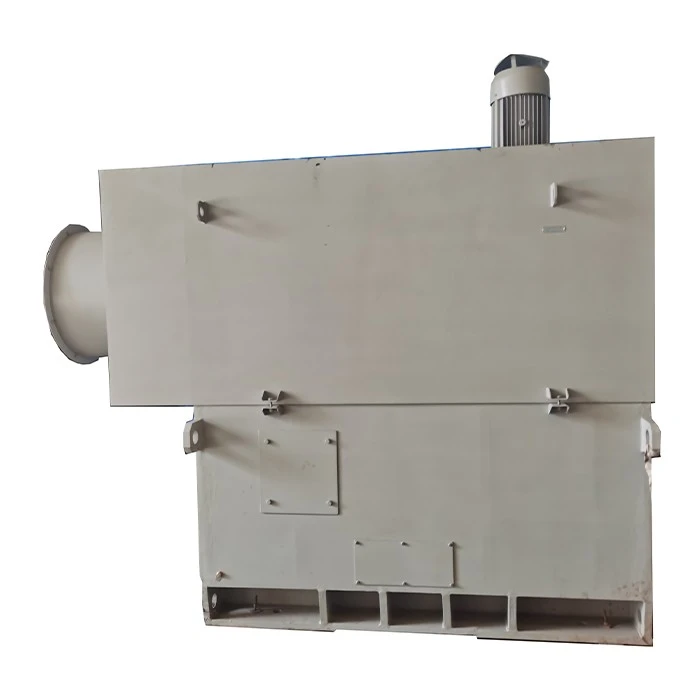

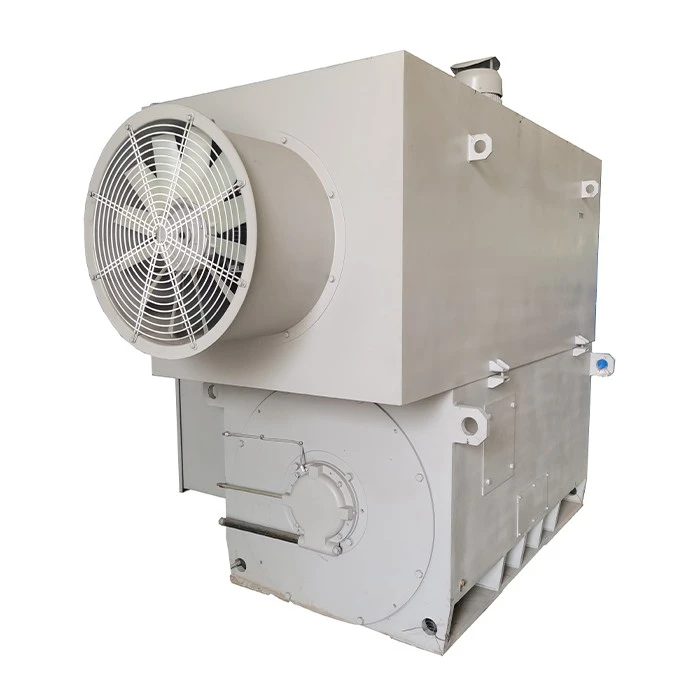

YJTKK Motor Introduction
Simo YJTKK series of medium motors & high voltage electric variable frequency AC motor are a three phase squirrel cage totally enclosed asynchronous motor. The performance is in accordance with the provisions of the standard GB/T 28562, and the motor adopts a box-type structure welded with steel plates. The structure and installation type of this series of motors are, the quota is based on the continuous duty system (S1), the rated frequency of the motor is 50Hz, the rated voltage is 6KV, 10KV, other voltage levels or special requirements, and the user can agree with the user when ordering. From the end of the shaft, the 2-pole motor rotates in a clockwise direction, and if the user needs to rotate in a counterclockwise direction, it must be indicated at the time of ordering.
Advantages
As the best seller in Simo products system, YJTKK medium motors have outstanding advantages of energy saving, good speed control performance, low noise, small vibration, light weight, reliable performance, convenient installation and maintenance.
Application
YJTKK series of medium motors are the widely used in ventilators, compressors, water pumps, crushers, cutting machine tools and other equipment in thermal power station, machinery industry, water conservation, steel, cement and mining industries.
Choose Simo, Choose Quality!
