Products Description

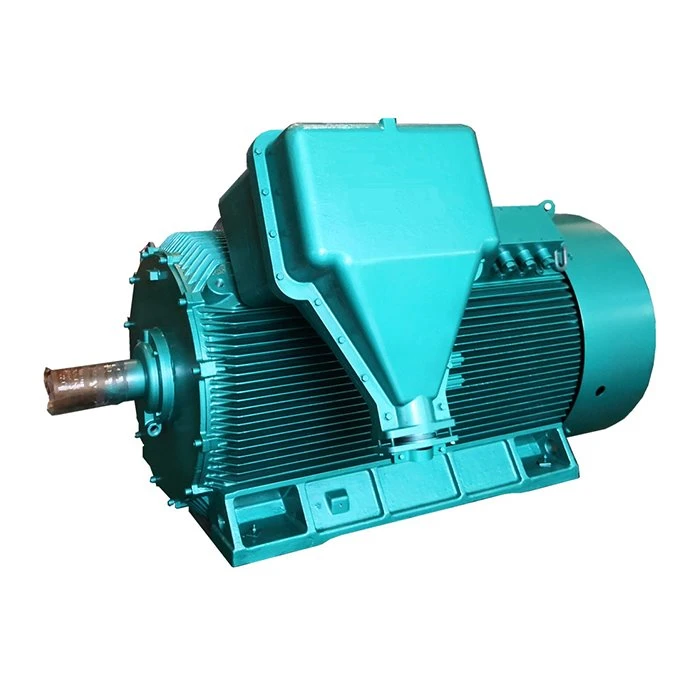

China Simo Y2 series high voltage induction motor (center height H355~560) is a compact enclosed squirrel cage rotor three-phase asynchronous motor. The motor is produced according to the technical conditions of JB/T10444-2004, its protection class is IP54, cooling method is IC411.
It can be used in driving different kinds of machines, like pump, ventilator, compressor, crushers, cutting machine tools and other equipment, and can be used prime power by coal mines, machinery industries, various industrial and mining companies.
Main Technical Parameters
|
Frame: |
H355~H560 |
|
Power Scope: |
160~1600kW |
|
Voltage: |
3000V, 3300V, 4160V, 6000V, 6600V, 10000V, 11000V |
|
Frequency: |
50Hz, 60Hz |
|
Number of Poles: |
2P, 4P, 6P, 8P |
|
Speed |
3000rpm, 1500rpm, 1000rpm, 750rpm |
|
Cooling Mechod |
IC411 |
|
Protection Grade |
IP44, IP54, IP55 |
|
Insulation Class |
F(155℃), H(180℃) |
|
Duty: |
S1, S4, S5, S6, S9 |
|
Mounting Type |
IM B3, IM B35, IMV1, etc |
Technical Advantages
Y2 series of high voltage induction motor is a new generation product based on the company's long-term stable high-voltage three-phase asynchronous motor's experience of design and manufacturing, combined with the latest international standards.
Product Features
This series of motor has advantages of compact structure, light weight, high efficiency, energy-saving, low noise and vibration, high reliability, long service life and convenient installation and maintenance, etc.
Operation Conditions
Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).
Wide Application
This high voltage induction motor is mainly applied in general machinery equipment or other similar machinery equipment, such as rolling mill, winch, blowers, water pump, mill, crusher, grinder applied in petroleum, chemical engineering, coal, power station, metallurgical, textile, medicine, food processing industries.
