Brief Introduction
YRKK 630-10-1000KW motor is a SIMO motor make 11kV or 10kV high-voltage motor wound rotor three-phase asynchronous motor with the advantages of high efficiency, energy saving, low noise and low vibration. The motor adopts F-class insulation structure, the bearing structure is designed according to IP54, and grease lubrication is adopted, and oil can be added and drained without stopping the machine. Its protection grade is IP44 or IP54, the cooling method is IC611, and the structure and installation type are IMB3. The rated frequency of the motor is 50HZ, and the rated voltage is 6KV or 10KV, which is suitable for a variety of voltages and special requirements.
Main Technical Parameters
|
Frame: |
H630 |
|
Power Scope: |
1000kW |
|
Voltage: |
3000V, 3300V, 4160V, 6000V, 6600V, 10kV, 11kV |
|
Frequency: |
50Hz, 60Hz |
|
Number of Poles: |
10P |
|
Speed |
600rpm, |
|
Cooling Mechod |
IC611 |
|
Protection Grade |
IP54, IP55 |
|
Insulation Class |
F(155℃), H(180℃) |
|
Duty: |
S1, S4, S5, S6, S9 |
|
Mounting Type |
B3/V1 |
Related Models:
YRKK 630-10-560kW
YRKK 630-10-630kW
YRKK 630-10-710kW
YRKK 630-10-800kW
YRKK 630-10-900kW

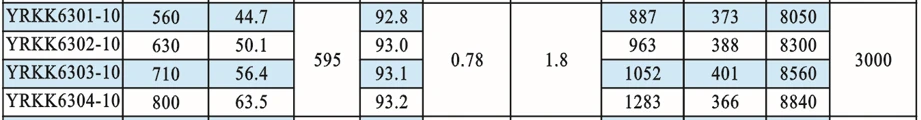

YRKK 10kV high voltage motor 630 frame size motor data sheet

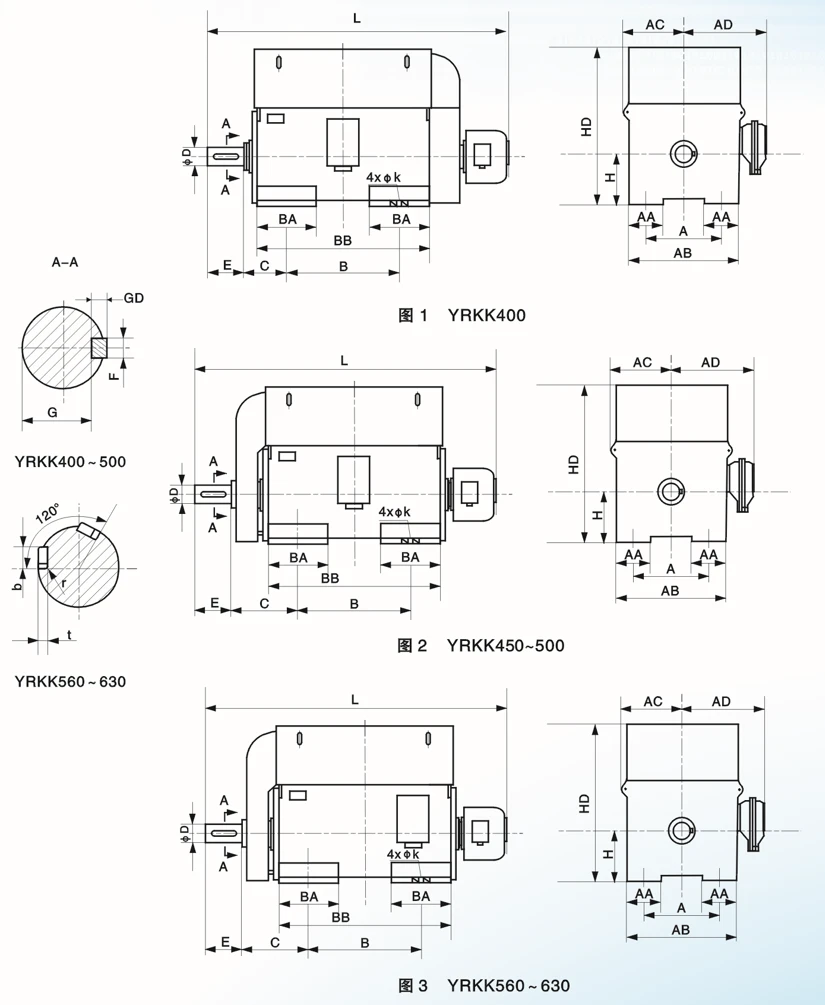

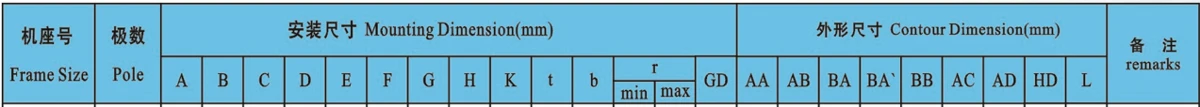

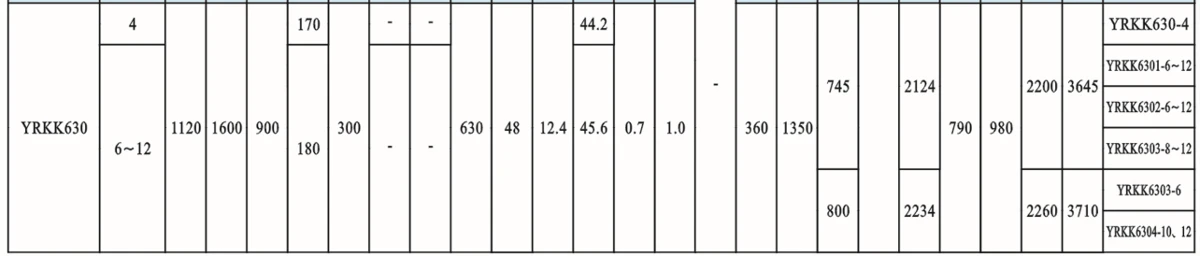

YRKK 10kV high voltage motor catalog dimensions
10kV high voltage motor, Choose Simo, Choose Quality!
