Brief Introduction
YJTFKK 11kv motor series is a high and medium voltage three phase variable frequency squirrel ac motor. It's devided from YKK three phase high voltage motor can be used for driving blowers, pumps and other general machines. The running speed can be controlled by an inverter or VFD. The frequency range is 30~50Hz(rated frequency 50Hz). It has wide speed control scope, large output power, stable working performance.
Main Technical Parameters
|
Frame: |
H355~H1000 |
|
Power Scope: |
160~8000kW |
|
Voltage: |
3kV, 3.3kV, 4160V, 6kV, 6.6kV, 10kV, 11kV motor |
|
Frequency: |
30~70Hz 30~50Hz |
|
Number of Poles: |
2P, 4P, 6P, 8P, 10P, 12P, 16P |
|
Speed |
3000rpm, 1500rpm, 1000rpm, 750rpm, 600rpm, 500rpm, 370rpm |
|
Cooling Method |
IC611 |
|
Protection Grade |
IP54 IP55 |
|
Insulation Class |
F(155℃), H(180℃) |
|
Duty: |
S1, S4, S5, S6, S9 |
|
Mounting Type |
IMB3/IMV1 |

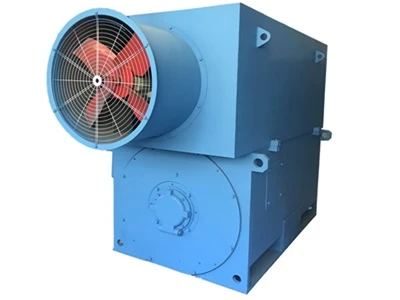

YJTFKK Motor Introduction
YJTFKK 11kV motor is a variable frequency high voltage three phase AC motor with squirrel cage. The cooling method is IC611 cooled by air cooler. The performance is in accordance with the provisions of the standard GB/T 28562, and the motor adopts a box-type structure welded with steel plates. The structure and installation type of this series of motors are, the quota is based on the continuous duty system (S1), the rated frequency of the motor is 50Hz (60Hz also available), the rated voltage is 6KV, 10KV, (4160V, 6600V, 11000V is also available) other voltage levels or special requirements, and the user can agree with the user when ordering.
Advantages
YJTFKK motor has outstanding advantages of energy saving, good speed control performance, low noise, small vibration, light weight, reliable performance, convenient installation and maintenance.
Application
YJTFKK series of motor is the widely used in ventilators, compressors, water pumps, crushers, cutting machine tools and other equipment in thermal power station, machinery industry, water conservation, steel, cement and mining industries.
11Kv motor, Choose Simo, Choose Quality!
