YKK 6kV High Voltage Motor

Simo YKK 6kV high voltage moto is three phase squirrel cage totally enclosed asynchronous motor. As the best seller in Simo products system, YKK motor has outstanding advantages of efficiency, energy saving, lower noise, low vibration, light weight and easy for maintaining. Through several decades of verification by the customers and market in and out of China, SIMO YKK motor is one of the most reliable electric motor for industrial use.

Send Inquiry

Brief Introduction

YKK 355 6kV high voltage motor is a series of medium and high voltage three phase induction AC motor. It is a new generation product based on the SIMO company's long-term stable high-voltage three-phase asynchronous motor's experience of design and manufacturing, combined with the latest international standards.

It can be used in driving different kinds of machinery, such as ventilators, compressors, water pumps, crushers, cutting machine tools, transportation machinery and other equipment, and can be used prime power by coal mines, machinery industries, various industrial and mining companies.

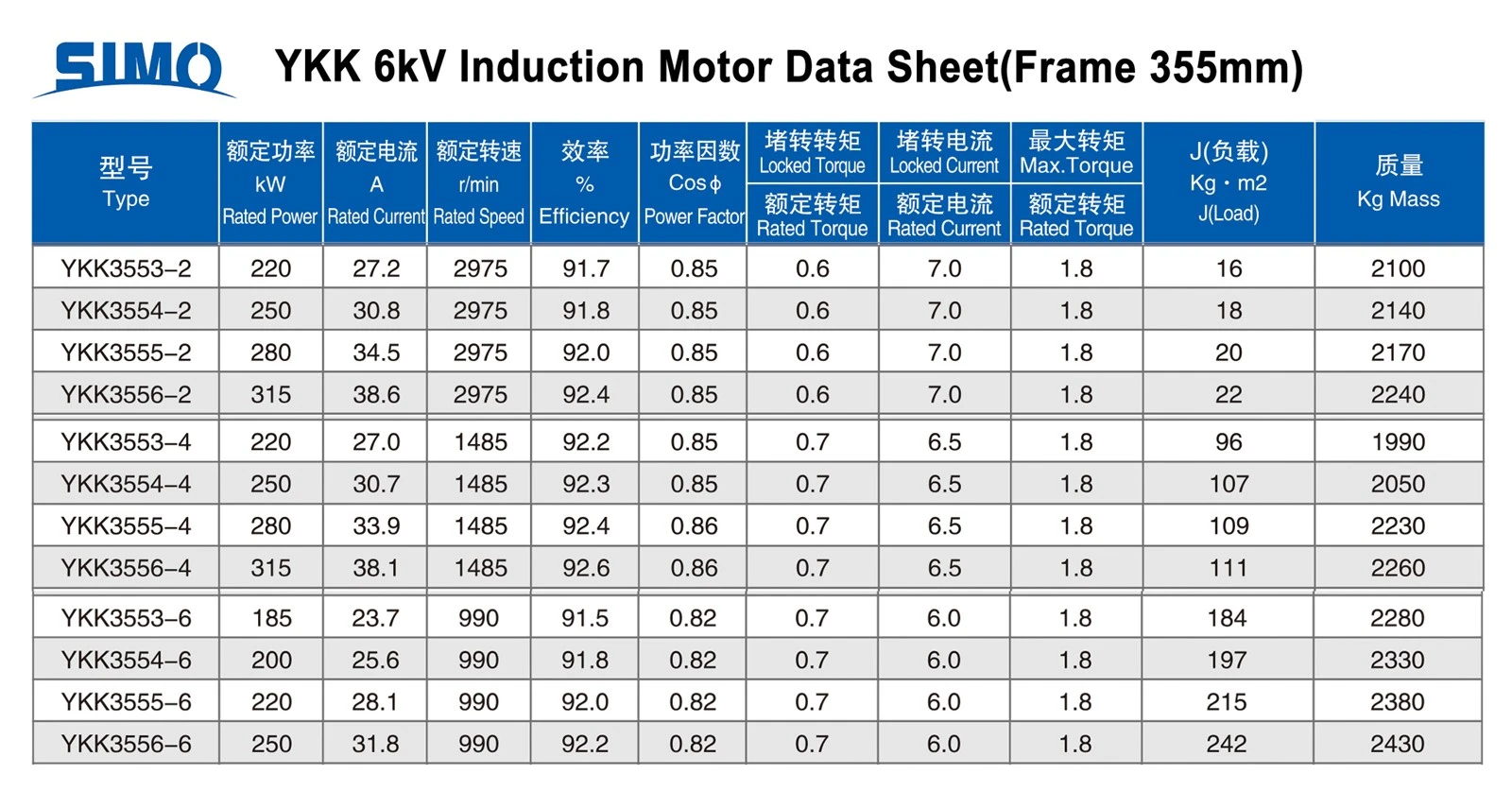

Main Technical Parameters

Frame:	H355
Power Scope:	185kW ~250kW
Voltage:	3000V, 3300V, 4160V, 6000V, 6600V, 10000V, 11000V
Frequency:	50Hz, 60Hz
Number of Poles:	2P, 4P, 6P, 8P, 10P, 12P, 16P
Speed	3000rpm, 1500rpm, 1000rpm, 750rpm, 600rpm, 500rpm, 370rpm
Cooling Mechod	IC611
Protection Grade	IP54, IP55
Insulation Class	F(155℃), H(180℃)
Duty:	S1, S4, S5, S6, S9
Mounting Type	B3/V1
