Main Data
Type: PMSM Permanent Magnetic Synchronous Motor
Model1: TCYP5-200L1-6 Model2: TCYP5-200L2-6
Power: 18.5kw, 22kw Frame size: 200mm
Voltage: 380V 400V 415V 460V Rated Frequency: 33.3Hz
Cooling Method: IC416 Protection Grade: IP55
Insulation: H 180℃ Speed:1000rpm
Poles: 6P 8P Efficiency: 94.6% 94.9%
Power Factor: Cos: 0.9 Weight: 239kg
VFD: XBP480T18.5GB-plus XBP480T22GB-plus

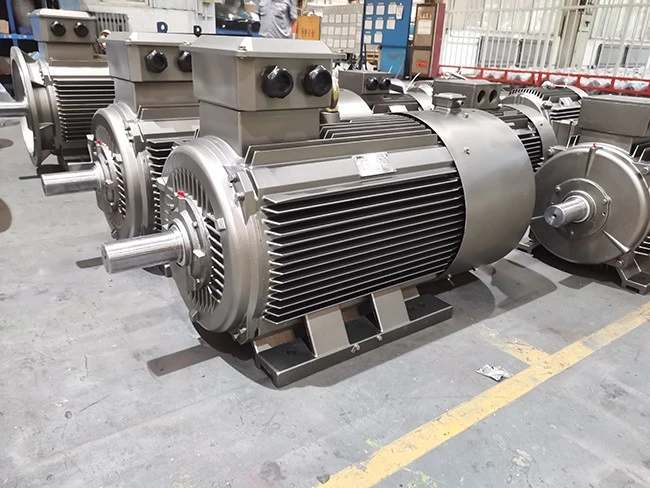

Motor Introduction
TCYP5-200-6 is a variable frequency speed adjusting three-phase permanent magnet synchronous motor, based on design of the TYP5 series. TCYP5-200 series motors is manufactured by China SIMO Motor. It is a new product with high efficiency, large starting torque and low energy consumption. Its design complies with GB/T 4942.1 and IEC 60034-5 regulations.
Advantages Introduction

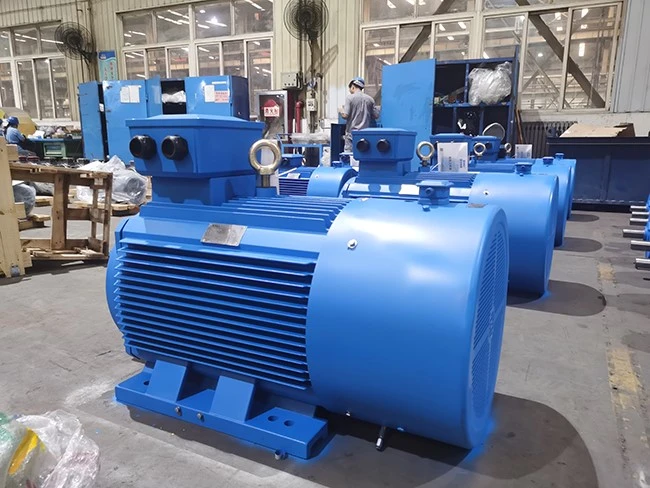

Permanent magnet rotor motor
The permanent magnet rotor design makes the motor have higher efficiency and power density than the induction motor.
High efficiency
It avoids the loss of the rotor excitation system and improves the efficiency by 5-10%.
High power factor
No electric excitation is required, and the power factor can be close to 1.
Wide speed regulation range
CThe speed regulation system composed of the variable frequency drive device can maintain high efficiency in the full speed regulation range.
Large starting torque
The starting torque and overload capacity of the permanent magnet synchronous motor are one power level higher than those of the asynchronous motor.
Low noise and low vibration
Reasonable slot-pole matching and electromagnetic design make the operating noise lower.
Beautiful appearance
The motor has beautiful appearance and compact structure.
Application Scenario
Particularly suitable for industrial applications requiring high efficiency, low noise, and minimal vibration.
Great Materials
China Simo Make PMSM motor adopts best materials for stator, rotor and commutator to ensure the perfect performance and high efficiency.

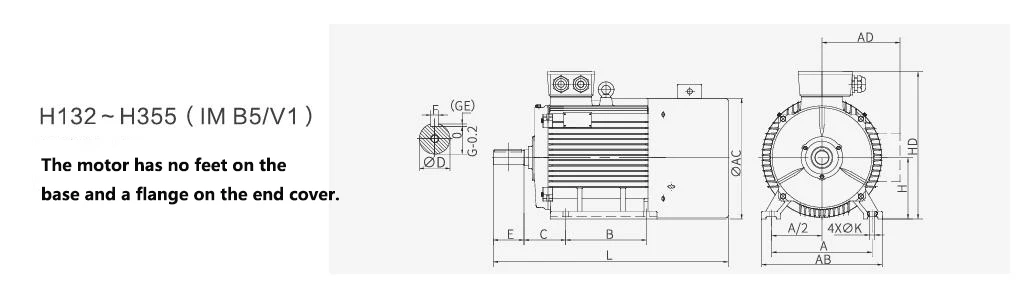

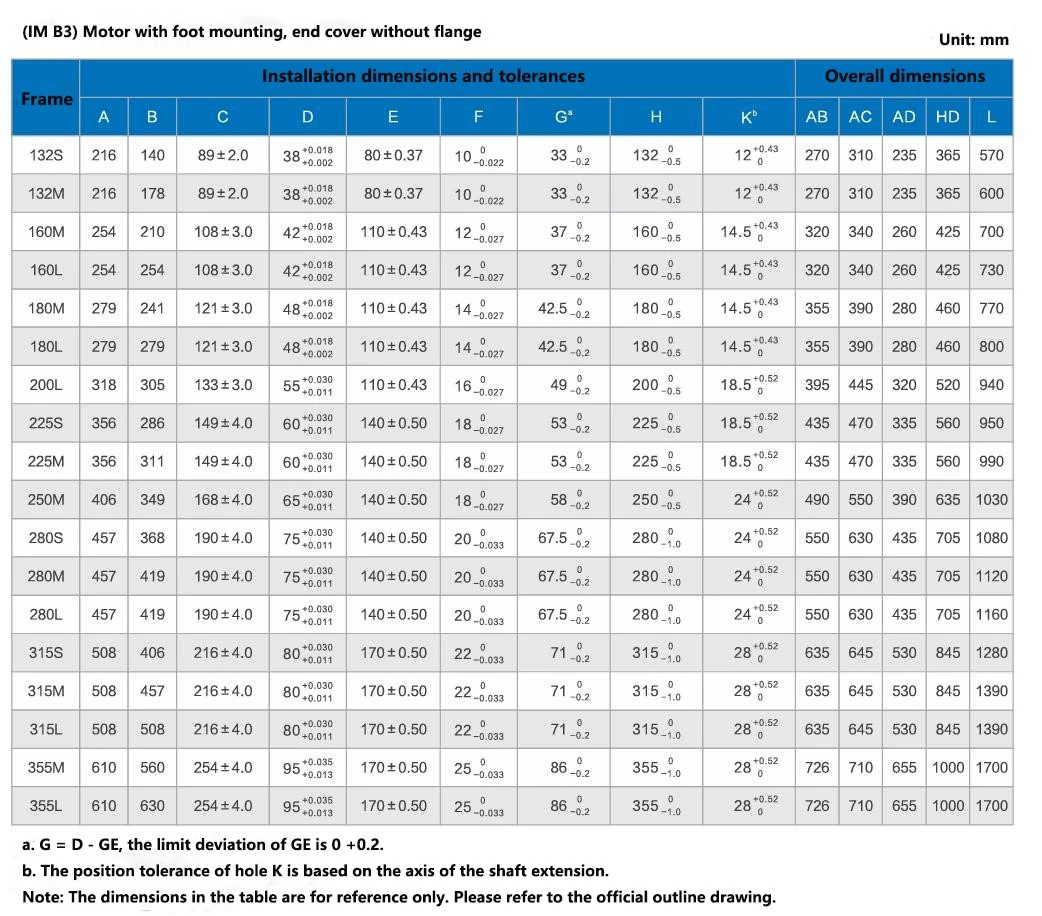

| Model | Rated power (kW) | Synchronous speed (r/min) | Voltage (V) | Rated current (A) | Efficiency (%) | Power factor (cos φ) | Rated torque (N·m) | Rated frequency (Hz) | Number of poles | No-load noise (dB) | Mass (kg) | Compatible frequency converter |
| TCYP5-200L1 | 18.5 | 1000 | 380 | 34.8 | 94.6 | 0.9 | 177 | 33.3 | 6 | 73 | 239 | XBP480T18.5GB-plus |
| TCYP5-200L2 | 22 | 1000 | 380 | 41.3 | 94.9 | 0.9 | 210 | 33.3 | 6 | 73 | 239 | XBP480T22GB-plus |
| TCYP5-200L | 15 | 750 | 380 | 29.1 | 92.9 | 0.89 | 191 | 25 | 8 | 73 | 239 | XBP480T15GB-plus |
Ordering note
Permanent Magnet Rotor Motor
01
Please check product introduction , to confirm the motor type etc before ordering , please note power, voltage, speed ,exciting type ,exciting voltage, structure and mounting etc in the contract.
02
Please note some special requirements for two shaft extensions ,terminal box, testing-speed in the contract.
03
when the customers have some other needs, please contact us before .

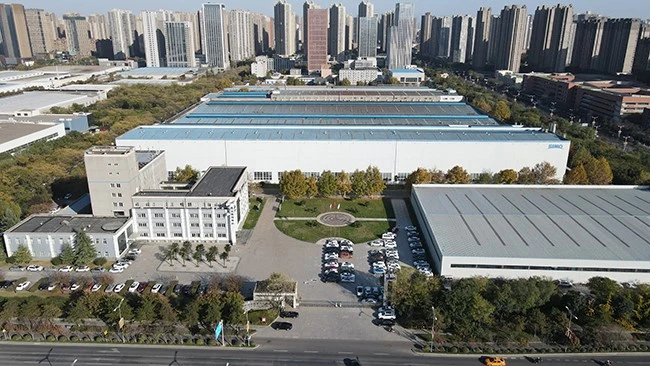

Xi'an Simo Motor Co., Ltd. (formerly Xi'an Simo Motor Factory) is a professional manufacturer of electric motors in China's machinery industry. The motors it produces include large - and medium - sized, high - and low - voltage, AC and DC motors, synchronous motors, high - efficiency motors, and explosion - proof motors. It is a power system provider integrating motor design and manufacturing, mechanical processing, and automation complete engineering.
With a long-standing history
The company was established in 1955 and has a history of 70 years in motor production and sales.
solid expertise
In 2017, it passed the ISO9001 - 2015 quality management system certification of the China Quality Certification Center (CQC). It has also obtained certifications such as the EU "CE", Australian "GEMS", South Korean "KC", Russian "GOST", Chinese "CCC", and energy - saving certification. All explosion - proof motors have obtained explosion - proof certificates, "CCC" mandatory product certification certificates, and mining product safety mark certificates.
Simo Motor holds over 120 invention patents for its products. It has 34 major product series, including more than 1,800 sub - categories and a total of over 19,500 specifications. The power range is from 0.55 kilowatts to 25,000 kilowatts.
The main motor products include YX, YXKK, YXKS series high - efficiency high - voltage motors; YR, YRKK, YRKS wound high - voltage motors; YE3 high - efficiency, YE4, YE5 ultra - high - efficiency series asynchronous motors; YVFE2, YVFE3, YVFE4, YVFE5 series high - efficiency variable - frequency speed - regulating motors; YBX3, YBX4, YBK3, YBF3, YBBP series explosion - proof high - and low - voltage asynchronous motors; T, TD, TK, TDMK series synchronous motors; and Z2, Z4, Z series DC motors.
These products are widely used in fields such as environmental protection, power, coal, petroleum, mining, metallurgy, railways, transportation, chemical industry, agriculture, water conservancy, aviation, navigation, and high - tech. It is a designated motor supporting manufacturer for China Railway Corporation and a qualified supplier for General Electric (GE) of the United States.
Simo Motor has an advanced R & D team, constantly improving the efficiency and quality of its motors. It supports motor customization services from all over the world and across the country. At the same time, it has a perfect after - sales service system, helping customers solve after - sales problems through multiple online and offline channels.
