Overview
AC Three-Phase Synchronous Motor (1250KW ) is suitable for driving ventilators, water pumps, motor-generator sets, and other general machinery.
Rated voltage: 10000V, can be customized to 6600V or other voltages as per user requirements.
Rated power factor: 0.9 (leading) .
The motor allows full-voltage direct starting , with the rotor circuit connected in series with a starting resistor 10 times the resistance of the field winding during startup.
This series of motors complies with the relevant provisions of the Chinese National Standard GB755 (Rating and Performance of Rotating Electrical Machines ).
Product model of Simo Motor
| T1250-4/1180 | 1250KW 1500RPM |
| T1250-6/1180 | 1250KW 1000RPM |
| T1250-8/1180 | 1250KW 750RPM |
| T1250-10/1430 | 1250KW 600RPM |
The meaning of type
T: Synchronous Motor
1250: Rated power(KW)
-10: No. of poles
/1430: stator core outer diameter (mm)
Technical Specifications
Stator Outer Diameter: 1180mm - 1730mm
Power Rating: 800kW - 10,000kW
Number of Poles: 4P, 6P, 8P, 10P
Insulation Class: 155 (F)
Rated Voltage: 6kV, 10kV (Customizable upon request)
Mounting Type: IM 7311
Protection Class: IP20
Cooling Method: IC01, IC37

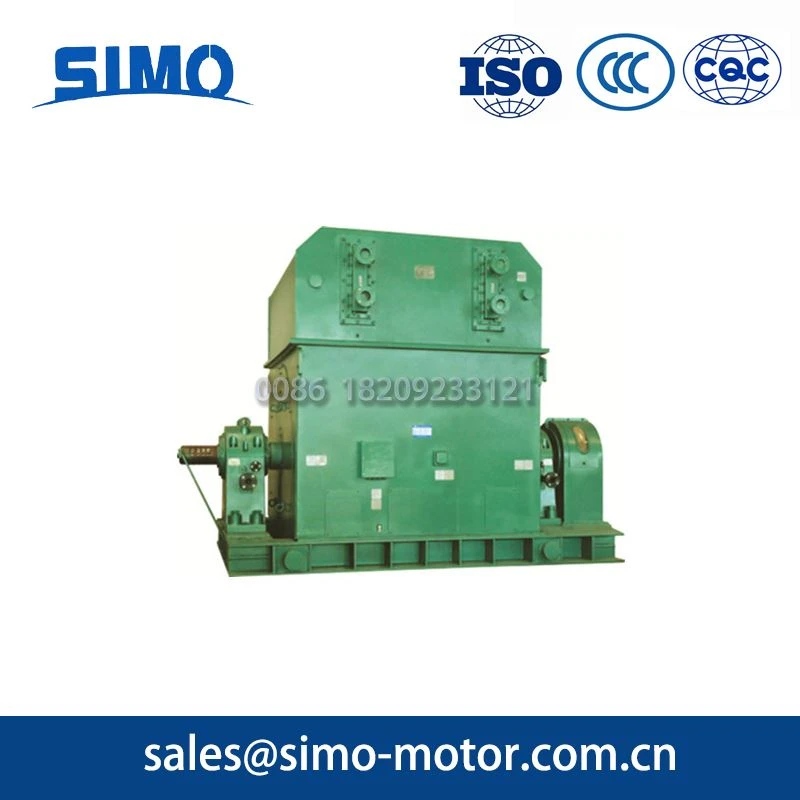

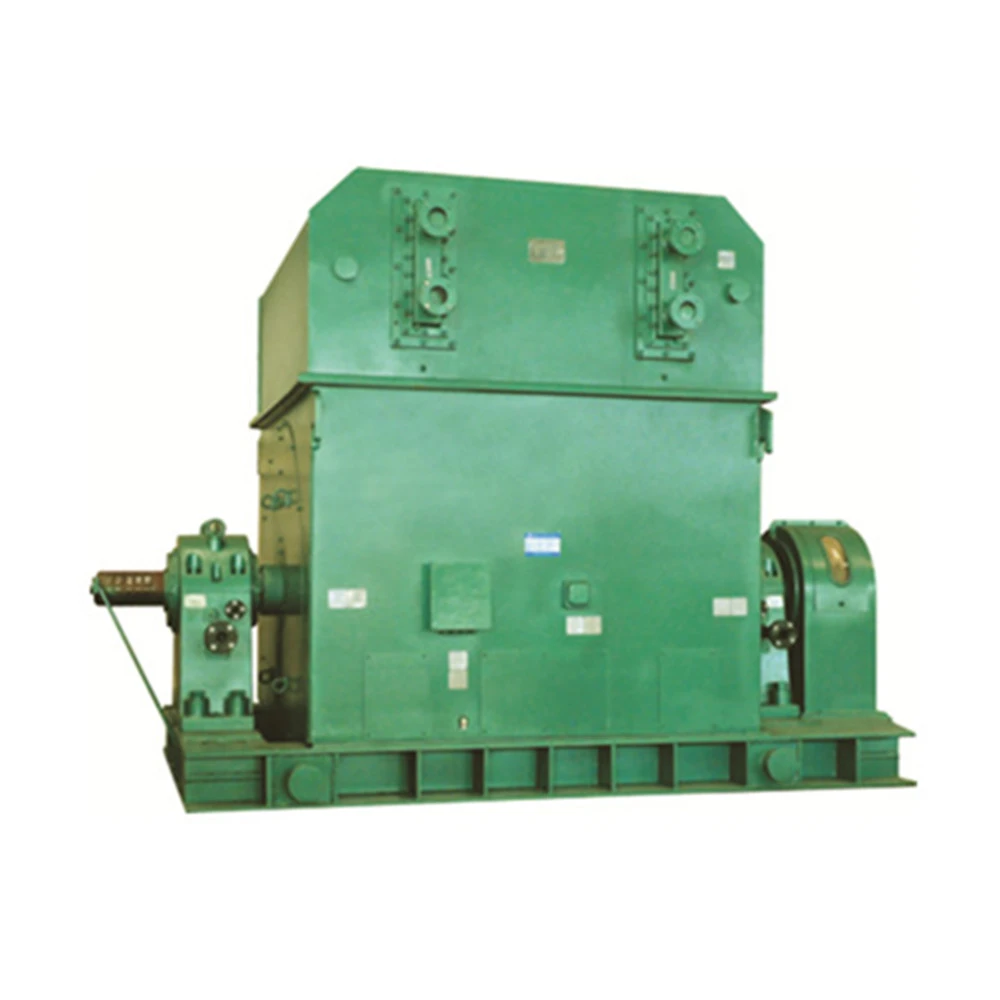

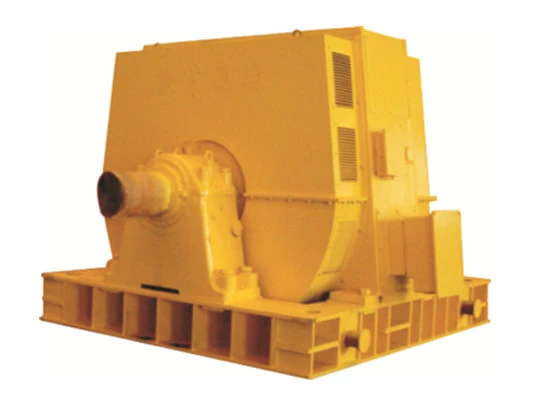

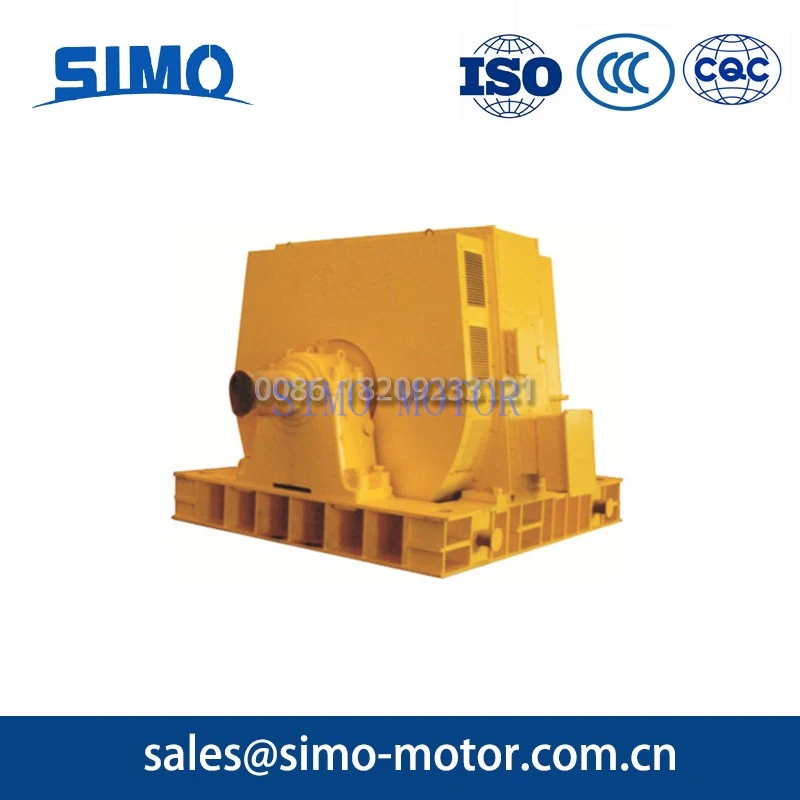

AC Three-Phase Synchronous Motor 1250KW
Technical Advantages
This series of motors is developed by our company, featuring high rotational speed and allowing direct full-voltage starting. During startup, the rotor circuit should be connected with a starting resistor 10 times the resistance of the field winding.
01
Operating Conditions
Ambient air temperature: -15°C to +40°C; Altitude: ≤1 km; Average monthly relative humidity (at 25°C): ≤90%.
02
Product Features
It offers high torque and constant speed, maintaining a stable synchronous speed even under drastic load variations.
03
Wide Applications
Primarily used for driving fans, pumps, motor-generator sets, and other general-purpose machinery.
