Brief Introduction

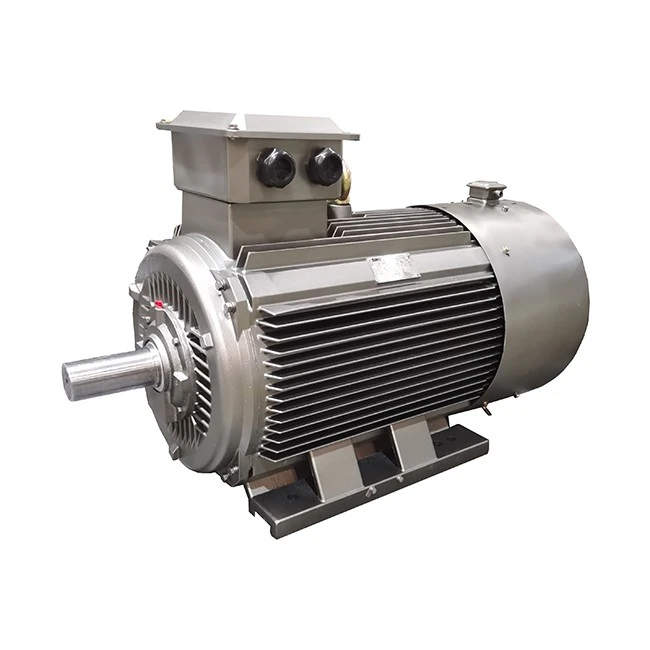

YVFE5 2

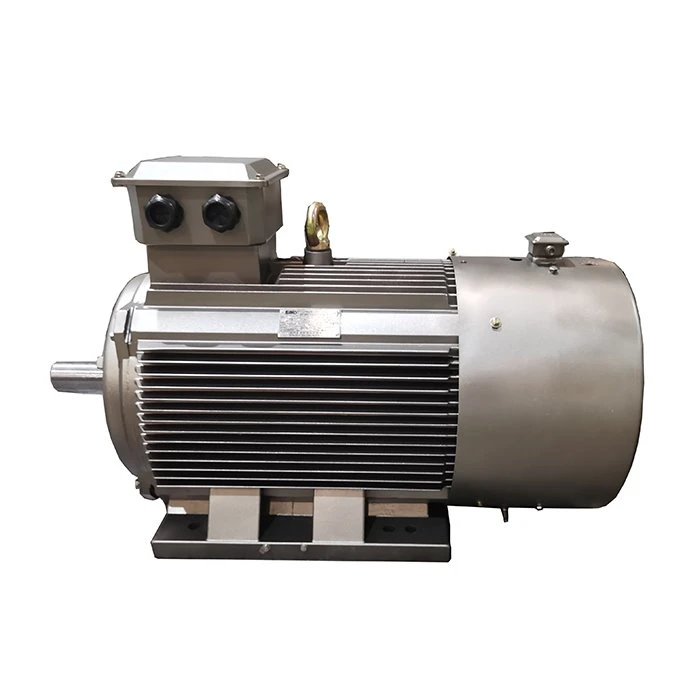

YVFE5 Energy Saving Motor

YVFE5 series energy saving motor is variable frequency and speed-regulating three phase asynchronous motor derived from YE5 series motor with ultra high efficiency motor, which could completely replace YVFE2, YVFE3, YVFE4 series low voltage variable frequency speed-regulating three-phase asynchronous motors.

Main Technical Parameters

Frame:	H80~H450
Power Scope:	0.18KW~1000KW
Voltage:	380V, 400V, 415V, 460V, 490V, 660V, 690V,1140V
Frequency:	5~70Hz, 3~100Hz
Number of Poles:	2P, 4P, 6P, 8P,10P
Speed:	3000rpm, 1500rpm, 1000rpm, 750rpm,600rpm
Cooling Method	IC416
Protection Grade	IP55
Insulation Class	F(155℃), H(180℃)
Duty:	S1, S4, S5, S6, S9
Mounting Type	B3/ B5/ B35/ V1
Standard:	IEC
Efficiency Grade:	IE5

YVFE5 Motor Introduction

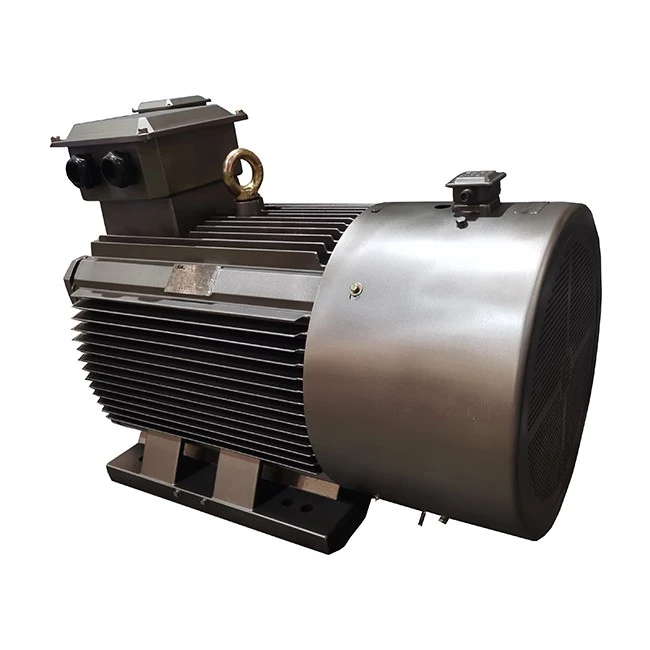

YVFE5 Energy Saving Motor

YVFE5-series energy saving motor is variable frequency and speed-regulating three phase asynchronous motor derived from YE5 series motor with ultra high efficiency, which could completely replace YVFE2, YVFE3, YVFE4 series motors. The technical data meets GB/T 755"Rotating Electrical Machines-Ratings and Performance". The cooling method is IC416 and the efficiency meets with IE5 IN GB/T 32891.2-2019"Rotary Motor Efficiency Classification(IE Code) Part 2: Variable Speed AC Motor"

The Simo YVFE5 energy saving motor adopts forced ventilation of the axial flow fan to ensure that the temperature rise of the motor does not exceed the specified value during long-term operation with low-speed constant torque. At the same time, this motor can guarantee the overload ability of the motor at high frequency, and can maintain constant torque output at low frequency.

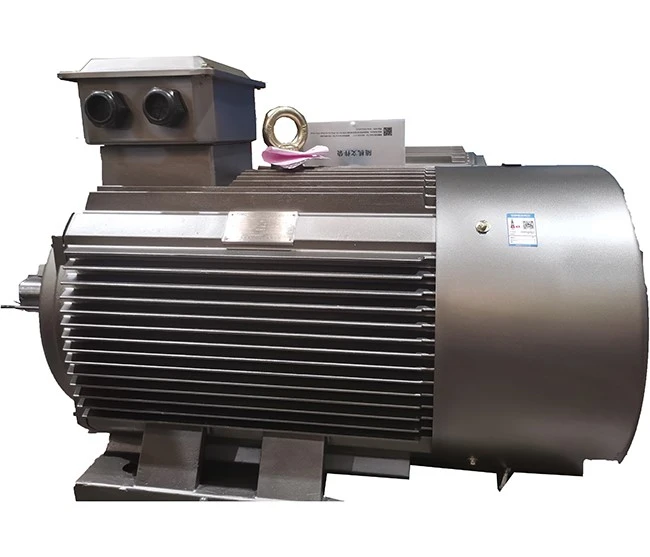

YVFE5 5

Advantages

The speed regulating systems connected frequency converter and YVFE5 series high-efficiency variable frequency speed-regulating three-phase asynchronous motor, compared with other speed regulating systems, have the advantages of significant energy saving effect, good speed regulating performance, wide speed range, low noise, low vibration, easy equipment with various inverters at home and abroad.

Operation condition

Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).

Manufacturer Introduction

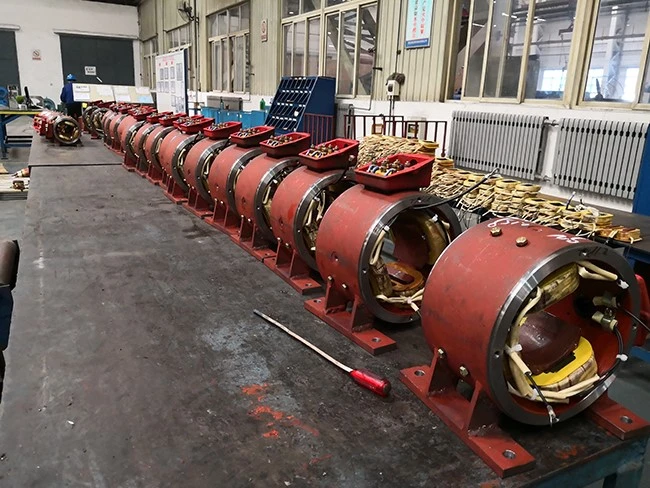

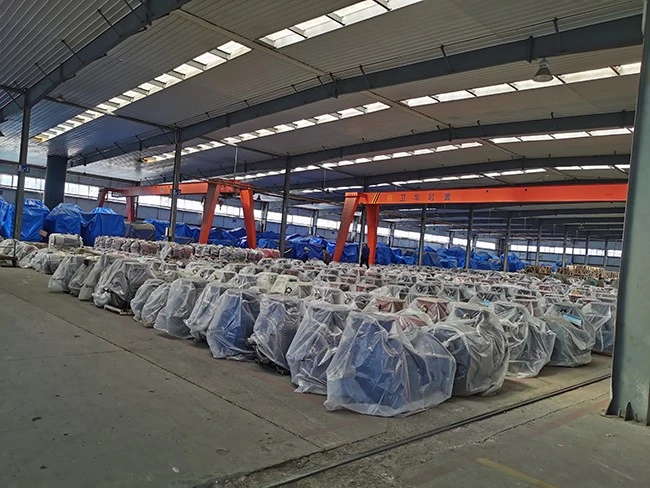

Factory Profile

The company was established in 1955 and has a history of 70 years in motor production and sales. In 1995, Simo Motor was the first in the motor industry to obtain the ISO9001 - 1994 quality management system certification. In 2017, it passed the ISO9001 - 2015 quality management system certification of the China Quality Certification Center (CQC). It has also obtained certifications such as the EU "CE", Australian "GEMS", South Korean "KC", Russian "GOST", Chinese "CCC", and energy - saving certification. All explosion - proof motors have obtained explosion - proof certificates, "CCC" mandatory product certification certificates, and mining product safety mark certificates.

Application

The energy saving motor can be widely used for driving blowers, pumps, compressors, heating equipment in light industry, textile, metallurgy, chemical industry, steel, machine tools, environment protection engineering and other industries which need constant torque, constant power speed, energy-saving or speed control.
