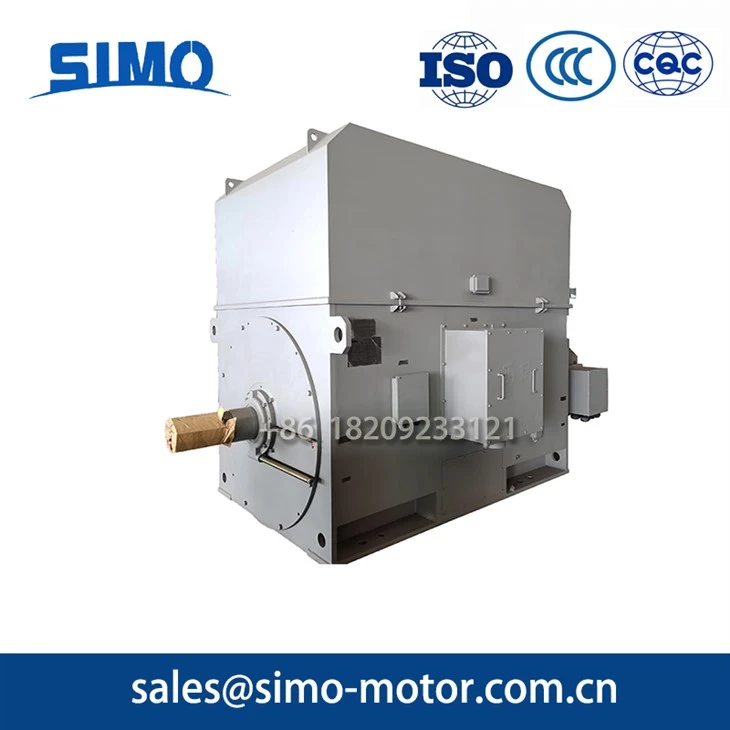

High Voltage Slip Ring Motor

YRKS 4501-4-560KW motor is a SIMO motor make 6kV or 10kV high-voltage motor wound rotor three-phase asynchronous motor with the advantages of high efficiency, energy saving, low noise and low vibration. The motor adopts F-class insulation structure, the bearing structure is designed according to IP54, and grease lubrication is adopted, and oil can be added and drained without stopping the machine. Its protection grade is IP54 , the cooling method is IC81W/IC86W, and the structure and installation type are IMB3. The rated frequency of the motor is 50HZ, and the rated voltage is 6KV or 10KV, which is suitable for a variety of voltages and special requirements.

This series of motor is mainly applied in general machinery equipment or other similar machinery equipment, such as rolling mill, winch, blowers, water pump, mill, crusher, grinder applied in petroleum, chemical engineering, coal, power station, metallurgical, textile, medicine, food processing industries.

  Related Models:

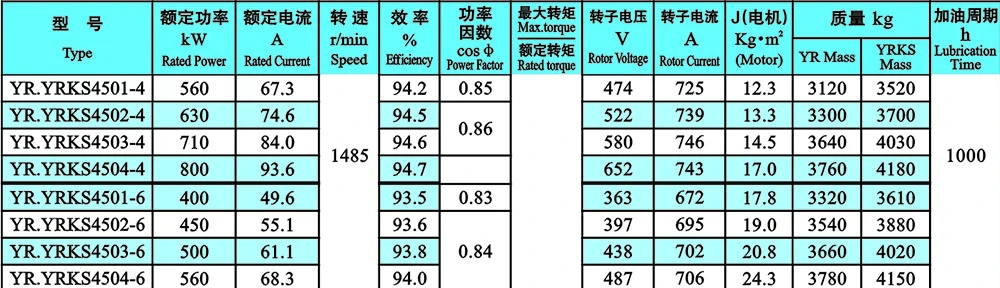

  YRKS4501-4-560kW   YRKS4502-4-630kW    YRKS4503-4-710kW    YRKS4504-4-800kW      YRKS4501-6-400kW

  YRKS4502-6-450kW   YRKS4503-6-500kW    YRKS4504-6-560kW

INTRODUCTION OF  SIMO MOTOR  FACTORY

10kV high voltage motor, Choose Simo, Choose Quality!
