Brief Introduction
Simo YRKK series of three phase squirrel cage motor is water cooled medium high voltage winding rotor three-phase asynchronous motor with slip ring, which can adjust starting torque and starting current through adjust rotor external connected additional resistance. The motor adopts box-type steel plate welding structure with light weight and good rigidity.
Main Technical Parameters
|
Frame: |
H355~1120 |
|
Power Scope: |
200~9000kW |
|
Voltage: |
3000V, 3300V, 4160V, 6000V, 6600V, 10000V, 11000V |
|
Frequency: |
50Hz, 60Hz |
|
Number of Poles: |
2P, 4P, 6P, 8P, 10P, 12P, 14P,16P |
|
Speed |
3000rpm, 1500rpm, 1000rpm, 750rpm, 600rpm, 500rpm,370rpm |
|
Cooling Mechod |
IC81W IC86W |
|
Protection Grade |
IP54, IP55 |
|
Insulation Class |
F(155℃), H(180℃) |
|
Duty: |
S1, S4, S5, S6, S9 |
|
Mounting Type |
B3/V1 |

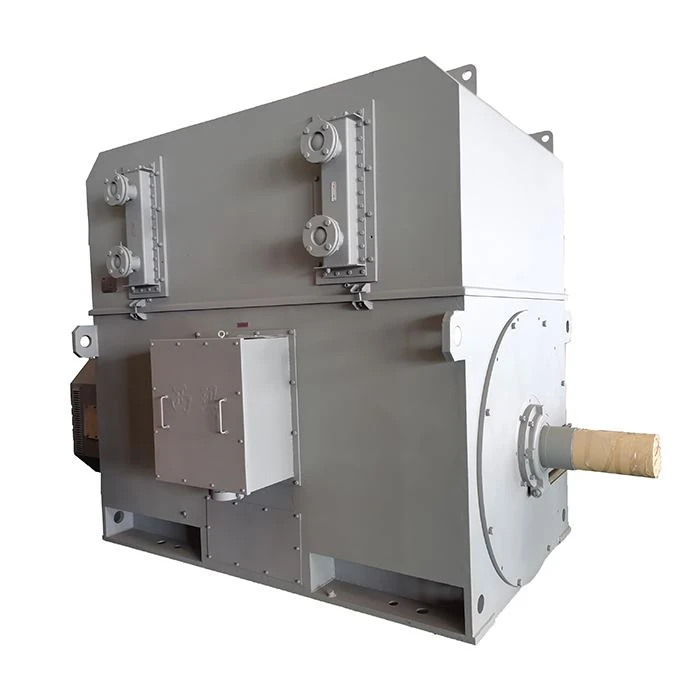

YRKS Motor Introduction
Simo YRKK series of three phase squirrel cage motor is water cooled medium high voltage winding rotor three-phase asynchronous motor with slip ring, which can adjust starting torque and starting current through adjust rotor external connected additional resistance. The motor adopts box-type steel plate welding structure with light weight and good rigidity.
Product Features
YRKS three phase squirrel cage motor has advantages of low temperature rising, compact structure, light weight, high efficiency, energy-saving, low noise and vibration, high reliability, long service life and convenient installation and maintenance, etc.
Through several decades of verification by the customers and market in and out of China, Simo brand YRKS motor is proved to be one reliable electric motor for industrial use.
To meet with different clients' needs, the motors can be made into foot mounting or vertical mounting, insulation class H, double shaft ends, TH3, plateau and other situations.
Operation condition
Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).
Application
YRKS three phase squirrel cage motor is mainly applied in general machinery equipment or other similar machinery, such as rolling mill, winch, blowers, water pump, mill, crusher, grinder applied in petroleum, chemical engineering, coal, power station, metallurgical, textile, medicine, food processing industries. More application details, click here.
Choose Simo, Choose Quality!
