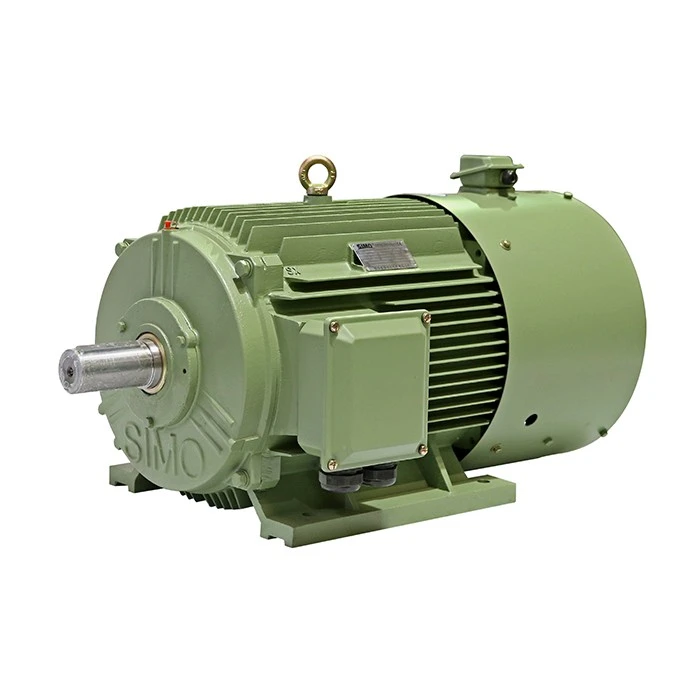

YVFE3 Ac Motor with Vfd

Brief Introduction YVFE3 series ac motor with vfd is a variable frequency and speed-regulating three phase asynchronous motor derived from YE3 series motor, which could completely replace YJTG, YVF2 -series low-voltage variable frequency speed-regulating three-phase asynchronous motors. Main...

Send Inquiry

Brief Introduction

YVFE3 series ac motor with vfd is a variable frequency and speed-regulating three phase asynchronous motor derived from YE3 series motor, which could completely replace YJTG, YVF2 -series low-voltage variable frequency speed-regulating three-phase asynchronous motors.

Main Technical Data

Frame:	H80~H450
Power Scope:	0.18KW~1000KW
Voltage:	380V, 400V, 415V, 460V, 490V, 660V, 690V,1140V
Frequency:	5~70Hz, 3~100Hz
Number of Poles:	2P, 4P, 6P, 8P,10P
Speed:	3000rpm, 1500rpm, 1000rpm, 750rpm,600rpm
Cooling Method	IC416
Protection Grade	IP55
Insulation Class	F(155℃), H(180℃)
Duty:	S1, S4, S5, S6, S9
Mounting Type	B3/ B5/ B35/ V1
Standard:	IEC
Efficiency Grade:	IE3

YVFE3 Motor Introduction

Simo YVFE3 ac motor with vfd adopts forced ventilation of the axial flow fan to ensure that the temperature rise of the motor does not exceed the specified value during long-term operation with low-speed constant torque. At the same time, this motor can guarantee the overload ability of the motor at high frequency, and can maintain constant torque output at low frequency.

The speed regulating systems connected frequency converter and YVFE3 series high-efficiency variable frequency speed-regulating three-phase asynchronous motor, compared with other speed regulating systems, have the advantages of significant energy saving effect, good speed regulating performance, wide speed range, low noise, low vibration, easy equipment with various inverters at home and abroad.

Operation condition

Ambient temperature is -15℃~+40℃; Altitude ≤1KM; and monthly average air humidity ≤90% (If temperature is 25℃).

Application

YVFE3 series ac motor with vfd can be widely used in light industry, textile, metallurgy, chemical industry, steel, machine tools, environment protection engineering and other industries which need constant torque, constant power speed, energy-saving or speed control.
