Products Model
| Model | Product Purpose |
| YTP160M2-2A(B) | Air Compressor |
| YTP112M-4T | Air Compressor |
| YTP90S-4A | Air Compressor |
| YTP112M-4-TH | Rectifier Cabinet Ventilation Motor for Diesel-Electric Locomotive (AC-DC-AC Drive) |
Products Description
YTP160M2-2
2: Number of Poles (of Motor)
2: Iron Core Length Code
M: Frame Length Code
160 (MM): Center Height (MM)
P: Dedicated for Accessories or Specific for Accessories
T: Railway Transportation
Y: AC Motor
AC auxiliary motors specifically designed for railway locomotives and EMUs are used in diesel and electric locomotives to drive hydraulic pumps, blowers, axial fans, cooling fans, air compressors, and other auxiliary machinery.
These motors comply with the Chinese railway standard "Basic Technical Specifications for Three-Phase Induction Motors of Rolling Stock" TB/T1608 or other specific technical requirements. They are designed to withstand the impact and vibration encountered during normal operation of locomotives and EMUs, and can operate reliably when the rolling stock is exposed to rain, snow, wind, and sand. They are suitable for ambient temperatures ranging from -40°C to 50°C (or as specially required) and altitudes not exceeding 2500m (or as specially required).
The basic enclosure protection rating is IP44, but it can also be manufactured to other protection ratings such as IP54 or IP55 according to user requirements.
The motor structure and basic mounting arrangement are IMB3, IMB35, and IMV1. Other mounting arrangements can also be manufactured based on user needs.
When viewed from the shaft extension end, the motor terminal box is located on the right side of the frame. It can also be manufactured to be located on the left side or the top of the frame as required by the user.
The motor's rated duty cycle is S1 or S4.
The motor's rated frequency is 50Hz, and its rated voltage is 380V. Special rated voltage and frequency points can also be manufactured according to user requirements.
Oil filling and draining devices can be provided based on user needs.
A speed measuring device can be provided based on user needs.
Model Parameter Table
| Motor Model | Rated Power (kW) | Rated Voltage (V) | Rated Frequency (Hz) | Rated Current (A) | Rated Speed (r/min) | Insulation Class | Protection Class | Weight (kg) |
| YTP160M2-2A(B) | 15 | 278~460 | 50 | 40.6~30.6 | 2850~2950 | F | IP54 | 152 |
| YTP112M-4T | 5 | 360~450 | 50 | 11.3~10.6 | 1410~1445 | F | IP54 | 47 |
| YTP90S-4A | 1.1 | 240~480 | 43~100 | 1.6~2.1 | 1240~2910 | F | IP54 | 25 |
| YTP90S-4B | 1.1 | 240~480 | 43~100 | 1.6~2.1 | 1240~2910 | F | IP54 | 25 |
| YTP112M-4-TH | 5.5 | 400 | 100 | 10.5 | 2950 | H | IP55 | 47 |
why choose us

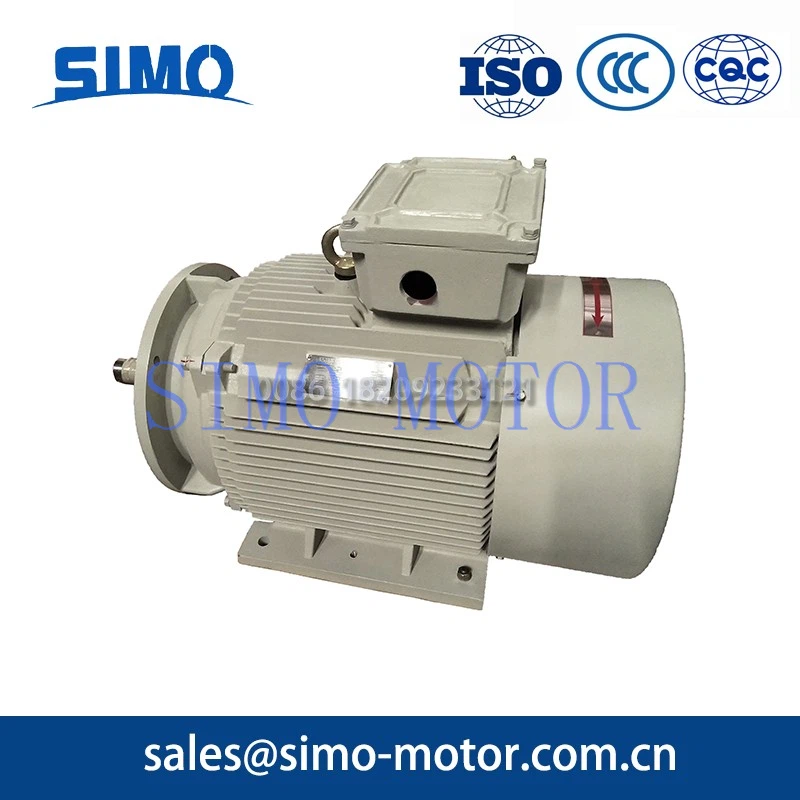

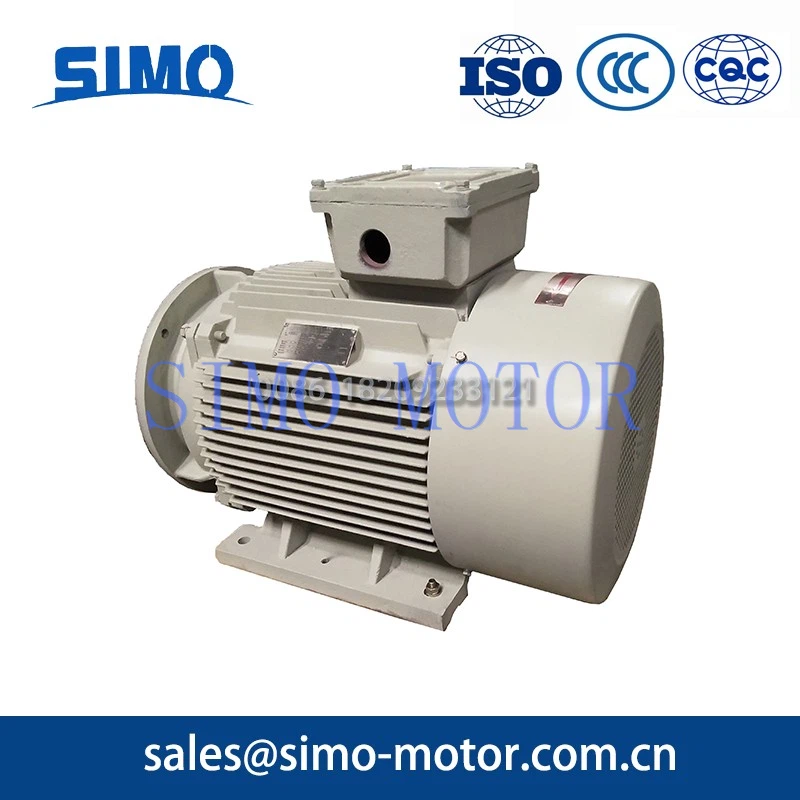

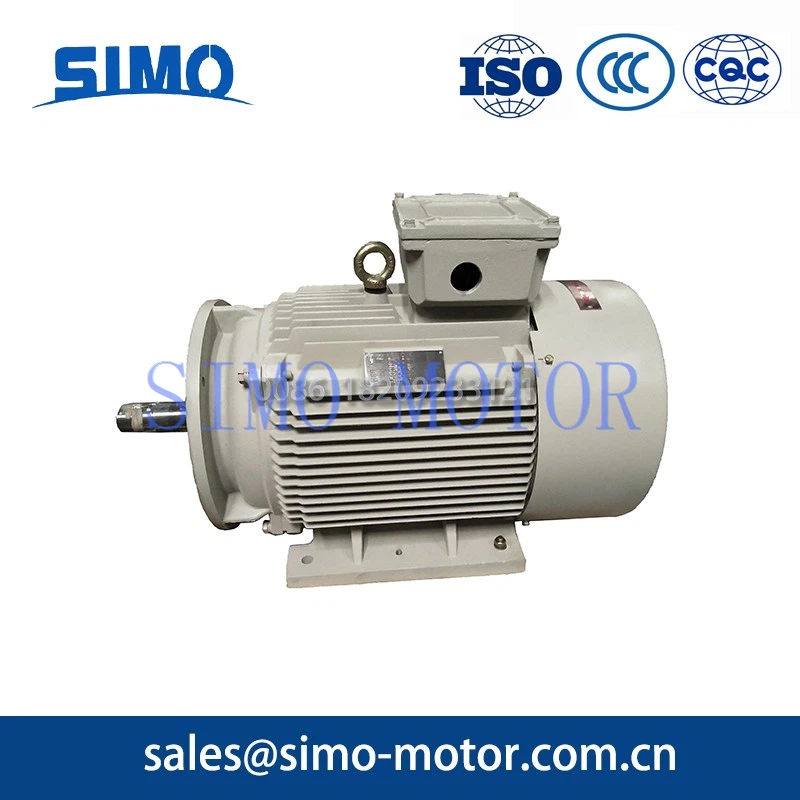

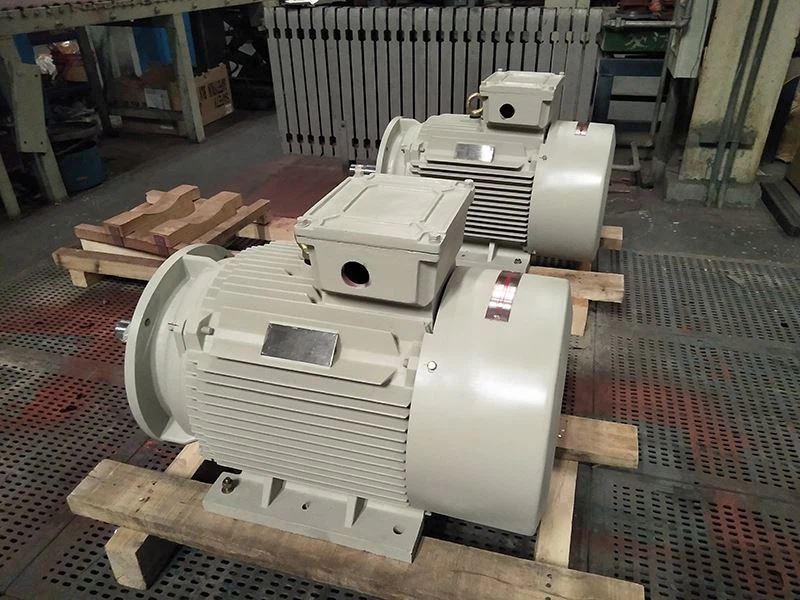

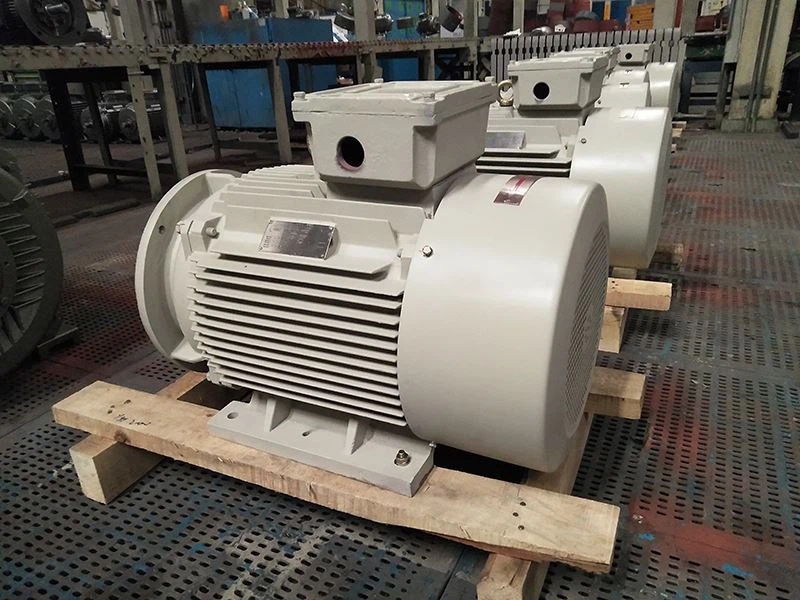

Special AC Auxiliary Motor for Railway Locomotives and EMUs
why choose our products
Xi'an Simo Motor Co., Ltd. (formerly Xi'an Simo Motor Factory) is a professional manufacturer of electric motors in China's machinery industry. The motors it produces include large - and medium - sized, high - and low - voltage, AC and DC motors, synchronous motors, high - efficiency motors, and explosion - proof motors. It is a power system provider integrating motor design and manufacturing, mechanical processing, and automation complete engineering.
The company was established in 1955 and has a history of 70 years in motor production and sales.
Simo Motor holds over 120 invention patents for its products. It has 34 major product series, including more than 1,800 sub - categories and a total of over 19,500 specifications. The power range is from 0.55 kilowatts to 25,000 kilowatts.
