Brief Introduction

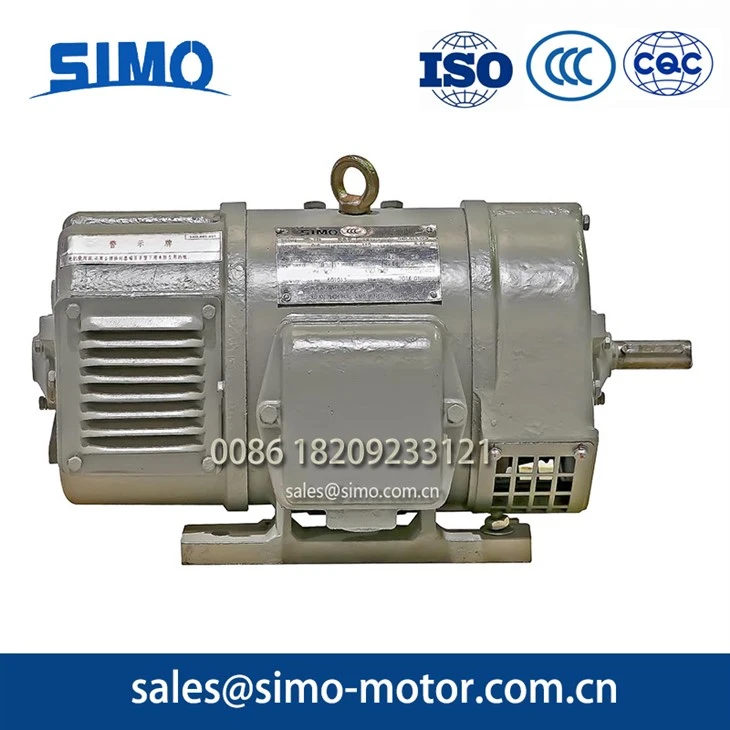

ZTP dc motor is specially used for dragging hydraulic pumps, blowers, air compressors, auxiliary generators, tachogenerators and other auxiliary mechanical motors on diesel locomotives and electric locomotives.Xi'an Simo Motor is the main supplier of diesel locomotives in China
The main models of this series of motors are ZTP-12-0.6KW-1600rpm ,ZTP-11-0.6KW-1500rpm , ZTP-11-0.6KW-3000rpm,ZTP-11-0.8KW-2000rpm and ZTP-11-0.8KW-3000rpm.China Simo motor is mainly developed and designed for China DF brand diesel locomotives. It is a designated motor manufacturer of the Ministry of Railways.ZTP-12 series motor is a locomotive auxiliary motor
ZTP dc motor adopts a new type of fully laminated octagonal frame, which has high stator space utilization, small size, small moment of inertia, good dynamic performance, and can withstand pulse current and high current change rate. The motor can withstand the impact and vibration generated by the normal operation of the locomotive and the EMU, andshunt wound dc motor will operate normally when the locomotive is subjected to rain, snow, wind and sand.
Structural type
The basic installation type of the motor
1. Horizontal, frame with feet (IMB3)
2. According to the needs of users, it can also be made into other installation types, single-shaft extension or double-shaft extension motors, and single-shaft extension motors can be equipped with tachogenerators or other speed measuring devices at the non-transmission end.
3. The position of the motor outlet box of IMB3 and IMB35 installation type is from the transmission end, on the left side of the frame (for the positive box), and if the user needs, it can also be on the right side of the frame (for the reverse box), or above the frame. IMBl0 and IMVl0 mounted motors do not have an outlet box.
4. The basic direction of rotation of the motor is regarded as counterclockwise rotation from the transmission end.

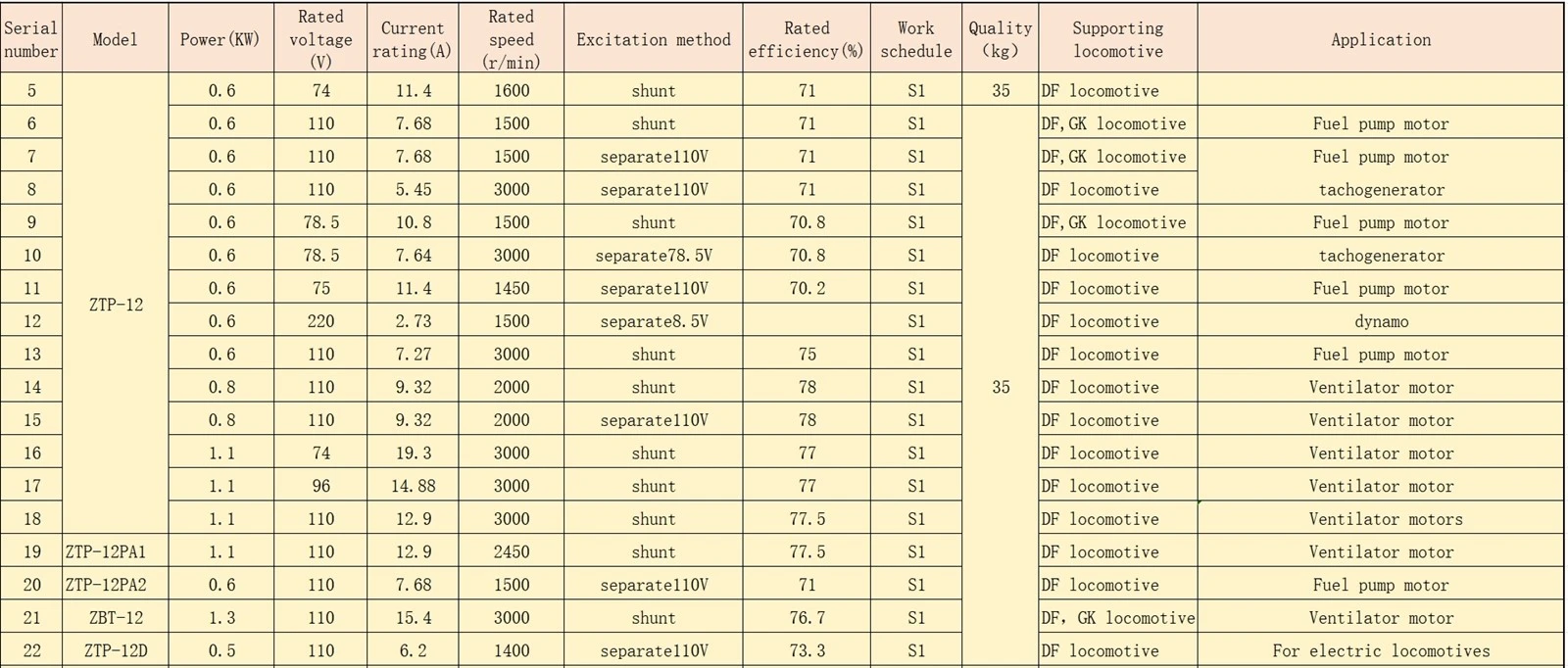

Main parameters
Main Technical Parameters
|
Frame: |
H12 |
|
Power Scope: |
0.5KW,0.6KW,0.8KW,1.1KW,1.3KW |
|
Voltage: |
74V,78.5V,96V,110V,220V |
|
Frequency: |
50Hz |
|
Number of Poles: |
2P |
|
Speed |
1450rpm,1500 rpm,2000rpm,3000 rpm,2800rpm,2450rpm |
|
Cooling Mechod |
IC01 |
|
Protection Grade |
IP22 |
|
Insulation Class |
-40℃~+45℃ |
|
Duty: |
S1, |
|
Mounting Type |
IMB3/B35/V1 |
Models: ZTP-12(0.6KW 1500rpm) ZTP-12(0.6KW 3000rpm) ZTP-11(0.8KW 3000rpm) ZTP-12(0.8KW 1500rpm) ZTP-12(0.8KW 2000rpm) ZTP-12PA1(0.8KW 2450rpm) ZTP-12PA2(0.8KW 1500rpm)
Installation dimensions
Ordering instructions
1. Before ordering, please consult the product sample, clarify the technical data such as the model specifications of the required product, if there is a discrepancy between the required varieties and specifications and the sample, please contact our factory, if there are special requirements, please put forward specific requirements in advance, and sign a contract or technical agreement after consultation and agreement between the two parties.
2. When ordering, please indicate the motor model, power, voltage, speed, working system, structure installation type, excitation mode, excitation voltage, number of shafts, outlet box position, rotation direction, and required accessories, spare parts name, quantity, etc.
3. If you need to go abroad with a package, please indicate in the contract if there are wet tropical requirements.
4.For more information, please contact with us：sales@simo-motor.com.cn.
