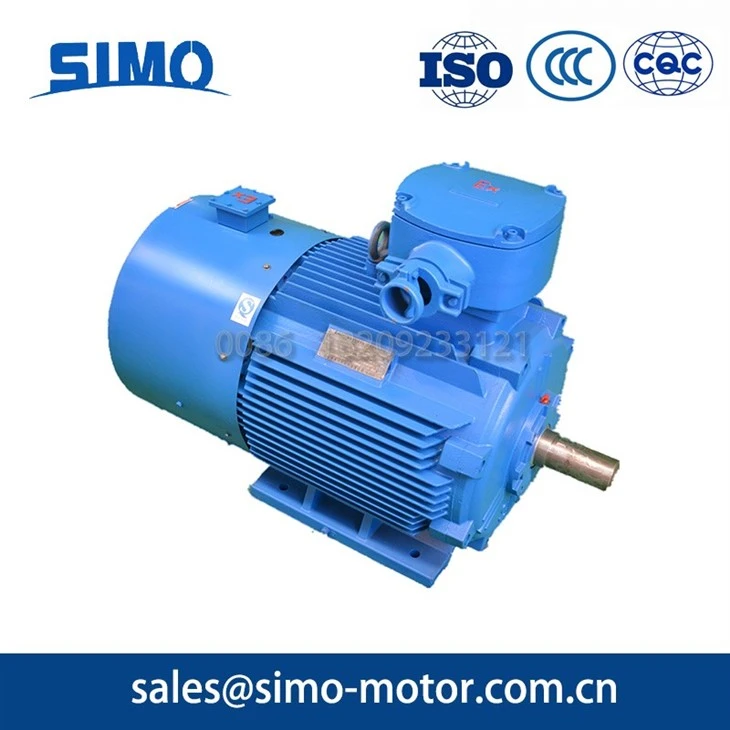

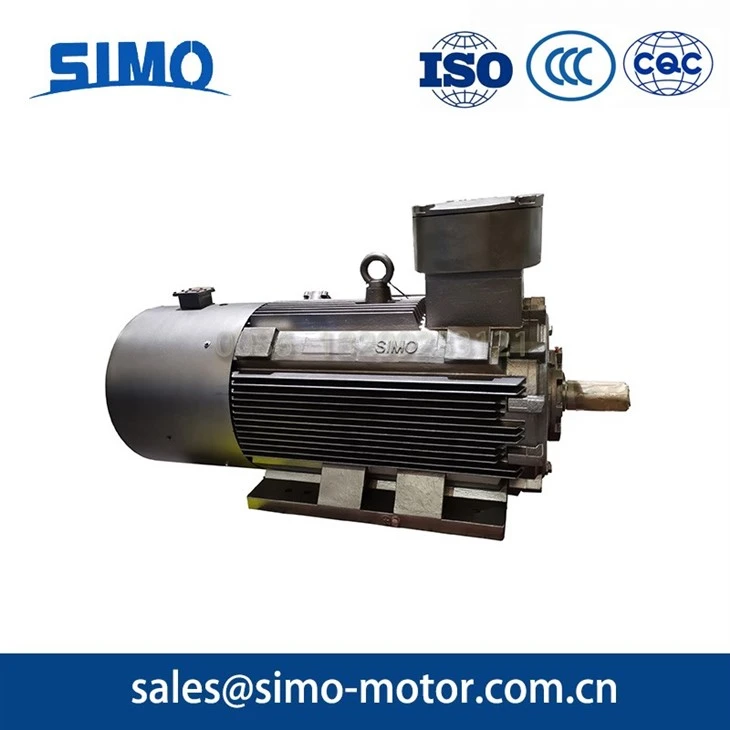

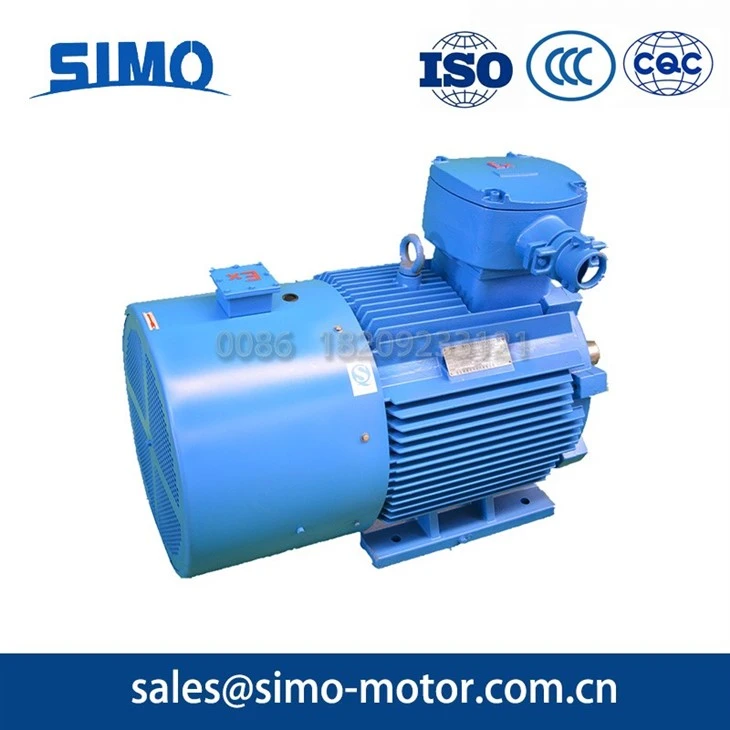

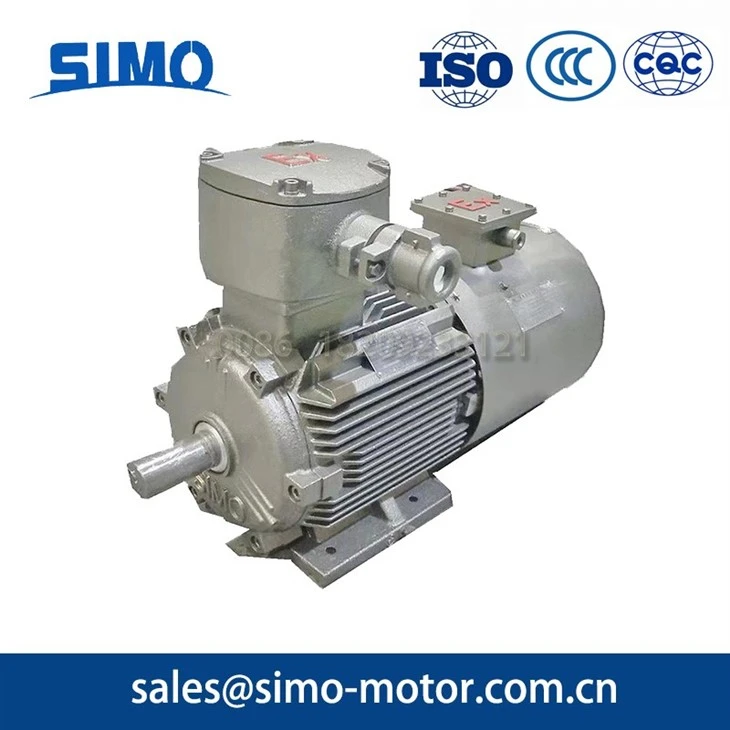

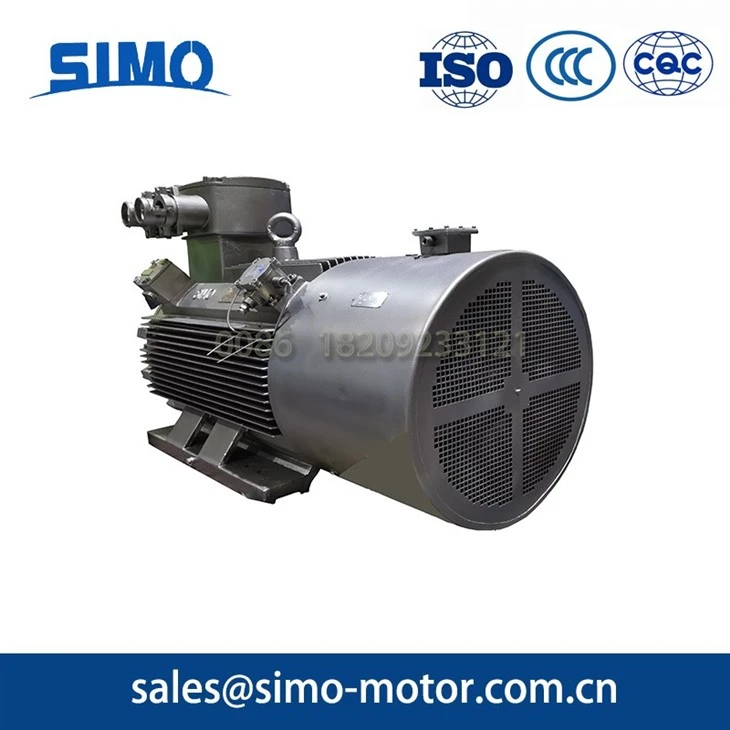

160KW Ultra High Efficiency Explosion-proof Variable Frequency Motor

The 160KW Ultra High Efficiency Explosion-proof Variable Frequency Motor adopts forced ventilation of Flame-proof axial flow fan. The separate fan is unrestricted from motor speed so as to assure the motor operation in a constant power and at a high frequency and also maintain the constant torque output at a low frequency. This series of explosion-proof variable frequency three-phase asynchronous motors use forced ventilation with explosion-proof axial fans. Independent fans are not restricted by the motor speed. They can ensure constant power operation of the motor at high frequencies and maintain constant torque output at low frequencies. Explosion-proof marks: ExdⅡ BT4 Gb, can replace Exd II AT1Gb, Exd II AT2 Gb, Exd II AT3 Gb, Exd II AT4 Gb, Exd II BT1 Gb, Exd II BT2 Gb, Exd II BT3 Gb. The speed control system formed with the frequency converter is the best choice for speed control and energy saving, it can achieve smooth stepless speed regulation, has significant energy saving effects, and the speed control accuracy is high. For more information, please contact: sales@simo-motor.com.cn

Send Inquiry

Products Description

Product model

YBBP315L1-2-160KW-3000r/min-IP55-IE3/IE4

160KW 3000r/min IP55 IE3/IE4

YBBP315L1-4-160KW-1500r/min-IP55-IE3/IE4

160KW 1500r/min IP55 IE3/IE4

YBBP355S-6-160KW-1000r/min-IP55-IE3/IE4

160KW 1000r/min IP55 IE3/IE4

YBBP355M-8-160KW-750r/min-IP55-IE3 /IE4

160KW 750r/min IP55 IE3/IE4

YBBP355L1-10-160KW-600r/min-IP55-IE3 /IE4

160KW 600r/min IP55 IE3/IE4

Motor Type Description

Y - Asynchronous Motor

B - Explosion-proof Type

BP - Variable Frequency Speed Control

355 - Frame Size (132mm)

S - Frame Length

6 - No. of Poles (6)

W - Ambient code, defaulted is indoor. (Special requirement: F1/F2-anti corrosion, W- outdoor, WF1/WF2- outdoor and anti-corrosion, TH-hot and humid zone type etc.)

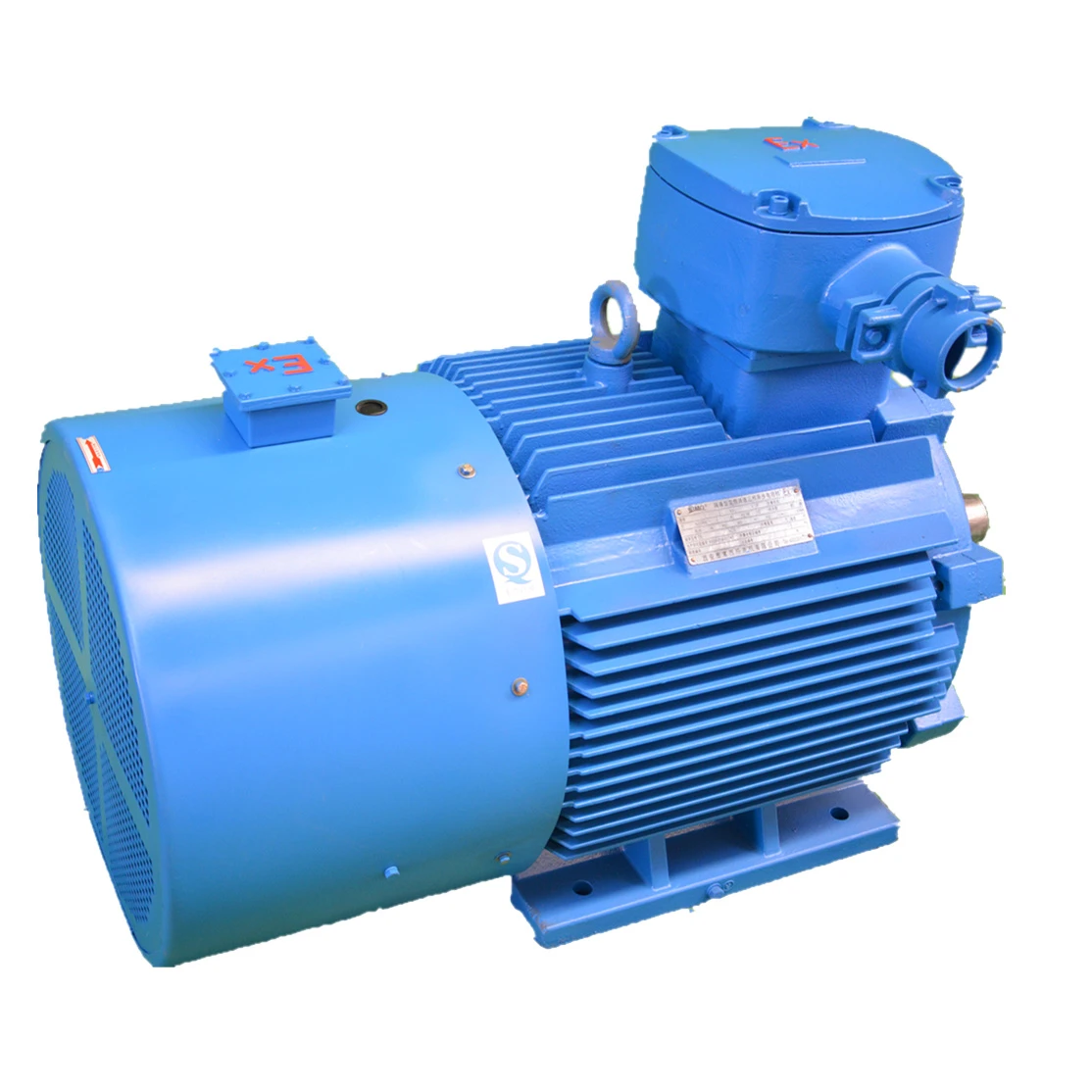

160KW Ultra High Efficiency Explosion-proof Variable Frequency Motor

Technical Advantages:

The 160KW Ultra High Efficiency Explosion-proof Variable Frequency Motors use forced ventilation with explosion-proof axial fans.

Independent fans are not restricted by the motor speed.

They can ensure constant power operation of the motor at high frequencies and maintain constant torque output at low frequencies.

Explosion-proof marks: ExdⅡ BT4 Gb, can replace Exd II AT1Gb, Exd II AT2 Gb, Exd II AT3 Gb, Exd II AT4 Gb, Exd II BT1 Gb, Exd II BT2 Gb, Exd II BT3 Gb.

The speed control system formed with the frequency converter is the best choice for speed control and energy saving, it can achieve smooth stepless speed regulation, has significant energy saving effects, and the speed control accuracy is high.

Standard technical characteristics

**160KW Ultra High Efficiency Explosion-proof Variable Frequency Motor**
Frame:	H315,H355	No. of Poles:	2P, 4P, 6P,8P
Voltage:	380V, 400V, 415V, 660V, 690V, 220/380V, 380/660V, 400/690V, etc	Protection Grade:	IP55
Efficiency Grade:	IE3/IE4	Power:	160KW
Frequency:	3~100hz Customizable Variable Frequency Speed Control Motor	Standard:	JB, IE,ExdIIBT4Gb,ExdIICT4Gb
Cooling Type:	IC411	Mounting Type:	IM B3, IM B35, IM B5, IM V1, etc

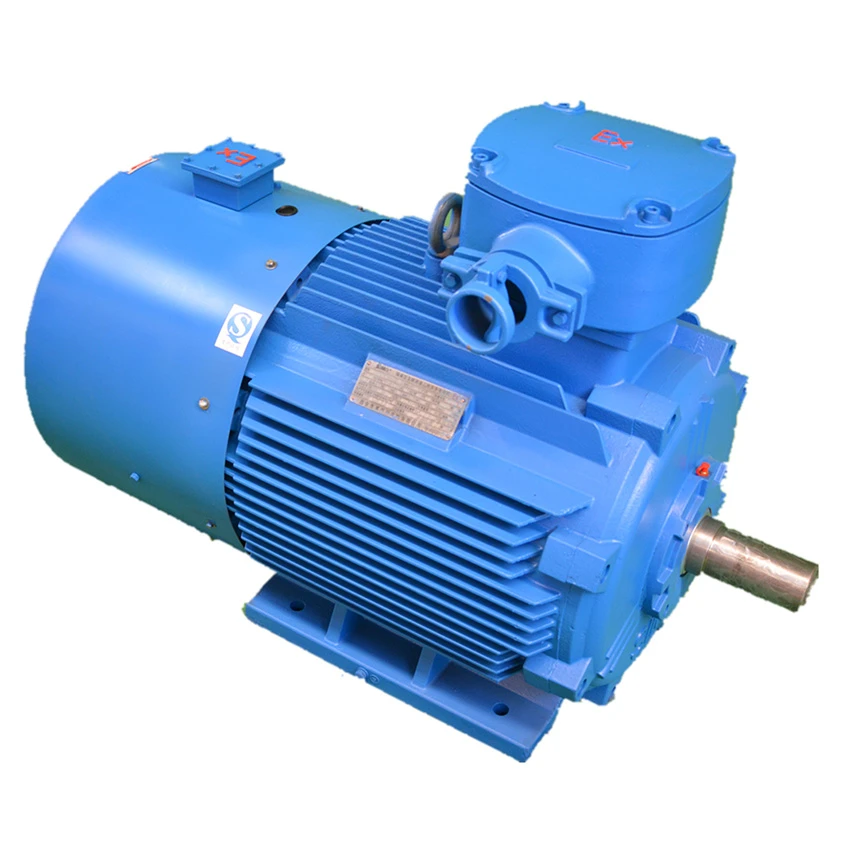

160KW Ultra High Efficiency Explosion-proof Variable Frequency Motor
Type	Rated Power (kW)	Rated Current (A)	Rated Frequency (Hz)	Rated Torque (N.m)	Max. Torque / Rated Torque	Efficiency (%)	Power Factor (cos φ)	Constant Torque Frequency Range (Hz)	Constant Power Frequency Range (Hz)	Weight (kg)	Synchronous Speed (r/min)
YBBP315L1-2	160	288.1	50	509.2	2.2	94.8	0.89	5~50	50~60	1280	3000
YBBP315L1-4	160	287.8	50	1018.5	2.2	94.9	0.89	5~50	50~100	1265	1500
YBBP355S-6	160	294.7	50	1527.8	2	94.8	0.87	5~50	50~100	1780	1000
YBBP355M-8	160	315.4	50	2037.1	2	94	0.82	5~50	50~100	1885	750
YBBP355L1-10	160	333.3	50	2546.4	2	93.5	0.78	5~50	50~100	2060	600
