Products Description
Product model
YBBP132S2-2-7.5KW-3000r/min-IP55-IE3
7.5KW 3000r/min IP55 IE3
YBBP132M-4-7.5KW-1500r/min-IP55-IE3
7.5KW 1500r/min IP55 IE3
YBBP160M-6-7.5KW-1000r/min-IP55-IE3
7.5KW 1000r/min IP55 IE3
YBBP160L-8-7.5KW-750r/min-IP55-IE3
7.5KW 750r/min IP55 IE3
Motor Type Description
Y - Asynchronous Motor
B - Explosion-proof Type
BP - Variable Frequency Speed Control
132 - Frame Size (132mm)
S2 - Frame Length
2 - No. of Poles (2)
W - Ambient code, defaulted is indoor. (Special requirement: F1/F2-anti corrosion, W- outdoor, WF1/WF2- outdoor and anti-corrosion, TH-hot and humid zone type etc.)
The 7.5KW VF Control Explosion-Proof Motor adopts forced ventilation of Flame-proof axial flow fan. The separate fan is unrestricted from motor speed so as to assure the motor operation in a constant power and at a high frequency and also maintain the constant torque output at a low frequency.
The 7.5KW VF Control Explosion-Proof Motor is accord with Chinese Flame-proof standard GB/T 3836.1 and GB/T 3836.2. The motor property meets with the requirements of industry standard JB/T11201.1-2011 Variable Frequency Flame-proof Three Phase Electric Asynchronous Motor
Standard technical characteristics
|
Frame: |
H132,H160 |
No. of Poles: |
2P, 4P, 6P,8P |
|
Voltage: |
380V, 400V, 415V, 660V, 690V, 220/380V, 380/660V, 400/690V, etc |
Protection Grade: |
IP55 |
|
Efficiency Grade: |
IE3 |
Power: |
7.5KW |
|
Frequency: |
3~100hz
Customizable Variable Frequency Speed Control Motor |
Standard: |
JB, IE,ExdIIBT4Gb,ExdIICT4Gb |
|
Cooling Type: |
IC411 |
Mounting Type: |
IM B3, IM B35, IM B5, IM V1, etc |
| Type | Rated Power (kW) | Rated Current (A) | Rated Frequency (Hz) | Rated Torque (N.m) | Max. Torque / Rated Torque | Efficiency (%) | Power Factor (cos φ) | Constant Torque Frequency Range (Hz) | Constant Power Frequency Range (Hz) | Weight (kg) | Synchronous Speed (r/min) |
| YBBP132S2-2 | 7.5 | 14.5 | 50 | 23.8 | 2.3 | 88.1 | 0.89 | 5~50 | 50~100 | 87 | 3000 |
| YBBP132M-4 | 7.5 | 15.5 | 50 | 47.7 | 2.4 | 88.7 | 0.83 | 5~50 | 50~100 | 98 | 1500 |
| YBBP160M-6 | 7.5 | 16.8 | 50 | 71.6 | 2.4 | 87.2 | 0.78 | 5~50 | 50~100 | 175 | 1000 |
| YBBP160L-8 | 7.5 | 18.1 | 50 | 95.5 | 2.2 | 84 | 0.75 | 5~50 | 50~100 | 190 | 750 |

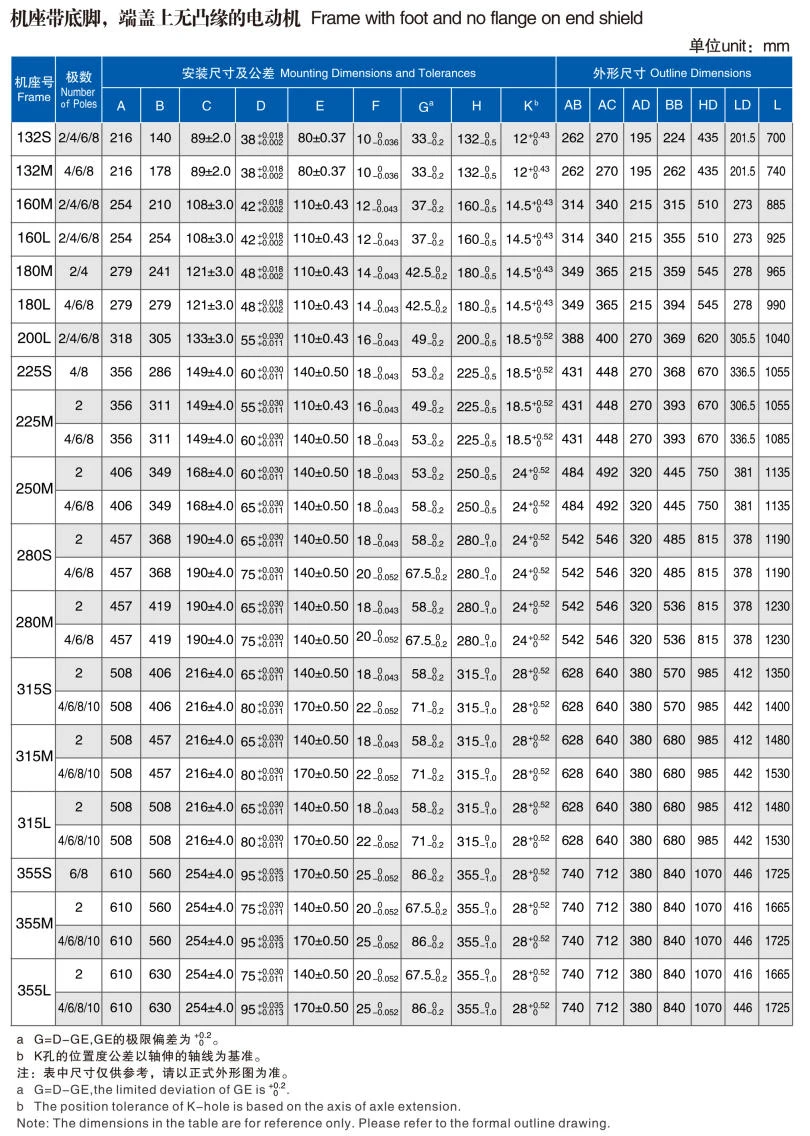

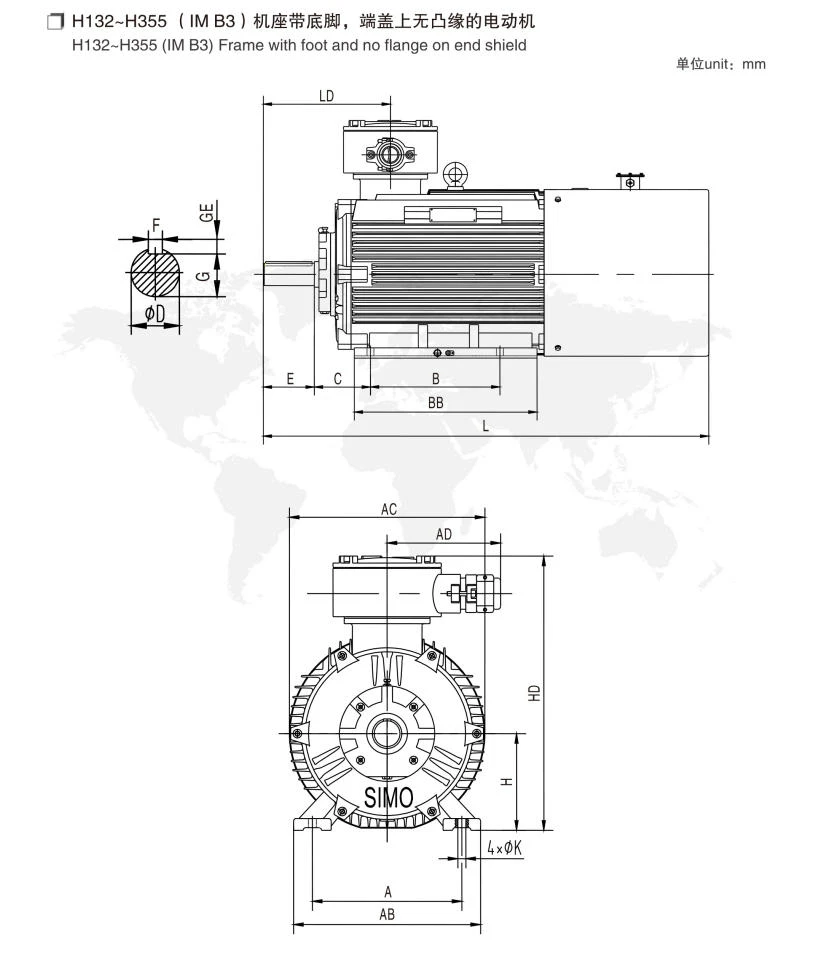

Installation Dimension Drawing

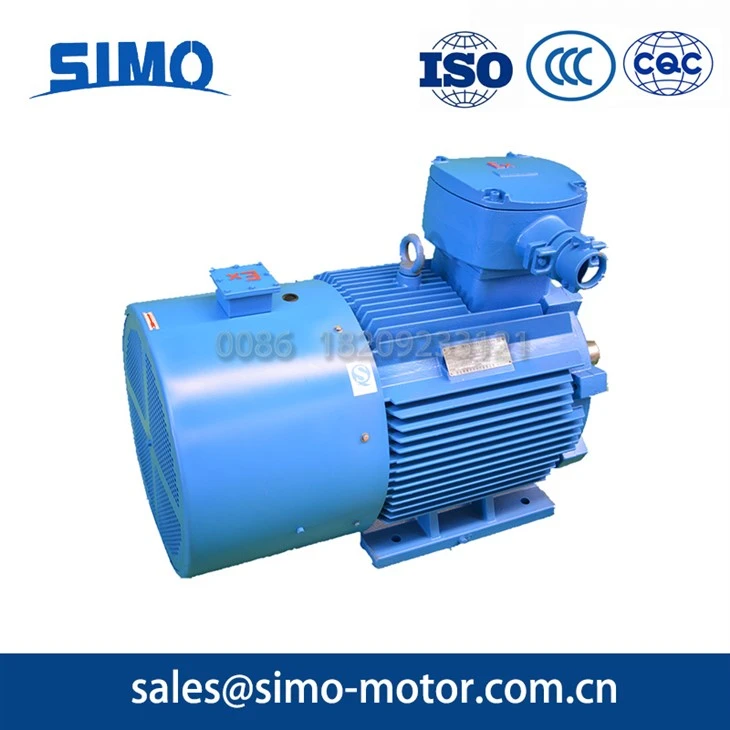

7.5KW VF Control Explosion-Proof Motor
