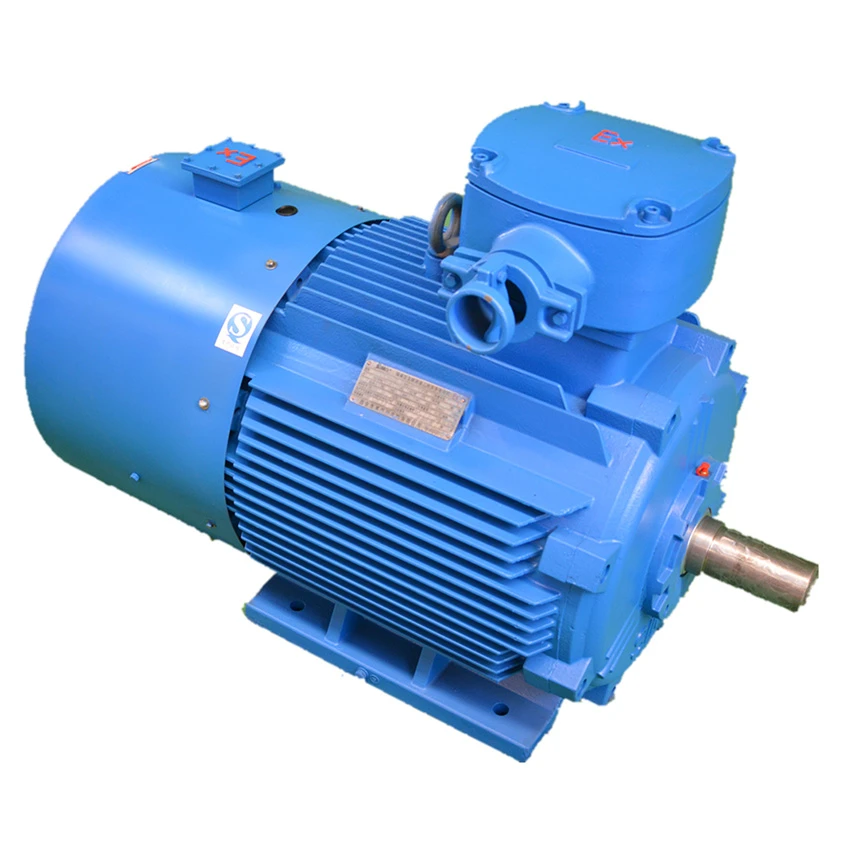

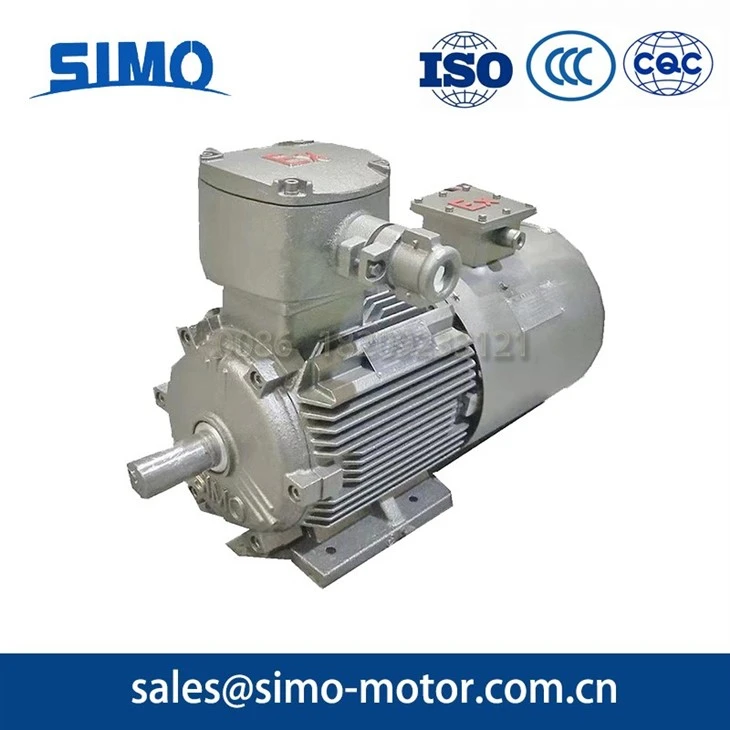

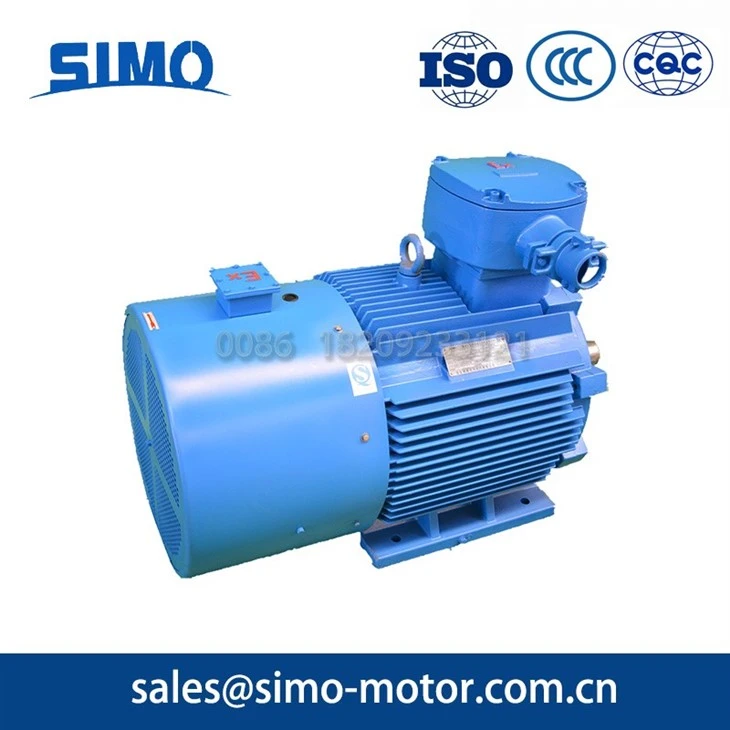

5.5KW Variable Frequency Speed-Regulated Explosion-Proof Motor

Motor Type Description

Y - Asynchronous Motor

B - Explosion-proof Type

BP - Variable Frequency Speed Control

132 - Frame Size (132mm)

S1 - Frame Length

2 - No. of Poles (2)

W - Ambient code, defaulted is indoor. (Special requirement: F1/F2-anti corrosion, W- outdoor, WF1/WF2- outdoor and anti-corrosion, TH-hot and humid zone type etc.)

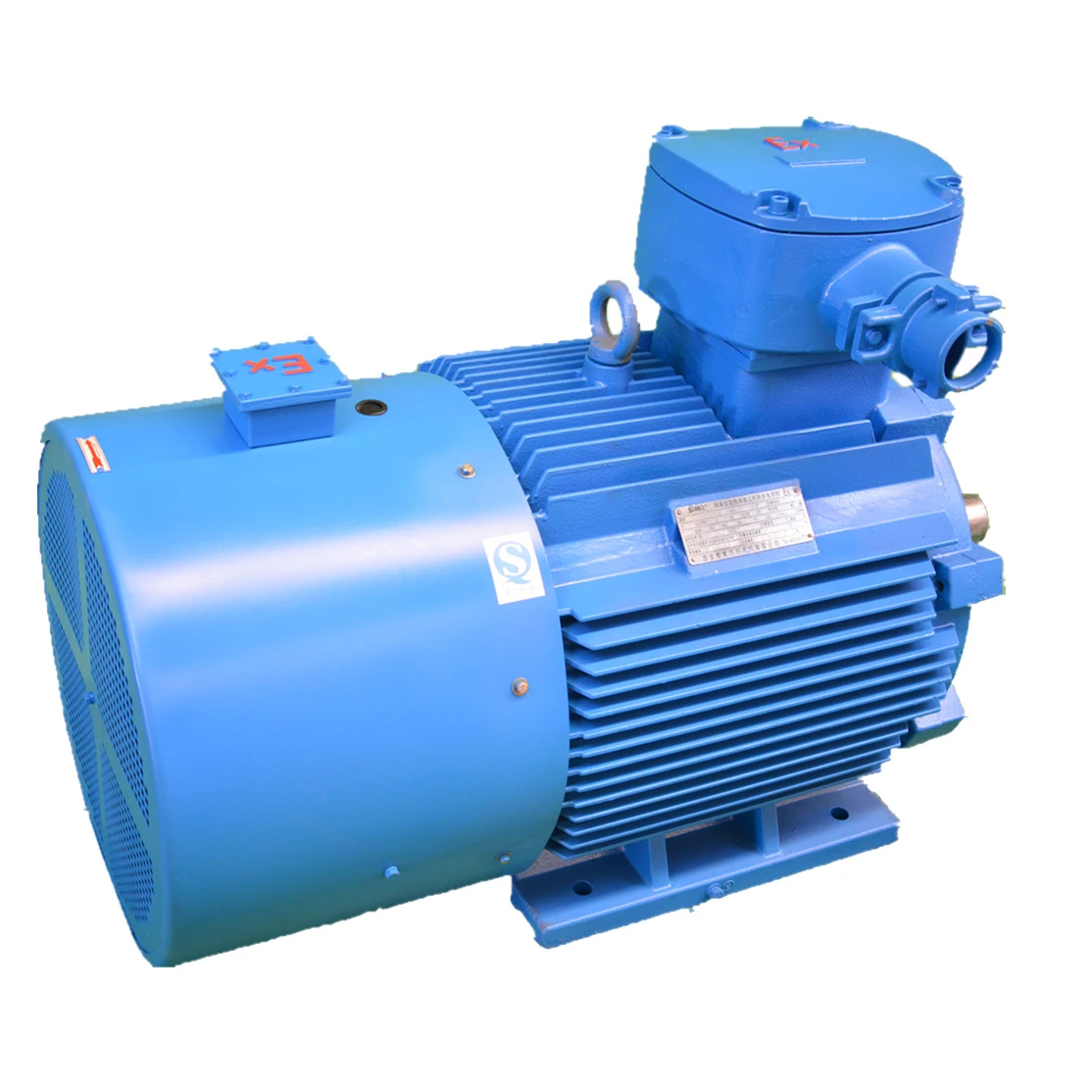

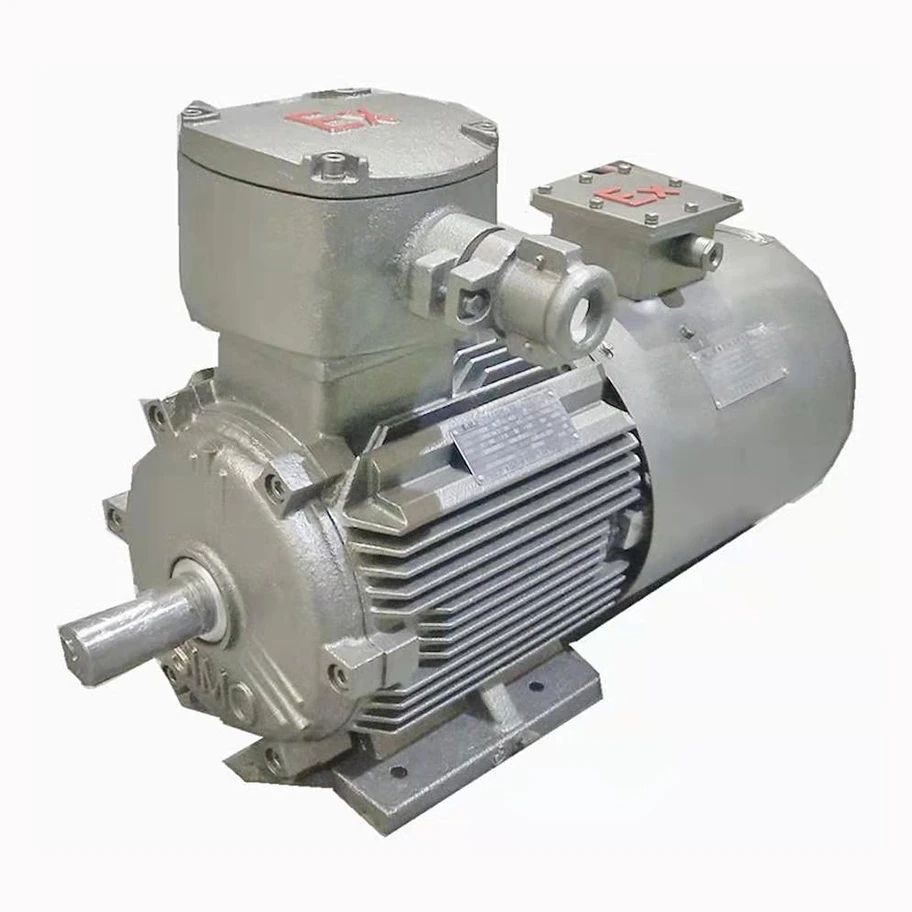

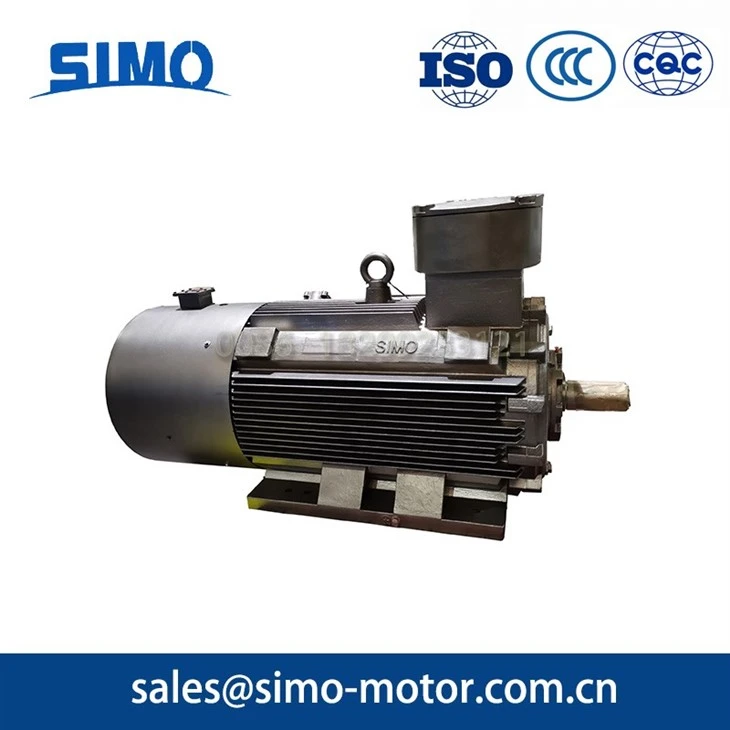

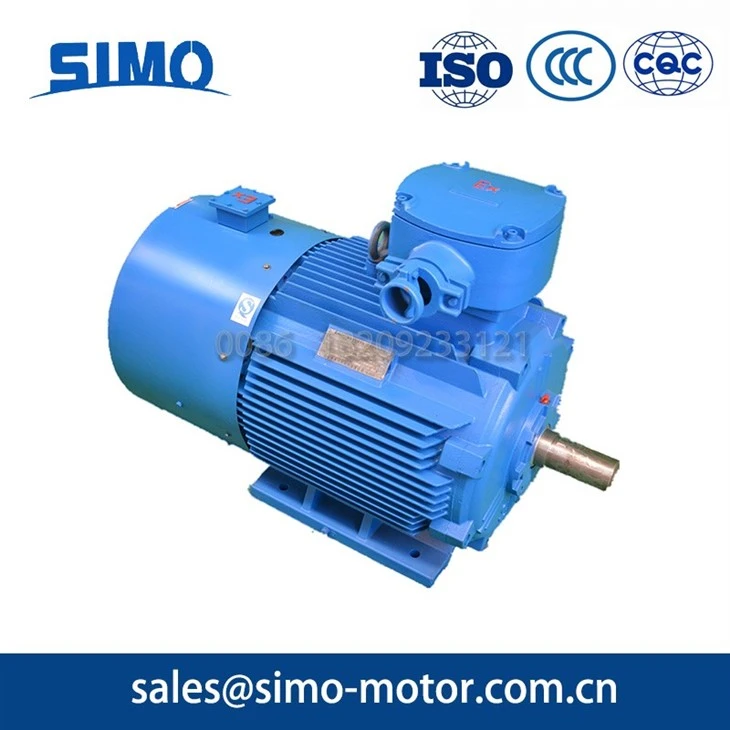

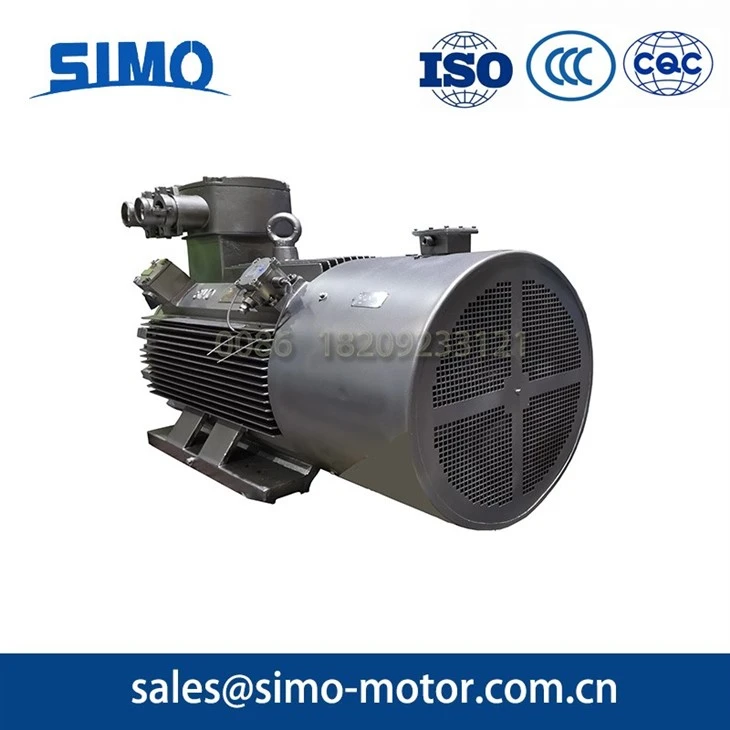

The 5.5KW Variable Frequency Speed-Regulated Explosion-Proof Motor adopts forced ventilation of Flame-proof axial flow fan. The separate fan is unrestricted from motor speed so as to assure the motor operation in a constant power and at a high frequency and also maintain the constant torque output at a low frequency.

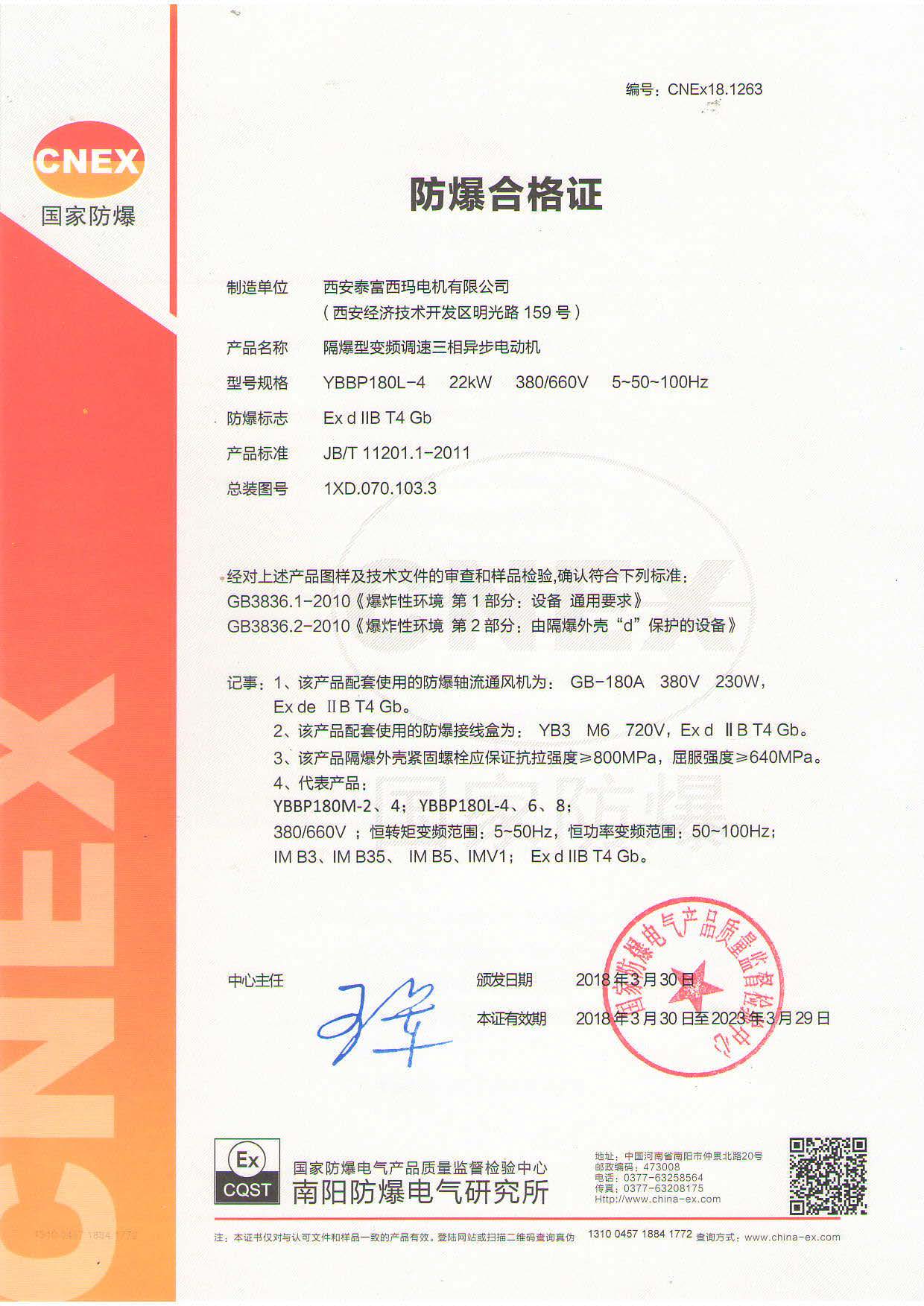

The 5.5KW Variable Frequency Speed-Regulated Explosion-Proof Motor is accord with Chinese Flame-proof standard GB/T 3836.1 and GB/T 3836.2. The motor property meets with the requirements of industry standard JB/T11201.1-2011 Variable Frequency Flame-proof Three Phase Electric Asynchronous Motor Technical Condition: Part 1: YBBP Series Flame-proof Three Phase Electric Asynchronous Motor (Frame Size. H80355). Or JB-T 11201.2-2015 Variable Frequency Flame-proof Three Phase Electric Asynchronous Motor Technical Condition: Part 2: YBBP Series Flame-proof (Ex d II C T1 T4) Variable Frequency Three Phase Electric Asynchronous Motor (Frame Size. H80~355). The coolant mode is IC416, the Flame-proof mark is Ex db I Mb,Ex db II B T4 Gb和 Ex db II C T4 Gb, which can replace Ex db II A T1 Gb,Ex db II A T2 Gb,Ex db II A T3 Gb,Ex db II A T4 Gb,Ex db II B T1 Gb,Ex db II B T2 Gb,Ex db II B T3 Gb,Ex db II CT1 Gb,Ex db II CT2 Gb,Ex db II C T3 Gb.

The speed control system consisted by this series of motor and the converter is necessary for speed control and energy saving, so that the motor speed can be adjusted smoothly, and energy saving and precise speed adjusting can be realized. This series of motor has advantages, such as excellent Flame-proof property, high reliability, compact structure, safe, environment protection, low vibration, low noise, easy to install and maintain. This series of motor can be widely applied in coal mine, petrochemical industry or other industry which may exposed to explosive environment. It can drive blower, water pump and other machines.
