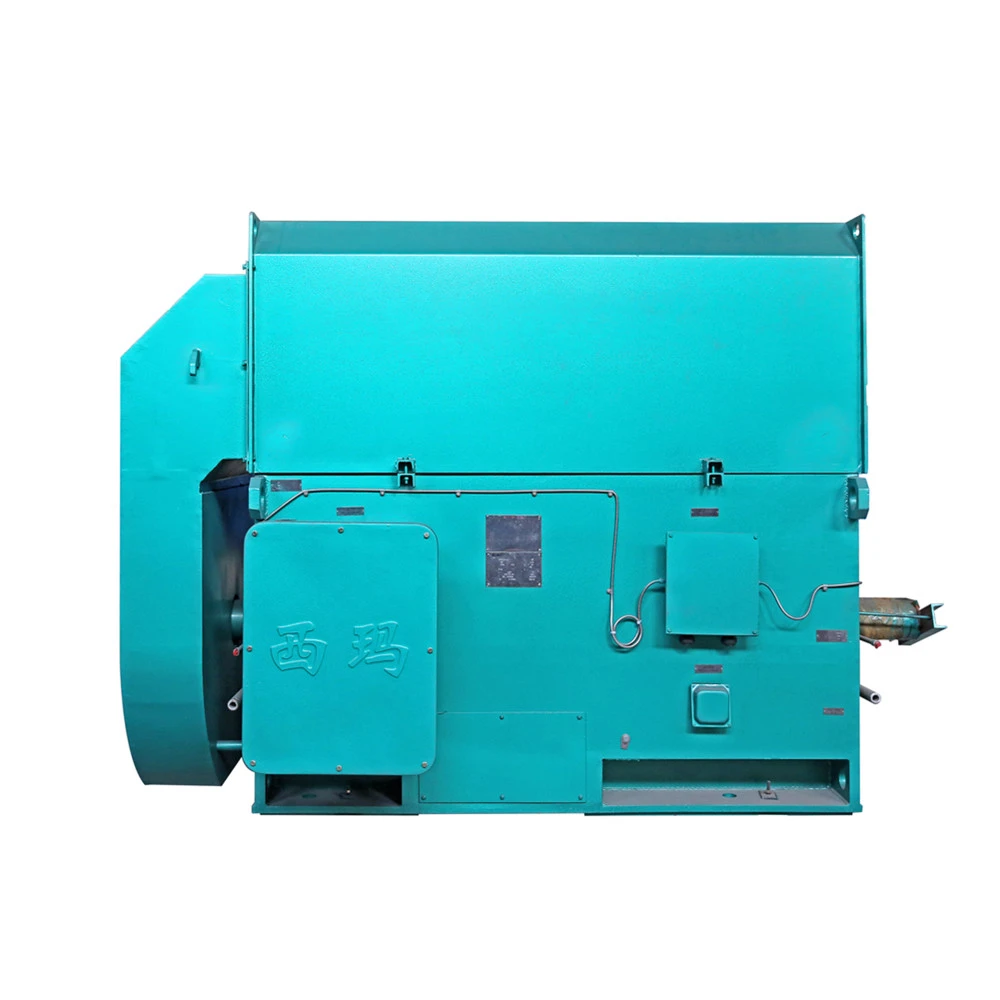

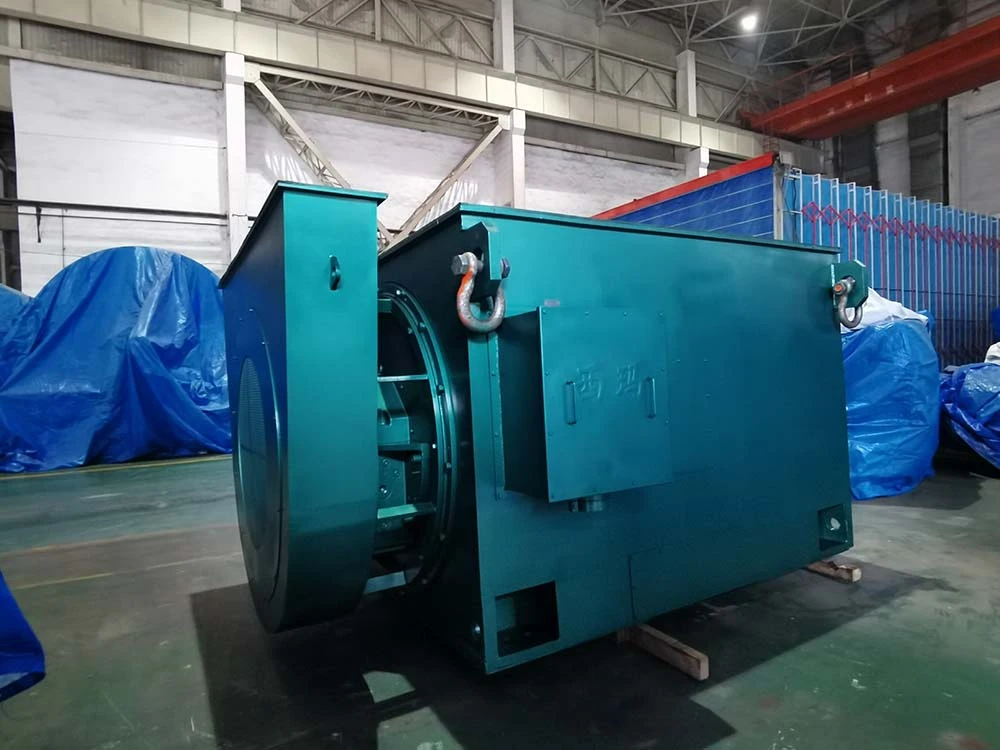

The YKK series high voltage three-phase asynchronous motors produced by Xi'an Simo Motor Company are indispensable power equipment in modern industrial production, especially excelling in applications requiring high load and high power. Below are seven key aspects that highlight their features:
1. Efficient and Energy-Saving Design
Electromagnetic Optimization: Utilizes Finite Element Analysis (FEA) to optimize electromagnetic field distribution, reducing iron losses and copper losses.
Cooling System (IC611): An external independent cooler works with a fan on top of the motor for efficient heat dissipation, ensuring stable temperature rise even at high speeds and loads, thereby minimizing efficiency loss due to overheating.
Energy Efficiency: Compared to traditional high-voltage motors, these motors can achieve a comprehensive electricity saving rate of 5%-15%, making them suitable for long-term continuous operation in industrial settings such as pumping stations and compressors.
2. Compact Structure and Modular Design
Box-type Frame: Constructed using high-strength steel plates welded together, offering a lightweight design (20%-30% lighter than cast iron structures), which facilitates handling and transportation while enhancing vibration resistance.
Modular Components: Standardized design for components like bearings, end covers, and coolers, enabling quick disassembly and assembly, thus reducing downtime for maintenance (maintenance intervals can be extended to over 15,000 hours).
-Installation Compatibility: Multiple installation hole sizes are reserved on the base to accommodate different equipment foundations, reducing on-site modification requirements.
3. High Reliability and Environmental Adaptability
Materials and Manufacturing Processes:
Stator Windings: Uses F-grade or H-grade insulation materials (such as mica tape vacuum impregnation process), with temperature resistance up to 155°C (F-grade) or 180°C (H-grade).
Rotor Structure: High-pressure die-cast aluminum or copper bar squirrel cage rotor, enhancing fatigue and impact resistance.
Protection Level: Meets IP54/IP55 protection standards for dust and water resistance; special sealing designs can handle corrosive gases in chemical plants or dust-laden environments in mines.
Temperature Rise Control: Built-in PT100 temperature sensors monitor winding temperatures in real-time, working with intelligent systems to provide overload protection.
4. Low Noise and Vibration Control
Noise Optimization:
Electromagnetic Noise: Optimized slot coordination and skewed slot design reduce high-frequency harmonics.
Mechanical Noise: High-precision dynamic balance testing ensures compliance with ISO 10816 standards, limiting vibration speed to ≤2.8 mm/s.
Vibration Reduction Measures: Elastic base design or optional rubber dampers are available for precision equipment sensitive to vibrations (e.g., laboratory compressors).
5. Broad Application Compatibility
Voltage and Power Range:
Voltage Levels: Compatible with 3kV, 6kV, and 10kV, meeting both domestic and international grid standards.
Power Coverage: Ranges from 100kW to 10,000kW, supporting customized power outputs.
Industry Applications:
Metallurgical Industry: High furnace blowers, main drive for rolling mills.
Mining Industry: Hoists, ball mill drives.
Chemical/Power Plants: Centrifugal pumps, air compressors, auxiliary machinery in power plants.
6. Intelligence and Digital Integration
Smart Monitoring System:
Supports protocols like Modbus and Profibus for seamless integration with DCS/PLC systems.
Real-time monitoring of parameters such as current, voltage, temperature, and vibration, generating operation reports.
Predictive Maintenance: AI algorithms analyze historical data to predict potential failures like bearing wear and insulation aging, reducing unplanned downtime.
7. Full Lifecycle Service System
Pre-sales Support: Offers selection advice or custom solutions tailored to specific environments, voltages, and installation dimensions.
After-sales Service:
Global service network responds within 48 hours, with spare parts covering mainstream models.
Regular inspections and lubrication management guidance extend motor lifespan.
Selection Suggestions and Precautions
Load Type Matching: For constant torque applications (like compressors), choose designs with high starting torque; for variable torque applications (like fans), focus on speed regulation range.
Environmental Adaptability: In high-altitude areas, derate usage; in humid and hot environments, enhance insulation protection.
Energy Efficiency Certification: Confirm if specific energy efficiency labels (such as China's energy efficiency label or EU CE certification) are required.
Xi'an Simo YKK high voltage motors are recognized for their advanced technology and reliability, becoming benchmark products in heavy industries. They are an ideal choice for users seeking efficient, stable, and intelligent production. For more detailed specifications, please contact sales@simo-motor.com.cn.
