Key Differences Between Xian Simo AC Motors and DC Motors
1. Structural Differences

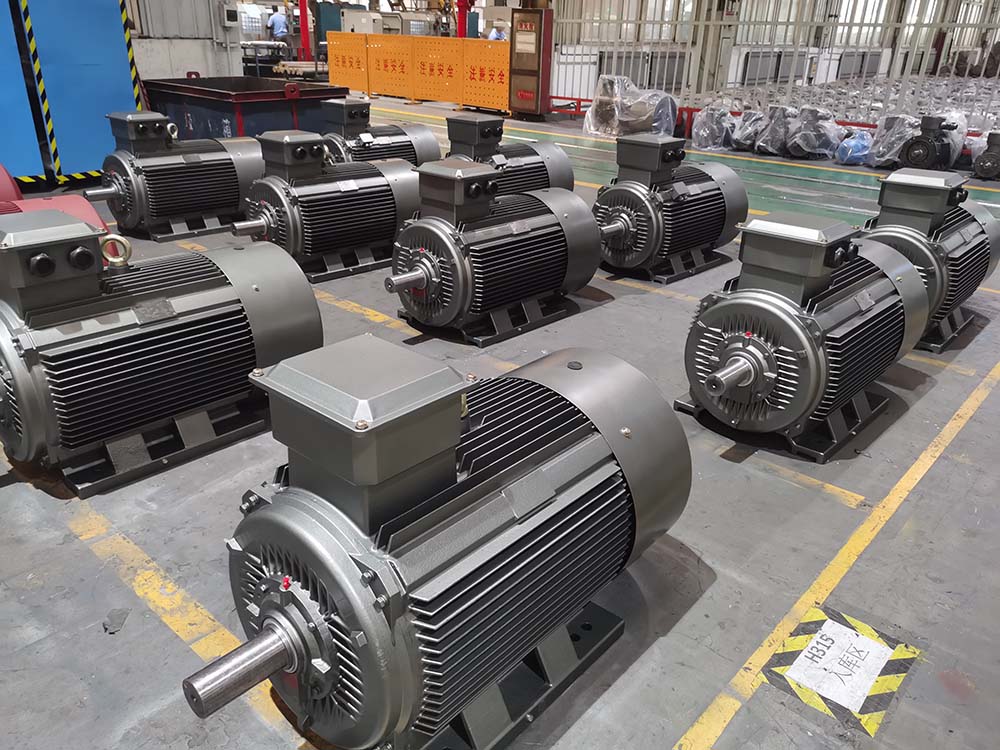

AC Motors :
Core components: Stator (wound iron core) and Rotor (squirrel-cage or wound rotor).
No brushes or commutators, simpler construction.

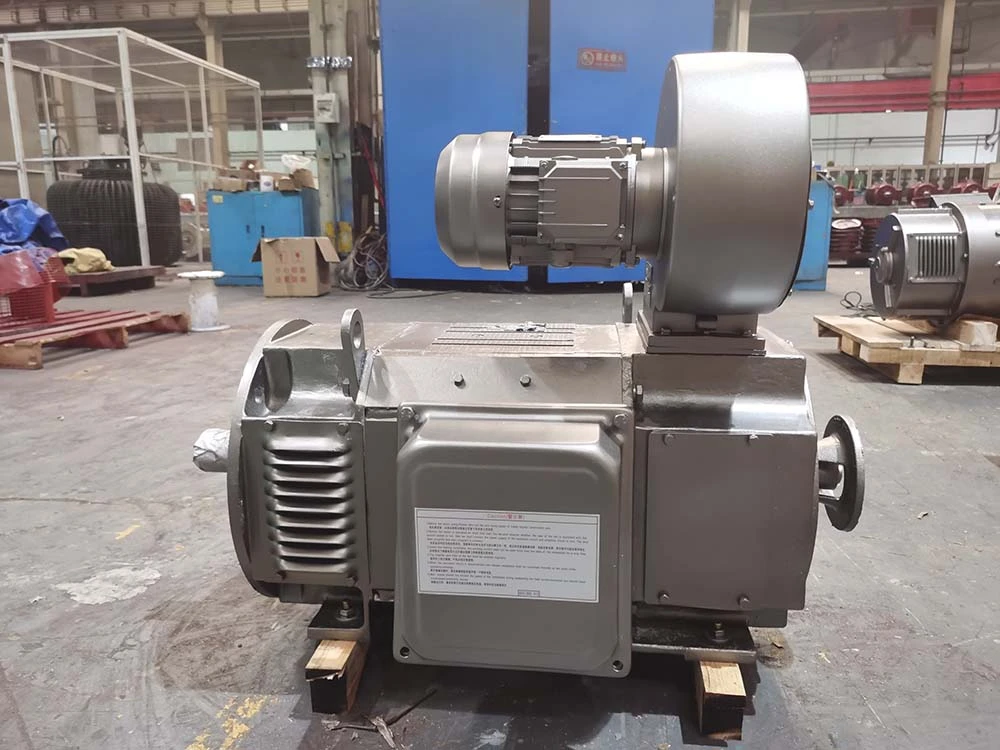

DC Motors :
Components: Stator (main poles, interpoles), Rotor (armature windings), Commutator , and Brushes .
Commutator and brushes enable current reversal, resulting in more complex design.
2. Working Principles
AC Motors :
Alternating current in the stator generates a rotating magnetic field .
Rotor conductors cut through the field, inducing current (electromagnetic induction for synchronous motors; electromagnetic force for asynchronous motors).
DC Motors :
DC power supplied to the armature windings via brushes and commutator.
Commutator maintains constant torque direction by reversing current flow in the rotor.
3.Performance Characteristics
|
Feature |
AC Motors |
DC Motors |
|
Speed Control |
Limited by frequency/pole pairs; complex via VFD. |
Precise, wide-range control via armature voltage or field current. |
|
Starting Torque |
Lower (requires auxiliary starters). |
High (direct high-torque startup). |
|
Efficiency |
High at rated load; drops under light load. |
Stable across loads but reduced by commutator losses. |
|
Maintenance |
Minimal (no brushes). |
Frequent (brush replacement required). |
4. Application Scenarios
AC Motors :
Industrial: Fans, pumps, compressors (continuous operation).
Household: Air conditioners, refrigerators, washing machines.
Electric vehicles: Drive systems for EVs.
DC Motors :
Precision control: CNC machines, elevators, rail systems.
High torque demands: Cranes, forklifts, steel rolling equipment.
Specialized fields: Aerospace attitude control, military devices.
Key Summary
AC motors dominate mainstream applications due to simpler design and lower maintenance , while DC motors excel in precise speed control and high starting torque for specialized needs. Advances in VFD technology are narrowing AC motor limitations, but DC motors remain irreplaceable in niche scenarios.
