Introduction to YKS series motors
The YKS series 6kV (10kV) three - phase asynchronous motors (with a center height of 355 - 630) are three - phase asynchronous motors with squirrel - cage rotors. These three - phase asynchronous motors are manufactured in accordance with JB/T7593–1994 "Technical Specifications for Y Series 6kV High - Voltage Three - Phase Asynchronous Motors (Frame Sizes 355 - 630)" and JB/10446 - 2004 "Technical Specifications for Asynchronous Motors (Frame Sizes 400 - 800)". The protection class of the YKS series motors is IP44/IP54, and the cooling method is ICW81A.
This series of motors features advantages such as high efficiency, energy - saving, low noise, small vibration, light weight, reliable performance, and convenient installation and maintenance. They can be used to drive various types of machinery, such as ventilators, compressors, water pumps, crushers, cutting machine tools and other equipment. They can also serve as prime movers for coal mines, the machinery industry, power plants and various industrial and mining enterprises.
The structure and installation type of this series of motors is IMB3. The rating is based on the continuous duty system (S1). The rated frequency of the motors is 50Hz, and the rated voltages are 6kV and 10kV. Other voltage levels or special requirements can be negotiated with users when placing an order.
Detailed introduction to the YKS-355 series motors

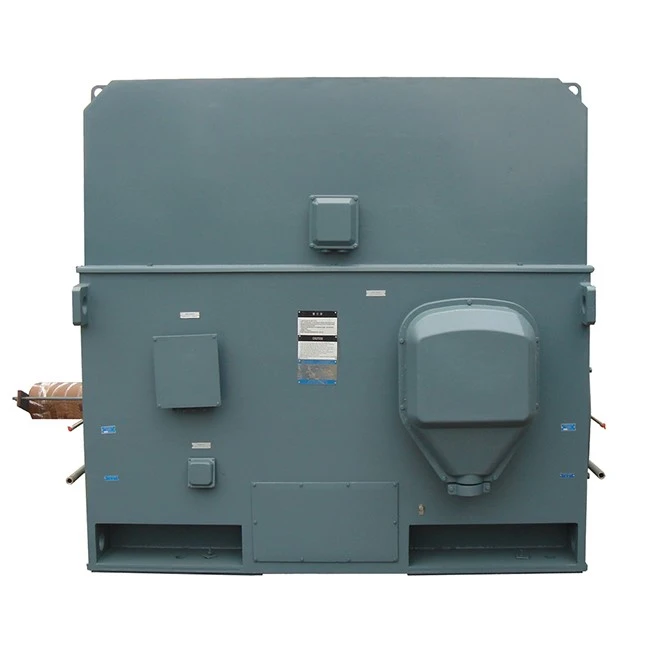

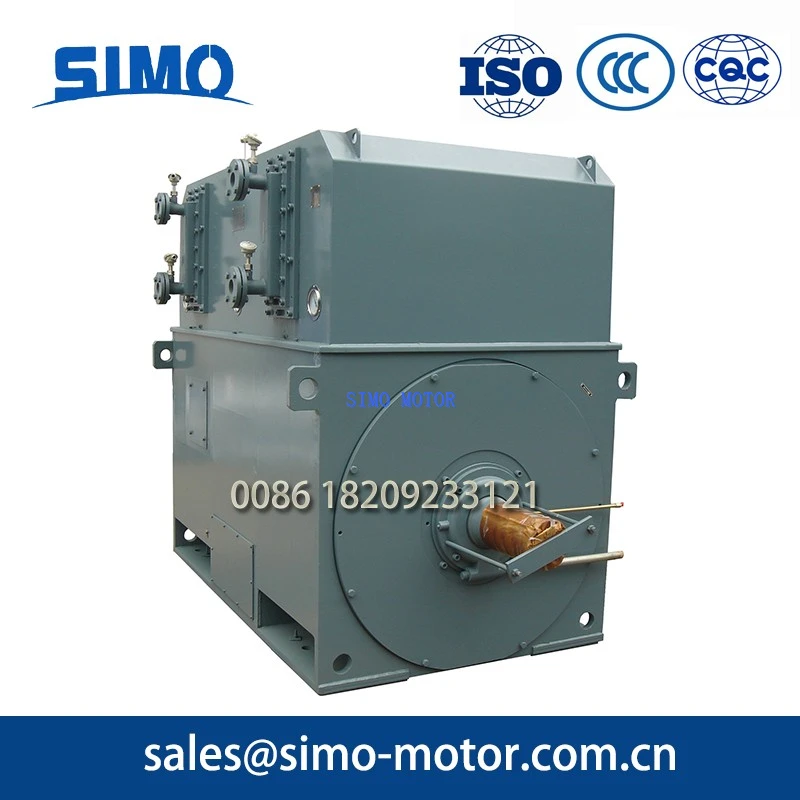

Water Pump High Voltage Motor– SIMO YKS 355
The YKS - 355 series motors (with a center height of H355) are specifically designed for high - power, heavy - load and continuous operation. They are suitable for the following application scenarios:
Circulating cooling pumps in power plants
Oilfield injection pumps for enhancing oil recovery
Compressors and oil transfer pumps
Large - scale industrial pumps for chemical processing
Large - capacity water pumps for water conservancy projects and booster stations
The YKS series is a professional high - voltage motor developed by SIMO Motors for large - scale high - voltage pump systems. Its main advantages include energy - saving, durability, easy installation and low maintenance costs.
Model Number Explanation
SIMO YKS Series High-Voltage Three-Phase Asynchronous Motor Model Number Explanation
Taking YKS3551-4 as an example:
1
2
3
YKS Series High Voltage Motor (6KV/10KV/Customizable) – Key Specifications:
Frame Size: 355–630 (6KV); 400–800 (10KV)
Rated Voltage: 6KV / 10KV (Customizable)
Rated Frequency: 50Hz
Speed: 3000rpm, 1500rpm, 1000rpm, 750rpm
Power Range: 220–3150KW
Mounting Type: IMB3
Protection Class: IP44 / IP54
Cooling Method: IC81W
Insulation Class: F
Ambient Temperature: Seasonal variations, max. 40°C; min. -15°C
Humidity: Max. 90% relative humidity in the wettest month, with an average monthly low ≤25°C.

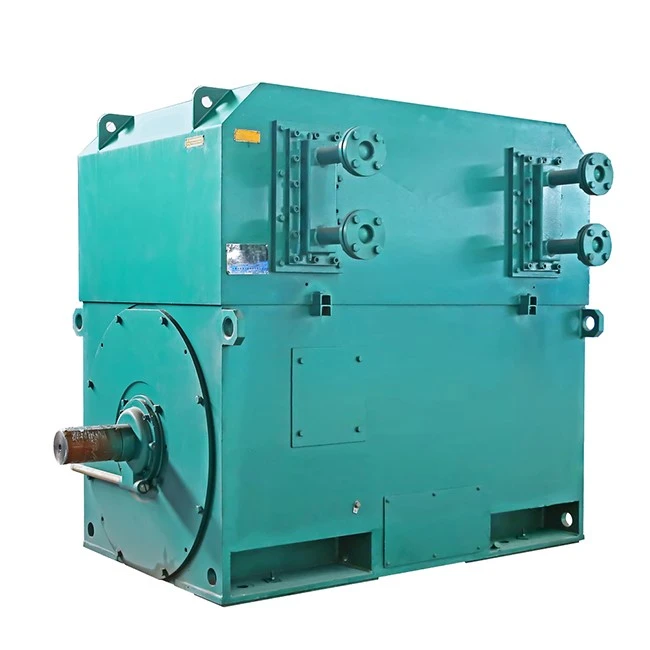

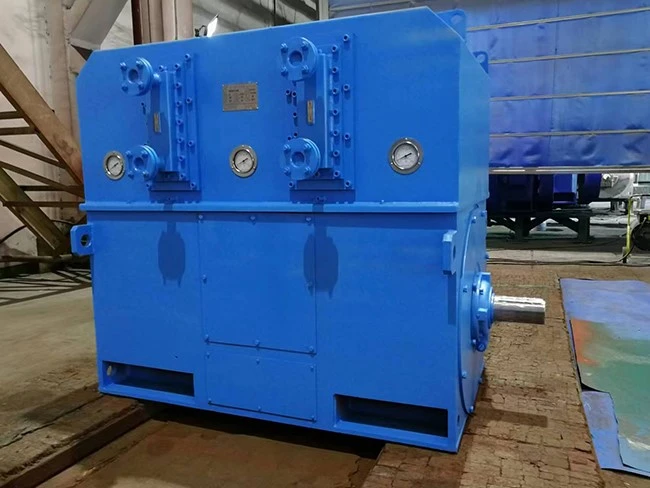

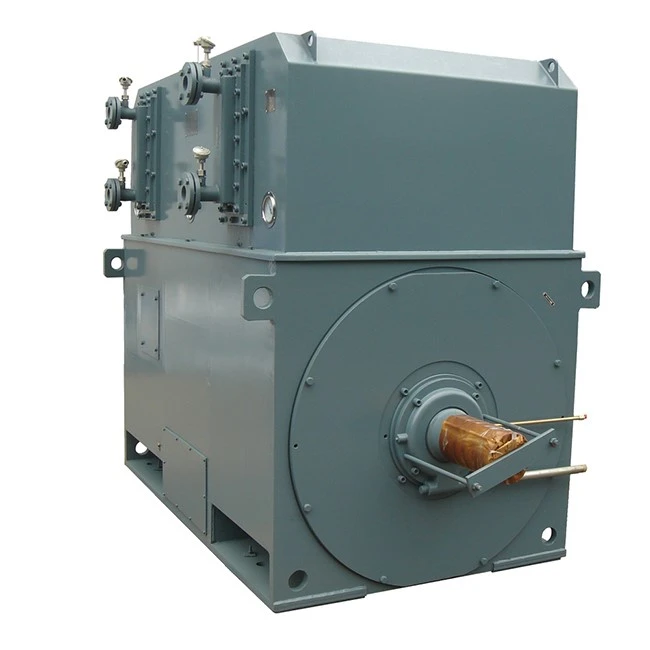

Take real pictures of product production

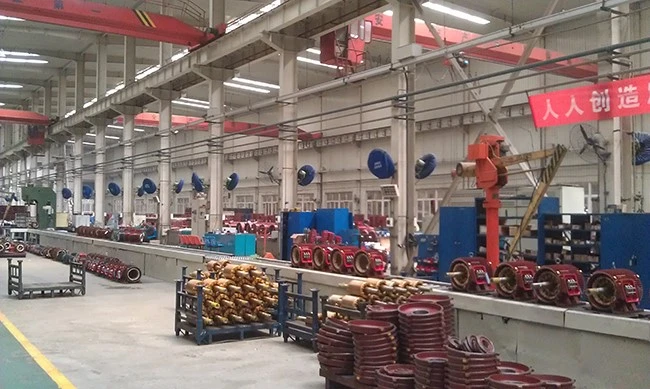

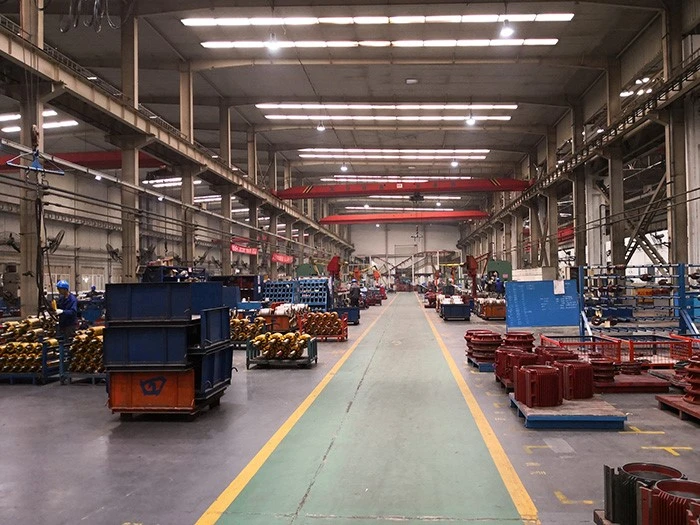

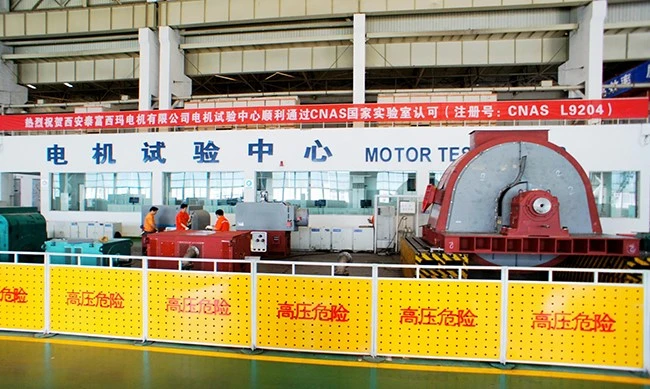

Our factory & workshop
Technical data sheet
| Type | Rated Power (kW) | Rated Current (A) | Speed (r/min) | Efficiency (%) | Power Factor (cos Φ) | Max. Torque / Rated Torque | Locked Torque / Rated Torque | Locked Current / Rated Current | J (Motor) (Kg.m²) | J (Load) (Kg.m²) | Y Mass (kg) | YKS Mass (kg) | Lubrication Time (h) |
| Y.YKS3551-2 | 220 | 26.7 | 2975 | 92.8 | 0.86 | 1.8 | 0.6 | 7 | 2.1 | 16 | 1680 | 1840 | 500 |
| Y.YKS3552-2 | 250 | 30.1 | 2975 | 92.9 | 0.86 | 1.8 | 0.6 | 7 | 2.1 | 18 | 1690 | 1850 | 500 |
| Y.YKS3553-2 | 280 | 33.7 | 2975 | 93.1 | 0.86 | 1.8 | 0.6 | 7 | 2.3 | 20 | 1728 | 1888 | 500 |
| Y.YKS3554-2 | 315 | 37.7 | 2975 | 93.4 | 0.86 | 1.8 | 0.6 | 7 | 2.5 | 22 | 1810 | 1970 | 500 |
| Y.YKS3555-2 | 355 | 42.4 | 2975 | 93.7 | 0.86 | 1.8 | 0.6 | 7 | 2.7 | 24 | 1870 | 2030 | 500 |
| Y.YKS3556-2 | 400 | 47.6 | 2975 | 94.1 | 0.86 | 1.8 | 0.6 | 7 | 2.9 | 27 | 1975 | 2135 | 500 |
| Y.YKS3551-4 | 220 | 26.7 | 1485 | 93.3 | 0.85 | 1.8 | 0.8 | 6.5 | 3.5 | 77 | 1650 | 1815 | 1000 |
| Y.YKS3552-4 | 250 | 30.3 | 1485 | 93.4 | 0.85 | 1.8 | 0.8 | 6.5 | 3.5 | 87 | 1700 | 1870 | 1000 |
| Y.YKS3553-4 | 280 | 33.5 | 1485 | 93.5 | 0.86 | 1.8 | 0.8 | 6.5 | 3.8 | 96 | 1730 | 1903 | 1000 |
| Y.YKS3554-4 | 315 | 37.7 | 1485 | 93.6 | 0.86 | 1.8 | 0.8 | 6.5 | 4.3 | 107 | 1740 | 1914 | 1000 |
| Y.YKS3555-6 | 220 | 27.8 | 990 | 93 | 0.82 | 1.8 | 0.8 | 6 | 7.8 | 210 | 1820 | 1984 | 2000 |
| Y.YKS3556-6 | 250 | 31.4 | 990 | 93.3 | 0.82 | 1.8 | 0.8 | 6 | 8.3 | 235 | 1880 | 2049 | 2000 |
Applications of YKS Series Motors
Energy & Power Industry
Thermal Power Plants: Boiler feed pumps, induced draft fans, forced draft fans.
Hydropower Stations: Auxiliary turbine equipment, large water pumps.
Nuclear Plants: Cooling water circulation pumps, emergency backup systems.
01
Oil & Gas
Oilfield Extraction: Water injection pumps, compressors, oil transfer pumps.
02
Chemical & Petrochemical
Fertilizer/Pesticide Production: Large pumps, granulators.
03
Water & Municipal Engineering
Water Treatment Plants: Large pumps, sewage treatment equipment.
Urban Water Supply: Booster pump stations, water transmission systems.
04
Key Advantages of YKS Series Motors
1. Energy Efficient: Meet IE3 efficiency standards , ideal for energy-saving retrofits.
2. Wide Adaptability: IP54/IP55 protection , suitable for humid, dusty, or high-temperature environments.
3. High Reliability: Premium insulation materials ensure long-term continuous operation .
Choose Water Pump High Voltage Motor– SIMO YKS Series Choose Simo, Choose Quality! Contact email: sales@simo-motor.com.cn
