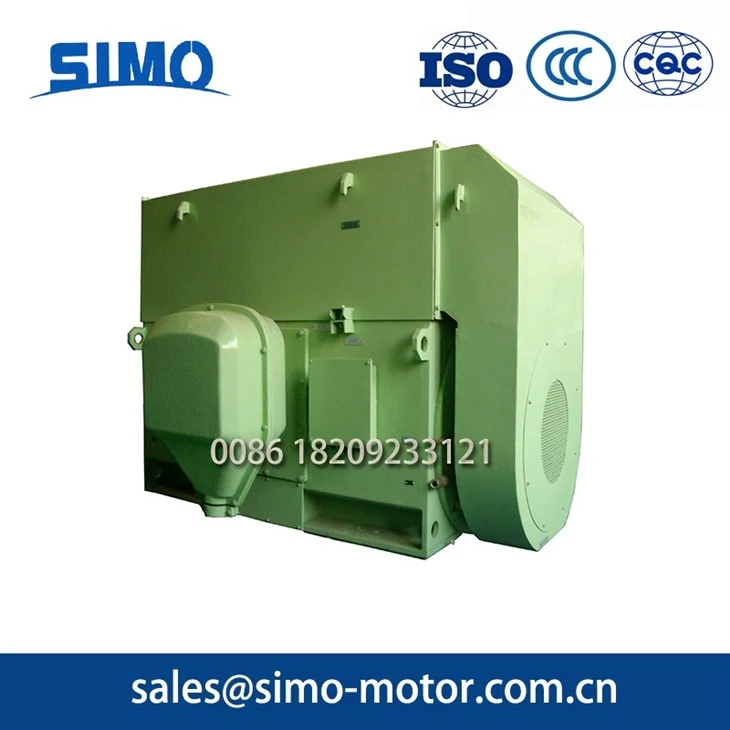

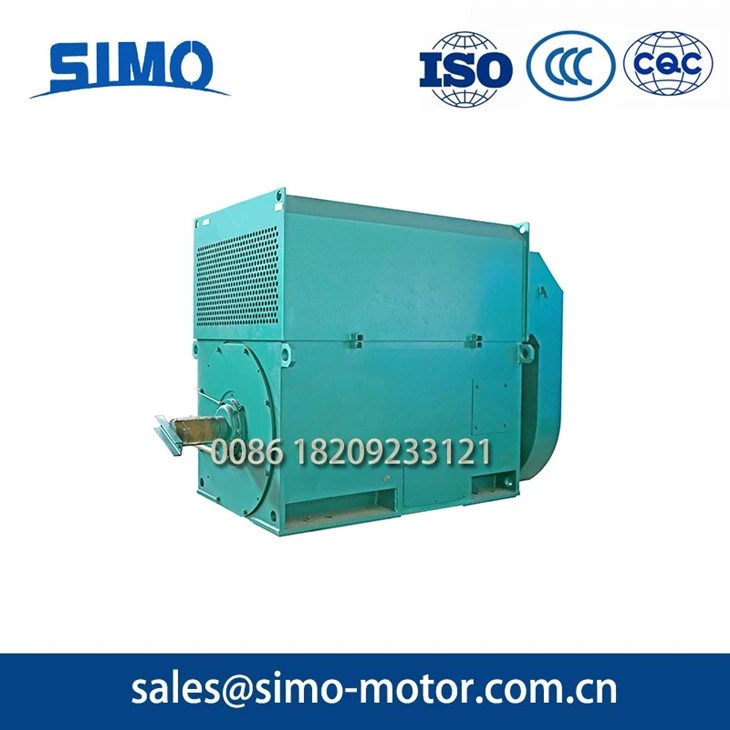

YKK-560 Brief Introduction

This series of motors is a 6kv high voltage motor squirrel-cage three-phase asynchronous motor with a center height of 560mm, featuring a closed structure and compliance with the JB/T 10315.2-2002 standard.

Basic Parameters

Frame Size Range : 560mm

Rated Voltage : 6kV (customizable)

Rated Frequency : 50Hz / 60Hz

Speed Range : 3000rpm (2-pole), 1500rpm (4-pole), 1000rpm (6-pole), 750rpm (8-pole), 590rpm (10-pole),495rpm (12-pole)

Power Range : 355kW ~ 1800kW

Mounting Type : IMB3 (horizontal, foot-mounted)

Protection Class : IP54 / IP55 (optional)

Cooling Method : IC611 (air-to-air cooling)

Insulation Class : Class F

Operating Environment Requirements :

Ambient Temperature: -15℃ ~ +40℃

Humidity: Monthly average relative humidity ≤90% (monthly average minimum temperature ≤25℃)

YKK-560 Series Model List

YKK5601-2 YKK5602-2 YKK5603-2 YKK5601-4 YKK5602-4

YKK5603-4 YKK5601-6 YKK5602-6 YKK5603-6 YKK5601-8

YKK5602-8 YKK5603-8 YKK5601-10 YKK5602-10 YKK5603-10

YKK5604-10 YKK5601-12 YKK5602-12 YKK5603-12 YKK5604-12

YKK 6kV high voltage motor 560 frame size motor data sheet

Type	Rated Power (kW)	Rated Current (A)	Speed (r/min)	Efficiency (%)	Power Factor (cos φ)	Max. Torque (Rated torque)	Locked Torque (Rated torque)	Locked Current (Rated current)	J (Motor) (kg·m²)	J (Load) (kg·m²)	Mass (kg)	Lubrication Time (h)
YKK5601-2	1400	160.5	2980	95.4	0.88	1.8	0.6	7	16.9	73	6570	500
YKK5602-2	1600	183.2	2980	95.5	0.88	1.8	0.6	7	18.8	80	6880	500
YKK5603-2	1800	205.9	2980	95.6	0.88	1.8	0.6	7	25.2	86	7210	500
YKK5601-4	1250	143.6	1485	95.2	0.88	1.8	0.6	6.5	66	315	6890	1000
YKK5602-4	1400	160.6	1485	95.3	0.88	1.8	0.6	6.5	70	345	7040	1000
YKK5603-4	1600	183.4	1485	95.4	0.88	1.8	0.6	6.5	77	373	7340	1000
YKK5601-6	900	107.3	990	95	0.85	1.8	0.7	6.5	99	737	6880	2000
YKK5602-6	1000	119	990	95.1	0.85	1.8	0.7	6.5	108	797	7130	2000
YKK5603-6	1120	133.2	990	95.2	0.85	1.8	0.7	6.5	122	875	7480	2000
YKK5601-8	630	78.2	740	94.5	0.82	1.8	0.8	6	113	1360	6160	2000
YKK5602-8	710	88.1	740	94.6	0.82	1.8	0.8	6	128	1510	6340	2000
YKK5603-8	800	99.1	740	94.7	0.82	1.8	0.8	6	145	1650	6540	2000
YKK5601-10	500	65.9	590	93.6	0.78	1.8	0.8	6	124	2120	6100	3000
YKK5602-10	560	73.7	590	93.7	0.78	1.8	0.8	6	142	2350	6400	3000
YKK5603-10	630	82.9	590	93.8	0.78	1.8	0.8	6	158	2610	6750	3000
YKK5604-10	710	93.2	590	94	0.78	1.8	0.8	6	160	2720	7040	3000
YKK5601-12	355	49.6	495	93	0.74	1.8	0.7	6	119	2410	5884	3000
YKK5602-12	400	55.7	495	93.3	0.74	1.8	0.7	6	130	2670	6160	3000
YKK5603-12	450	62.7	495	93.4	0.74	1.8	0.7	6	144	2870	6420	3000
YKK5604-12	500	69.4	495	93.7	0.74	1.8	0.7	6	156	2990	6680	3000

Product Features

✅ High Efficiency & Energy Saving : Optimized design, compliant with high-efficiency motor standards

✅ Low Noise & Low Vibration : Stable structure, smooth operation

✅ High Reliability : Class F insulation, vacuum pressure impregnation (VPI) process, moisture and temperature resistant

✅ Easy Maintenance : Enclosed structure, removable protective cover for convenient inspection

✅ Strong Adaptability : Suitable for various industrial loads

Structural Features

Frame : Welded steel box-type structure, high rigidity, lightweight

Stator : Slip-in external press-fit structure, Class F low-resin insulation, VPI process

Bearings : Rolling bearings or sliding bearings (selected based on power and speed)

Protection Design : IP54/IP55, some models can be upgraded to higher protection levels

Application Fields

General Industry : Fans, compressors, pumps, crushers, conveying equipment

Power Industry : Power plant auxiliary drives

Mining/Metallurgy : Crushers, ball mills, conveying systems

Others : Chemical, building materials, machining, etc.

Model Explanation (Example: YKK5601-4)

YKK : Enclosed squirrel-cage rotor asynchronous motor with air-to-air cooler

5601 : Center height 560mm, No.1 core length

4 : 4-pole motor (1500rpm)

YKK 6kV high voltage motor catalog dimensions

YKK 6KV medium voltage electric motors

Ordering Instructions

⚠ Important Notes :

Belt drive is prohibited for 2-pole and 4-pole motors (consult for exceptions)

2-pole motors default to clockwise rotation (specify if counterclockwise rotation is required)

Special voltage/frequency requirements must be negotiated in advance

Summary

The Xi'an Simo YKK series high-voltage motors are suitable for heavy-duty industrial environments, featuring high efficiency, reliability, and easy maintenance. They are widely used in mining, power, metallurgy, and other industries. Pay attention to pole number, rotation direction, and drive restrictions when ordering.

YKK-560-6kv high voltage motor, Choose Simo, Choose Quality!
