Product Introduction

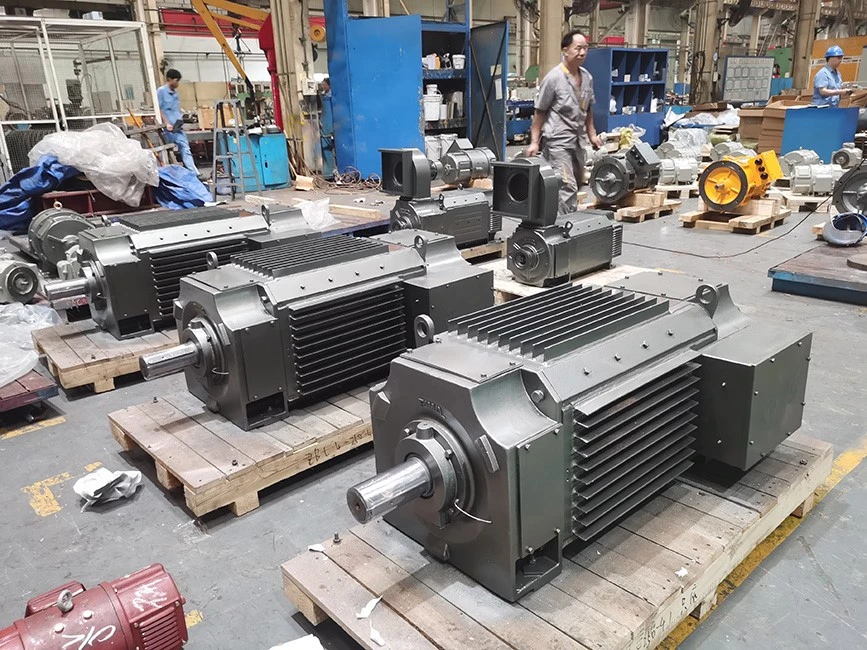

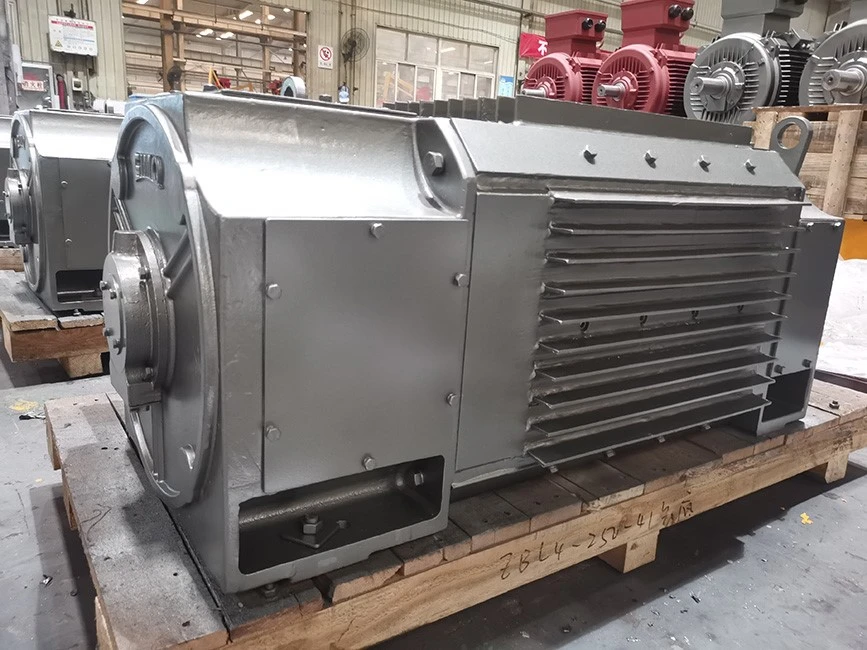

SIMO ZBL4 series fully enclosed direct-cooled DC motor adopts fully stacked machine base, so it is suitable for the working condition of static rectifier power supply, and can withstand the current change rate that can not be achieved by the whole base, the stator adopts octagonal structure, the space utilization rate is extremely high, the magnetic pole installation and positioning is accurate, and the computer-aided design is used to make the electrical parameters control appropriate, so the commutation performance of the motor is good, and the outer surface of the base has special heat dissipation ribs, which increases the effective heat dissipation surface area of the motor. As a result, the output power at the effective volume of the motor is increased.

Product Center

Insulation Performance

The motor is made of F-pole insulation. The insulation structure is novel and reliable, which ensures stable insulation performance and good heat dissipation.

Stability

The motor with a rated voltage of 400 volts or 440 volts can operate stably for a long time under the condition of three-phase fully controlled bridge rectifier power supply and no external DC flat wave reactor.

Special Voltage Specifications

The motor with a rated voltage of 160 volts is powered by a single-phase bridge rectifier power supply, which suppresses the pulsating current, and a DC flat wave reactor must be connected to the motor circuit, and its inductance value is shown in the technical data sheet.

Dimensional Standards

The mounting dimensions of this series of motors are in accordance with the international standard IEC72, except for the axial dimension "B" between the two foot holes

The data in the technical data sheet shall work according to the following conditions of use

The altitude does not exceed 1000 meters;
The ambient air temperature is not more than 40 degrees Celsius;
Save

The working environment should not contain acidic, alkaline or other gases that corrode the insulation; The motor is continuous duty (S1);

The armature circuit and excitation circuit of the motor can be powered by the static rectifier power supply, and it is also suitable to be powered by the DC generator:

The performance of this motor series complies with the International Electrotechnical Commission (IEC) standard IEC 34-1 or the German national standard DIN 57530.

Other Considerations

The standard rated voltage of the motor is 160 volts and 440 volts, and it can also be derived from 220 volts, 400 volts or other voltages according to the specific situation;

The rated speed of the motor is 3000, 1500, 750 rpm, a total of 4 gears. Reduce the excitation voltage to constant power speed regulation, see the technical data sheet for the speed regulation range, and reduce the armature voltage to constant torque speed regulation. Under the condition that the armature current is continuous, the minimum speed is 20 rpm, and the rated torque can still be maintained at this time, and the speed is stable;

The standard excitation voltage is 180 volts, other excitation voltages can also be negotiated, in order to ensure the reliability of the insulation of the excitation system, when the excitation circuit is disconnected, the excitation winding must be connected in parallel at both ends of the excitation winding resistor - a release resistor to prevent self-induction

The value of the excitation voltage is about seven times the excitation winding resistance (cold state), when the excitation voltage is higher than the standard value, the parallel release resistance value can be less than seven times, and vice versa is greater than seven times;

The outlet box of the motor is provided with a grounding mark binding post;

Main Technical Parameters

Frame:	H250
Power Scope:	40kW
Voltage:	160V, 220V, 400V,
Frequency:	50Hz
Number of Poles:	2P,4P, 6P,
Speed	3000rpm,1500rpm,750rpm
Cooling Mechod	IC0041
Protection Grade	IP44
Insulation Class	F(155℃), H(180℃)
Duty:	S1,
Mounting Type	IMB3, IMB5, IMB35, IMV1, IMV15, IMv3, IMV36,

MOTOR

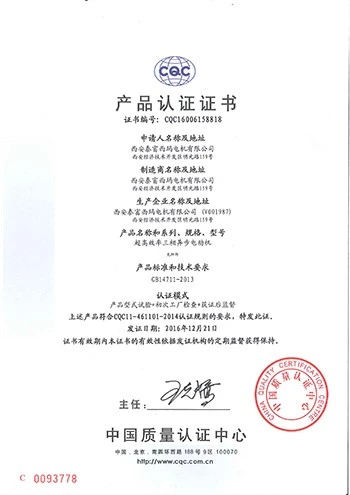

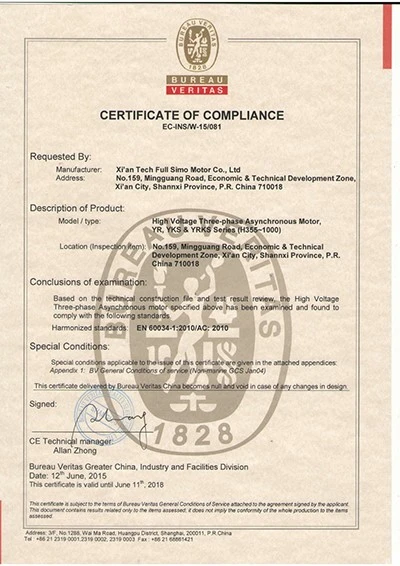

Display of some certificates

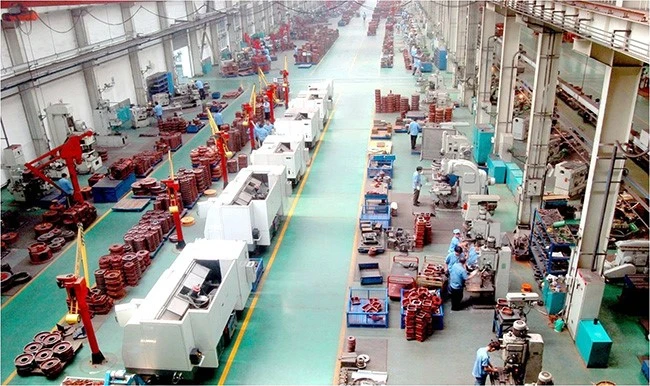

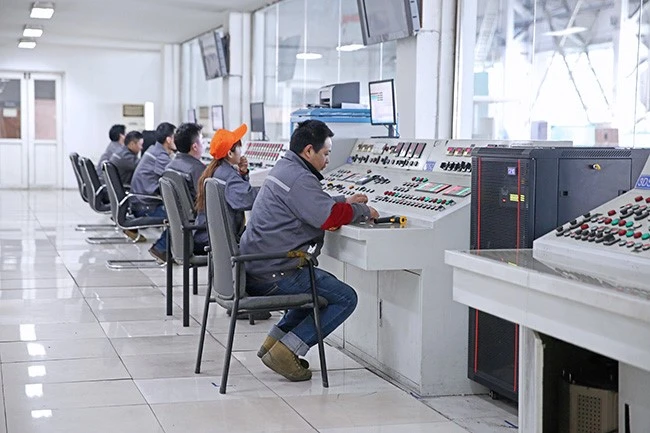

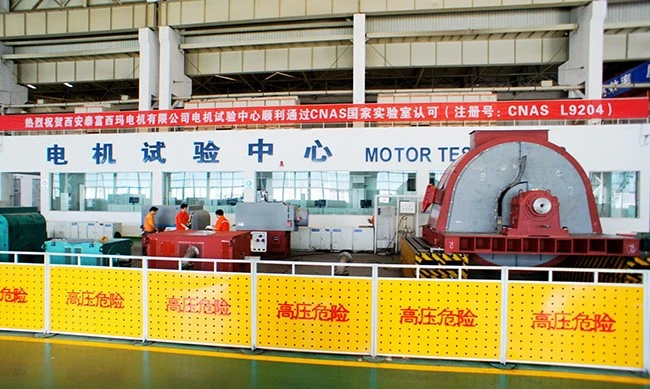

INTRODUCTION OF SIMO MOTOR FACTORY

Company profile

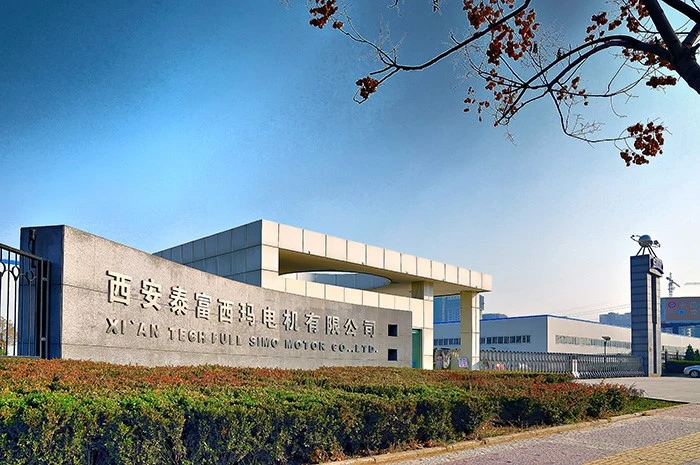

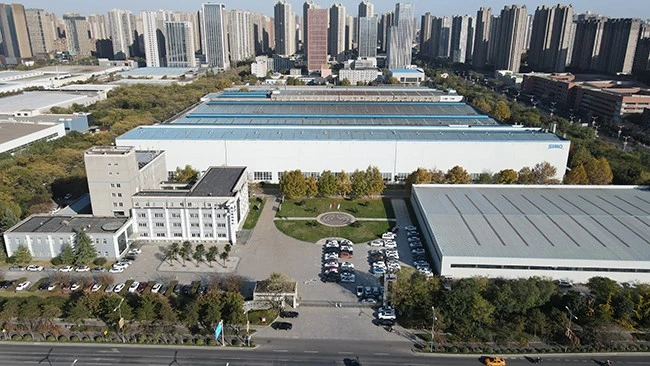

Xi'an Simo Motor Co., Ltd. (formerly Xi'an Simo Motor Factory) is a professional manufacturer of electric motors in China's machinery industry. The motors it produces include large - and medium - sized, high - and low - voltage, AC and DC motors, synchronous motors, high - efficiency motors, and explosion - proof motors. It is a power system provider integrating motor design and manufacturing, mechanical processing, and automation complete engineering.

The company was established in 1955 and has a history of 70 years in motor production and sales.

Simo Motor holds over 120 invention patents for its products. It has 34 major product series, including more than 1,800 sub - categories and a total of over 19,500 specifications.

In 2017, it passed the ISO9001 - 2015 quality management system certification of the China Quality Certification Center (CQC).

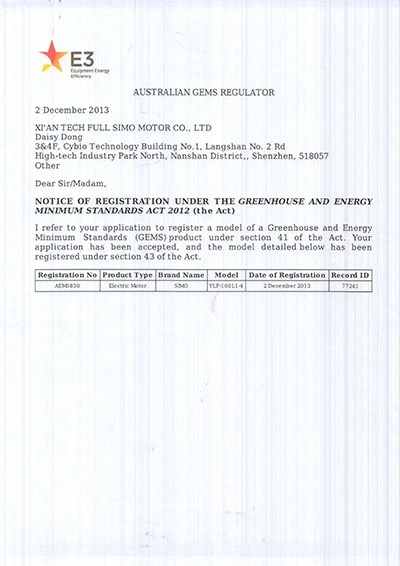

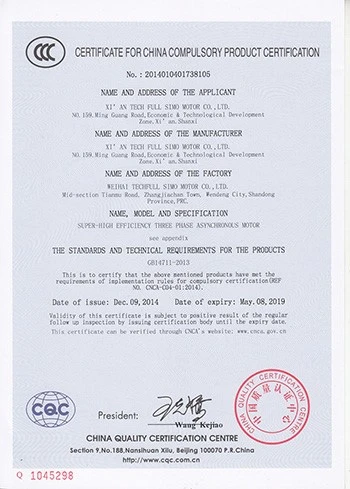

It has also obtained certifications such as the EU "CE", Australian "GEMS", South Korean "KC", Russian "GOST", Chinese "CCC", and energy - saving certification.

Fully enclosed direct-cooled DC motor, Choose Simo, Choose Quality!
