ZTP Type DC Auxiliary Motor

ZTP type DC auxiliary motor is specially used for air compressors for diesel locomotives and power vehicles, and is used to drive air compressors for deceleration and braking of locomotives and motor vehicles. The motor can withstand the impact and vibration generated during the normal operation of the locomotive EMU, and the motor can operate normally when rain, snow, wind and sand invade.

Send Inquiry

ZTP -180 DC auxiliary motor is specially used for air compressors for diesel locomotives and power vehicles, and is used to drive air compressors for deceleration and braking of locomotives and motor vehicles.

SIMO ZTP-180 motor adopts a new type of fully laminated octagonal frame, which has high stator space utilization, small size, small moment of inertia, good dynamic performance, and can withstand pulse current and high current change rate. The motor can withstand the impact and vibration generated by the normal operation of the locomotive and the EMU, and the motor will operate normally when the locomotive is subjected to rain, snow, wind and sand.

Structural type
The basic installation type of the motor
1. Horizontal, frame with feet (IMB3)
2. According to the needs of users, it can also be made into other installation types, single-shaft extension or double-shaft extension motors, and single-shaft extension motors can be equipped with tachogenerators or other speed measuring devices at the non-transmission end.
3. The position of the motor outlet box of IMB3 and IMB35 installation type is from the transmission end, on the left side of the frame (for the positive box), and if the user needs, it can also be on the right side of the frame (for the reverse box), or above the frame. IMBl0 and IMVl0 mounted motors do not have an outlet box.
4. The basic direction of rotation of the motor is regarded as counterclockwise rotation from the transmission end.

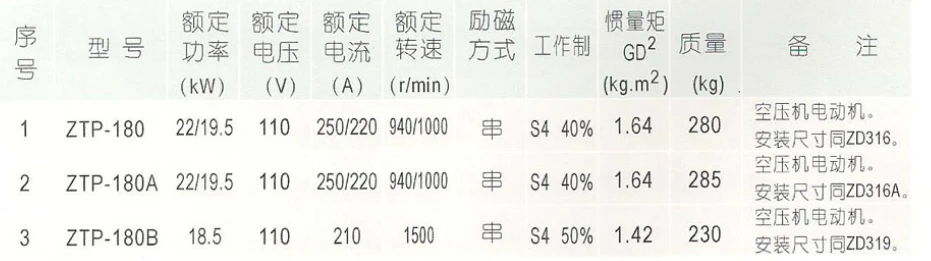

ZTP 180

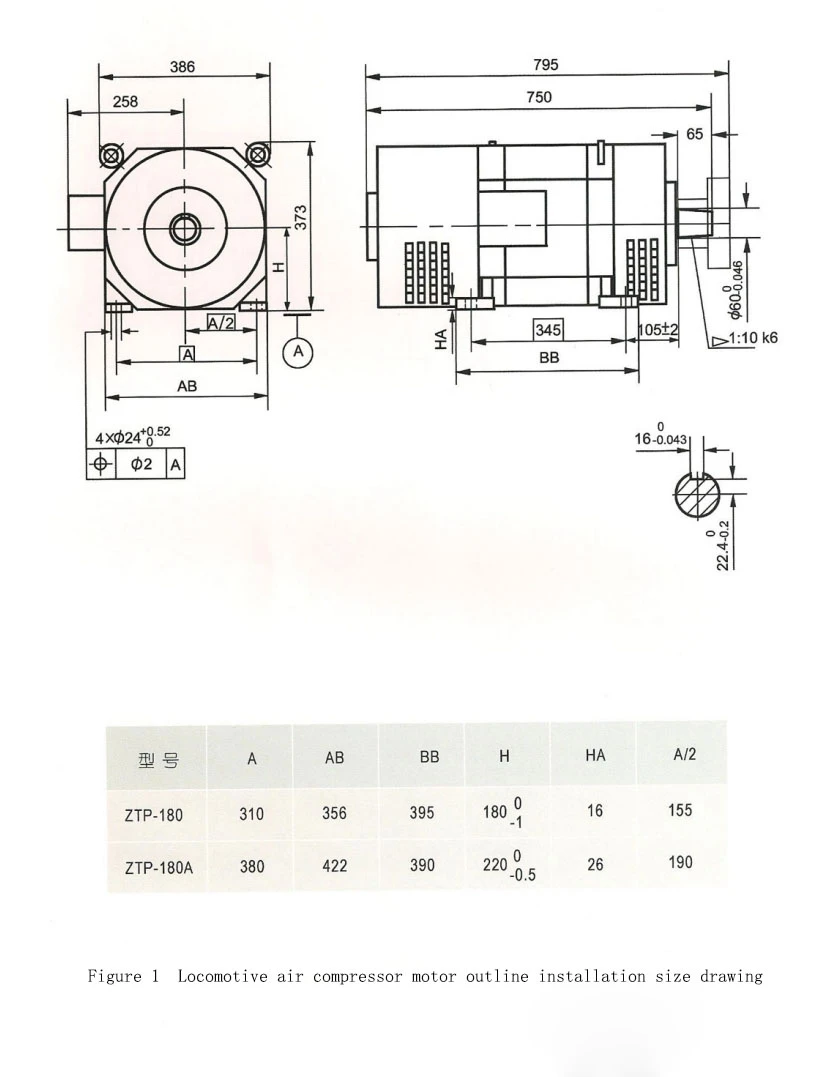

A1801

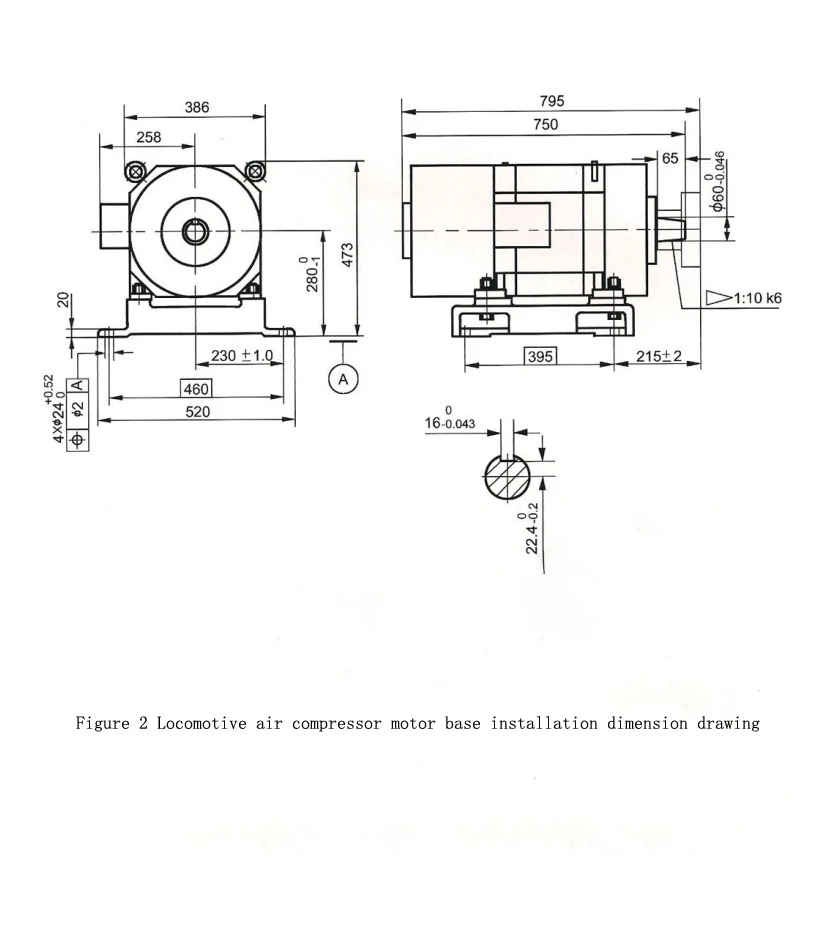

A18022

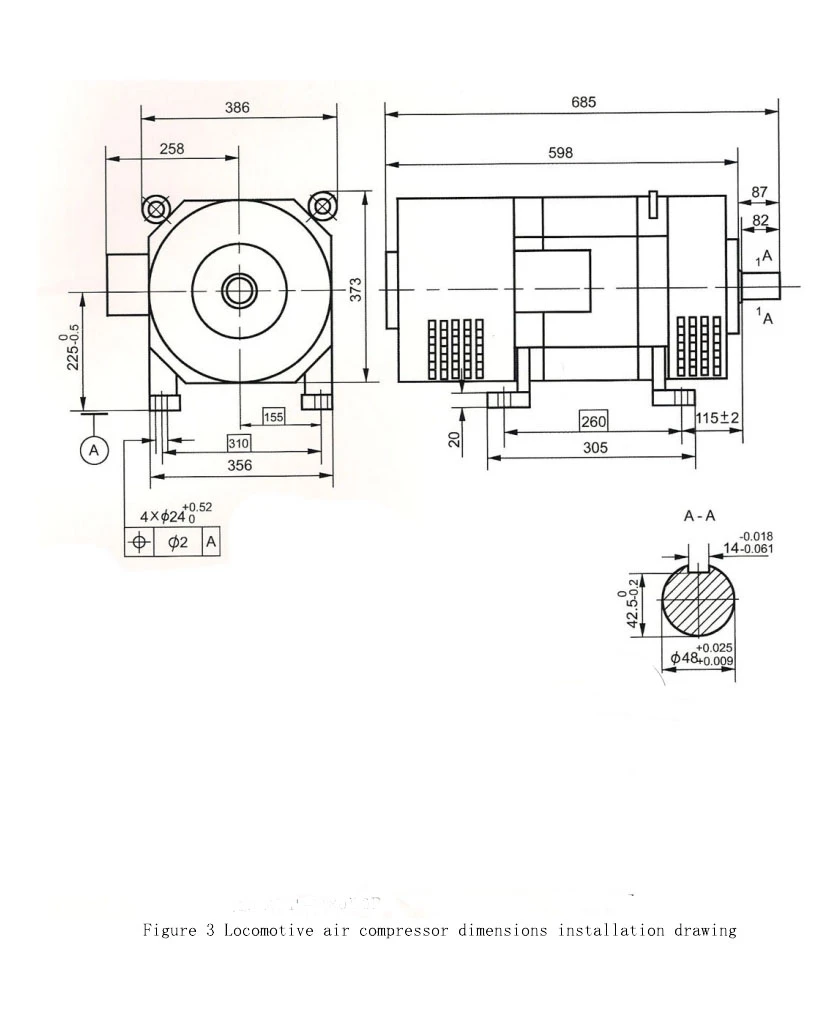

A1803

Frame:	H180
Power Scope:	18.5KW,19.5KW,22KW
Voltage:	110V
Frequency:	50Hz
Number of Poles:	2P
Speed	1500 rpm,1000 rpm
Cooling Mechod	IC01
Protection Grade	IP22
Insulation Class	-40℃~+45℃
Duty:	S1,
Mounting Type	IMB3/B35/V1

Related Models: ZTP-180 ZTP-180A ZTP-180B

Ordering instructions
1. Before ordering, please consult the product sample, clarify the technical data such as the model specifications of the required product, if there is a discrepancy between the required varieties and specifications and the sample, please contact our factory, if there are special requirements, please put forward specific requirements in advance, and sign a contract or technical agreement after consultation and agreement between the two parties.
2. When ordering, please indicate the motor model, power, voltage, speed, working system, structure installation type, excitation mode, excitation voltage, number of shafts, outlet box position, rotation direction, and required accessories, spare parts name, quantity, etc.
3. If you need to go abroad with a package, please indicate in the contract if there are wet tropical requirements.
