Main Data
Model 1: ZSN4-315-092-315Kw
Model 2: ZSN4-315-092-220Kw
Center height：315mm
Speed：1000r/min 1500 r/min
Power scope：315Kw, 220Kw
Mounting type：IMB3 IM1001
Rated voltage: 440V,460V,660V etc.
Rated excitation voltage: 220V,180V
Insulation：F Grade or H Grade
Protection：IP21S, IP44
Cooling type： IC06,IC17, IC37
Altitude:≤1000m
Mounting type：IMB3
The medium temperature is no more than-15℃ 40℃
Duty : S1
Introduction

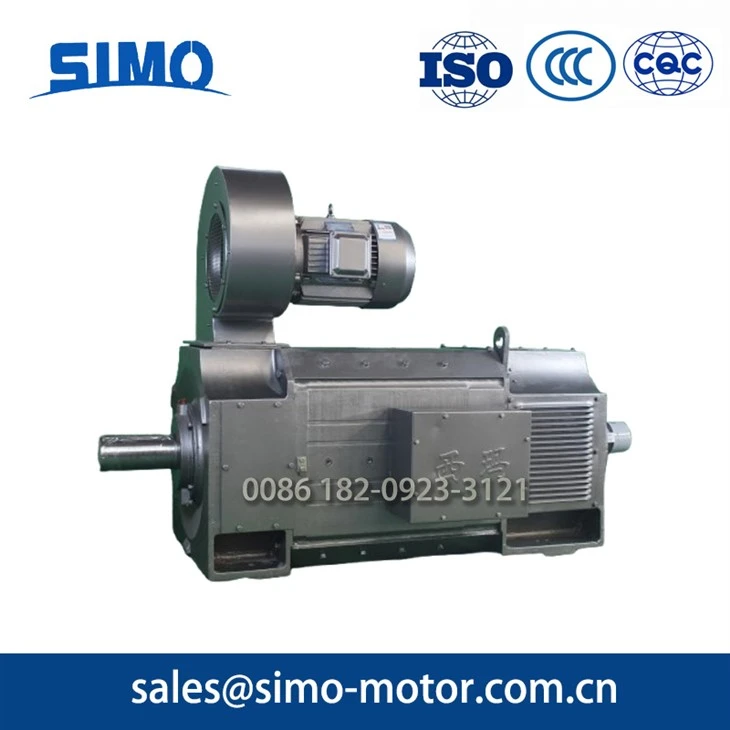

ZSN4-315-092 is a large size 315kw cement rotary kiln DC motor with a rated voltage of 440V and insulation class F. This motor is made by Xian Simo Motor Company and is suitable for cement plants and lime plants, using IM1001 horizontal installation method.
ZSN4-315-092 is a 315KW DC motor with the following main parameters and characteristics:
Rated power: 315KW
Rated voltage: 440V
Rated speed: 1000rpm
Rated torque: 12580Nm
Rated current: 770A
Efficiency: 93%
Insulation class: Class F
Protection class: IP21
Excitation mode: Externally excited
Casing protection mode: Protective
Motor structure: Brushed
Scope of application: Industrial
Product certification: CCC certification
Application scenario: This motor is suitable for industrial use, especially widely used in industrial equipment such as cement rotary kilns.
Great Materials
China Simo Make ZSN4 DC motor adopts best materials for stator, rotor and commutator to ensure the perfect performance and high efficiency.
Performance
For the duct and cooled motor, the wind of the air should meet the requirements in the following table. The air inlet is on the non-commutator side end cover of the motor.
|
Frame |
Winding(m3/h) |
Static voltage(Pa) |
|
ZSN4-225 |
2880 |
1400 |
|
ZSN4-250 |
3000 |
1400 |
|
ZSN4-280 |
4000 |
1600 |
|
4680 |
1600 |
|
|
ZSN4-355 |
5200 |
1600 |
Ordering note
1,Please check product introduction , to confirm the motor type etc before ordering , please note power, voltage, speed ,exciting type ,exciting voltage, structure and mounting etc in the contract.
2,Please note some special requirements for two shaft extensions ,terminal box, testing-speed in the contract.
3,when the customers have some other needs, please contact us before .
