Main Data
Type: Brushes DC motor
Model1: ZDT-315-2-85kW
Model2: ZDT-315-2-135Kw
Model3: ZDT-315-2-160kW
Model4: ZDT-315-2-180kW
Voltage: 380V 440V 520V 415V
Exciting Mode: Separate
Exciting Voltage: 180V/220V/310V/300V
Cooling Method: IC06
Protection Grade: IP23,IP21S
Insulation: F 155 ℃, H 180℃
Speed: 500rpm, 750rpm, 1000rpm
Weight: 1500kg
Introduction
ZDT-315-2 series heavy duty dc motor is a new product designed and manufactured by China Simo Motor. with the latest technology based on our Z series medium-sized DC motor. It is specially used for sugar press roller drive. It is mainly used for sugar press roller machine and can meet the requirements of high efficiency, high reliability and high overload capacity of motors in the sugar making process. The cooling methods include IC06 (external ventilation with built-in blower), IC17 (cooling air inlet is pipe, outlet is shutter exhaust) and IC37 (cooling air inlet and outlet are pipes). The protection level is IP23 and IP44. The insulation level is F.
The machine base adopts a thin steel plate polygonal lamination structure with small size and light weight. The stator and rotor are vacuum pressure impregnated (VPI) with solvent-free paint, which has good moisture resistance and mechanical strength.
The base speed overload capacity is 2.5 times the rated current, and the high-speed overload capacity is 1.8 times the rated current. The current change rate (di/dt) is allowed to reach 200 times the rated current/second.
Sugar Mill DC motor, welcome to contact with SIMO motor!
Best Materials

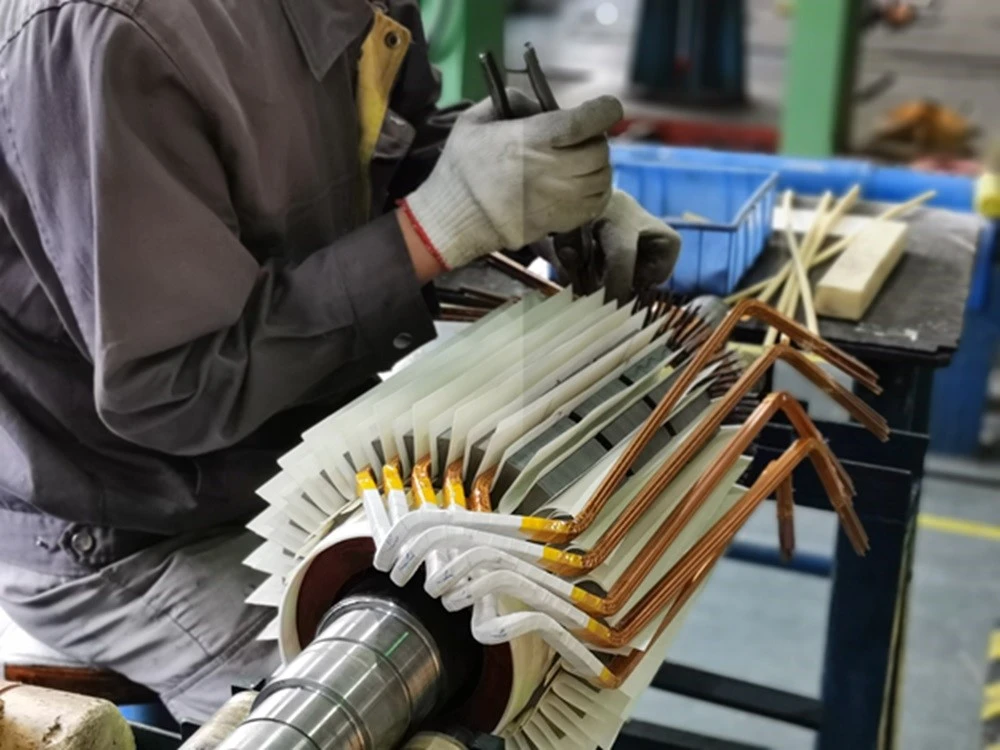

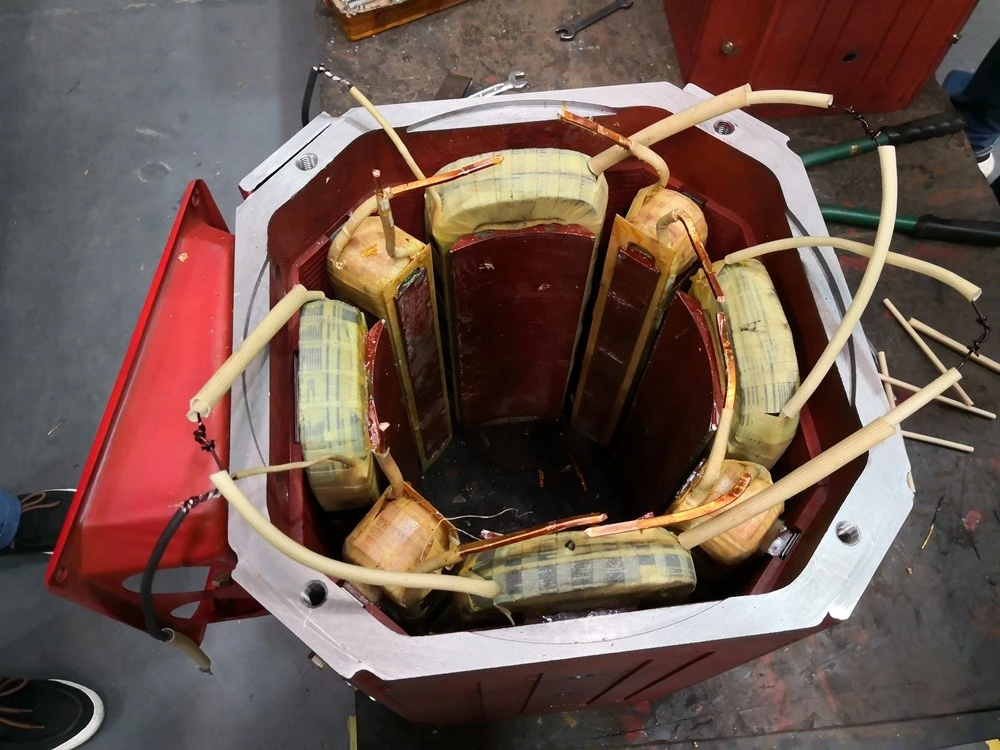

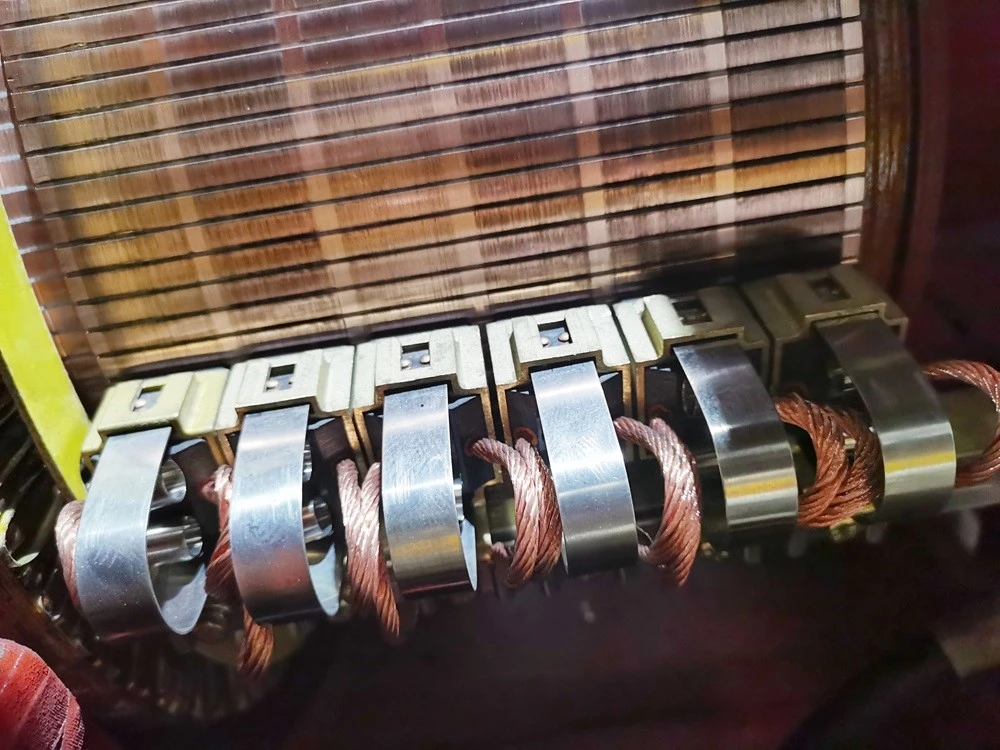

China Simo Make DC motor adopts best materials for stator, rotor and commutator to ensure the perfect performance and high efficiency.

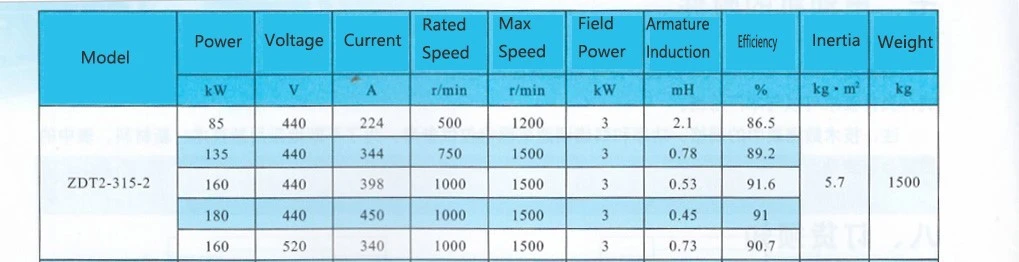

Data Sheet
Ordering note
1,Please check product introduction , to confirm the motor type etc before ordering , please note power, voltage, speed ,exciting type ,exciting voltage, structure and mounting etc in the contract.
2,Please note some special requirements for two shaft extensions ,terminal box, testing-speed in the contract.
3,when the customers have some other needs, please contact us before .
