Main Parameters
Center height：355mm Speed：1000 rpm~2000rpm
Power scope：280KW Mounting type：IMB3 foot mounting
Rated voltage: 440V Rated excitation voltage: 220V
Insulation：F级 Protection：IP21S
Cooling type：IC06
Altitude:≤1000m
Mounting type：IMB3
The medium temperature is no more than 40℃
Duty : S1
Introduction

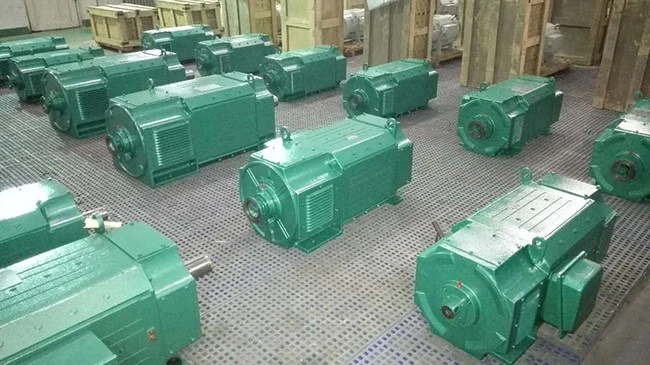

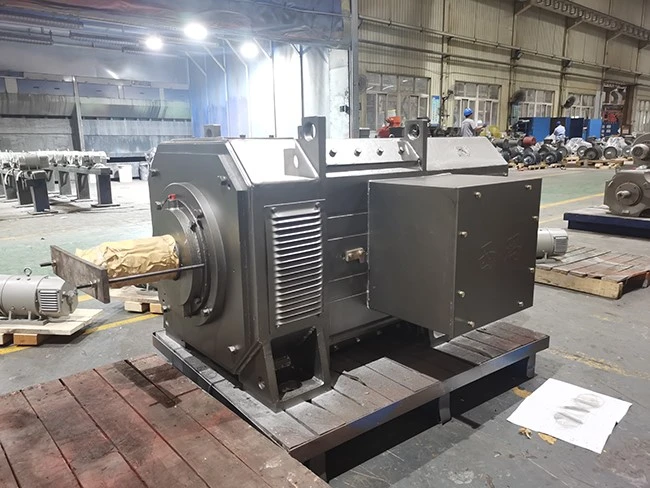

ZSN4-355-082-280Kw DC motor is a high-performance cement industry DC motor produced by SIMO Motor Factory, designed for cement rotary kiln main drive. The following are some main features and parameters of this motor:
Rated power: 280KW DC motor
Rated voltage: standard is 440V, and other voltage options such as 220V, 400V, 660V are also available
Rated speed: 1000RPM
Protection level: IP23S/IP44, with good protection performance.
Cooling method: IC06/IC17/IC37 DC motor, duct ventilation cooling, suitable for dusty environment
Insulation level: F class, using reliable insulation structure and impregnation process to ensure stable insulation performance and good heat dissipation
Starting torque: can reach 2.5 times the rated torque, suitable for the specific working conditions of cement rotary kiln
Armature rated voltage: 440V, other voltages can be derived according to user needs
Rated excitation voltage: 180V, other excitation voltages can also be derived as needed
Structural features: The motor adopts a polygonal structure with high space utilization, and the stator yoke is a laminated type, which is suitable for rectifier power supply and can withstand pulsating current and rapid current changes
Installation dimensions: Except for the axial dimension "B" between the two bottom corner holes, it complies with the IEC72 international standard
This motor is an ideal choice for industrial applications such as cement rotary kilns due to its high efficiency, high starting torque DC motor and ability to adapt to harsh environments.
Great Materials

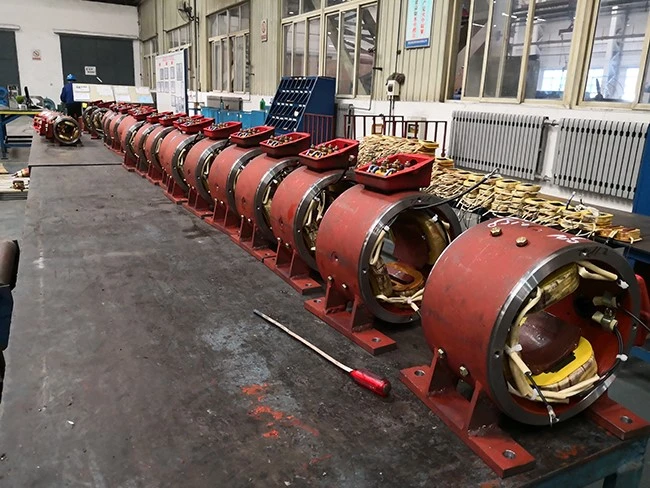

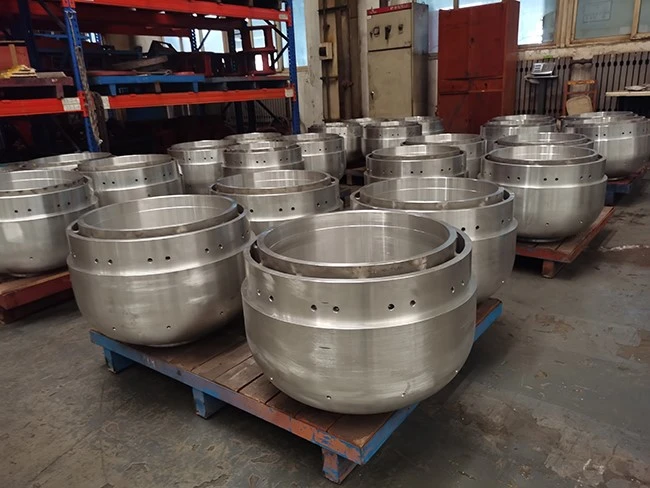

China Simo Make ZSN4 DC motor adopts best materials for stator, rotor and commutator to ensure the perfect performance and high efficiency.
Performance

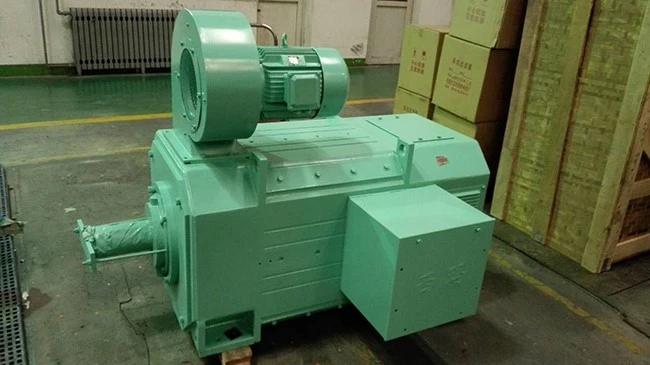

For the duct and cooled motor, the wind of the air should meet the requirements in the following table. The air inlet is on the non-commutator side end cover of the motor.
|
Frame |
Winding(m3/h) |
Static voltage(Pa) |
|
ZSN4-225 |
2880 |
1400 |
|
ZSN4-250 |
3000 |
1400 |
|
ZSN4-280 |
4000 |
1600 |
|
4680 |
1600 |
|
|
ZSN4-355 |
5200 |
1600 |
Ordering note
1,Please check product introduction , to confirm the motor type etc before ordering , please note power, voltage, speed ,exciting type ,exciting voltage, structure and mounting etc in the contract.
2,Please note some special requirements for two shaft extensions ,terminal box, testing-speed in the contract.
3,when the customers have some other needs, please contact us before .
