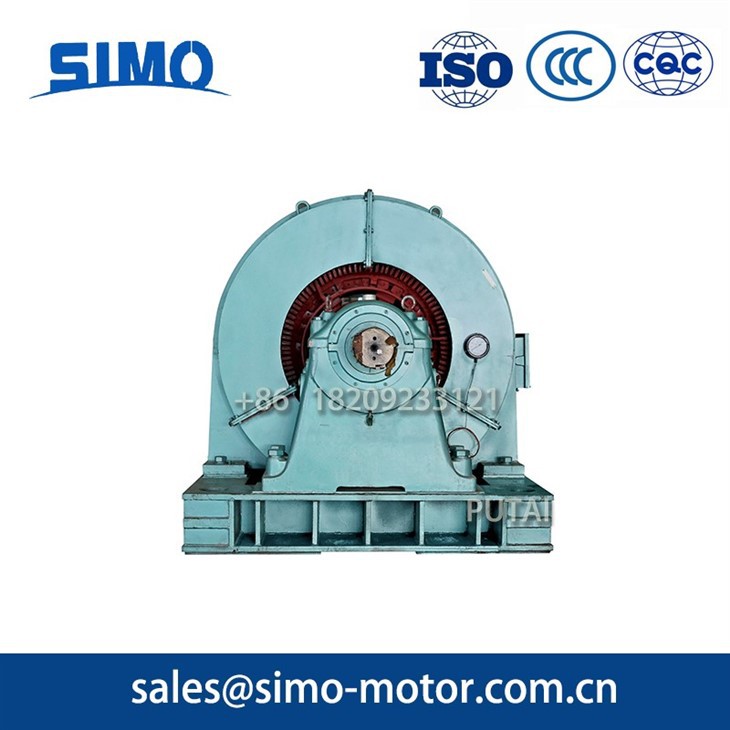

TDMK Series Synchronous Motor

T series synchronous motors are applied to drive fan, water pump, motor- generator set and other universal machines. Their rated voltages is 6000V or 10000V as the customer request. The frequency is 50Hz. The rated power factor is 0.9 (leading). The motor is allowed to be started directly at full voltage. The rotor circuit should be series connected.

Send Inquiry

Main Data

Type: TDMK series synchronous motor

Model1: TDMK-280-32/2150

Model2: TDMK-800-36/2600

Power: 400~8000kw

Frame size: 280~3150mm

Voltage: 6000V,10000V

Rated Frequency: 50Hz

Cooling Method: open self-ventilation,duct or half duct ventilation,enclose self-circulation ventilation.

Protection Grade: IP55

Speed:1000rpm, 750rpm, 600rpm, 500rpm, 375rpm, 300rpm, 250rpm

Poles: 22P,32P,36P,40P

Insulation ：B class or F class

Introduction

T series synchronous are of horizontal.

T series motors can have one shaft end or two shaft end as well. They rotate in CCW direction as see from the ring collector. The rotation direction can be changed accordingly.

Frame: Integral construction welded by steel plate. The frame and the plain bearing housing are fixed on the base by the steel plate respectively.

Stator iron core: Laminated by 0.5mm silicon steer fan-shaped lamination. The two sides of fan shaped lamination is painted by insulating varnish. The stator iron core is fixed on the frame by tighting screw or the dovetail rib.

Stator coil: The coil is two layer lap winding. It has class B/F insulation and can prevent the corona. The end of the coil is wrapped tightly and be integral varnished.

Manetic coil: wound by flat copper wire and has class B/F insulation after be insulating treated.

Bearing: Composed of cast iron plain bearing housing and plain bearing half-liner casted with alloy. The lubricating method is oil-ring self lubricating or compound lubricating with outer oil system.

Brush and collector ring: The collector rings construction is assembling. The brush is fixed in the constant voltage brush box and connected by the conducting plate. The whole brush is fixed on the side of bearing.

Exciting mode: T series synchronous motors are excited by the thyristor exciting unit.

TDMK series synchronous motor, welcome to choose SIMO motor.

TDMK

TDMK1

Great Materials

China Simo Make TDMK series synchronous motor adopts best materials for stator, rotor and commutator to ensure the perfect performance and high efficiency.

STATOR
ROTOR
END COVER
ASSEMBLY

20210818181950

20210818181921

Ordering note

1,Please check product introduction , to confirm the motor type etc before ordering , please note power, voltage, speed ,exciting type ,exciting voltage, structure and mounting etc in the contract.

2,Please note some special requirements for two shaft extensions ,terminal box, testing-speed in the contract.

3,when the customers have some other needs, please contact us before .
