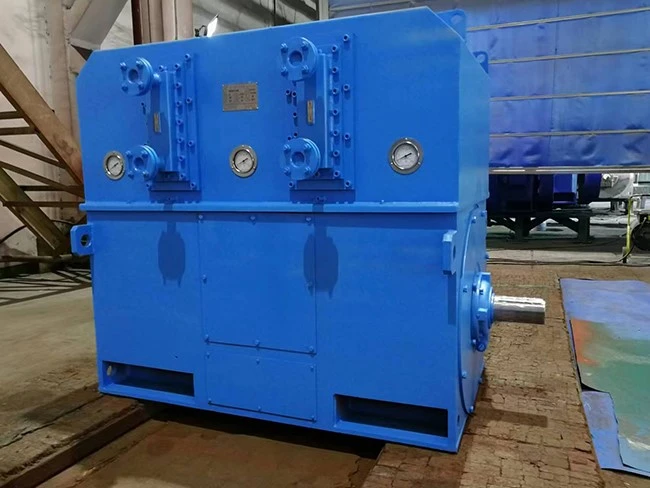

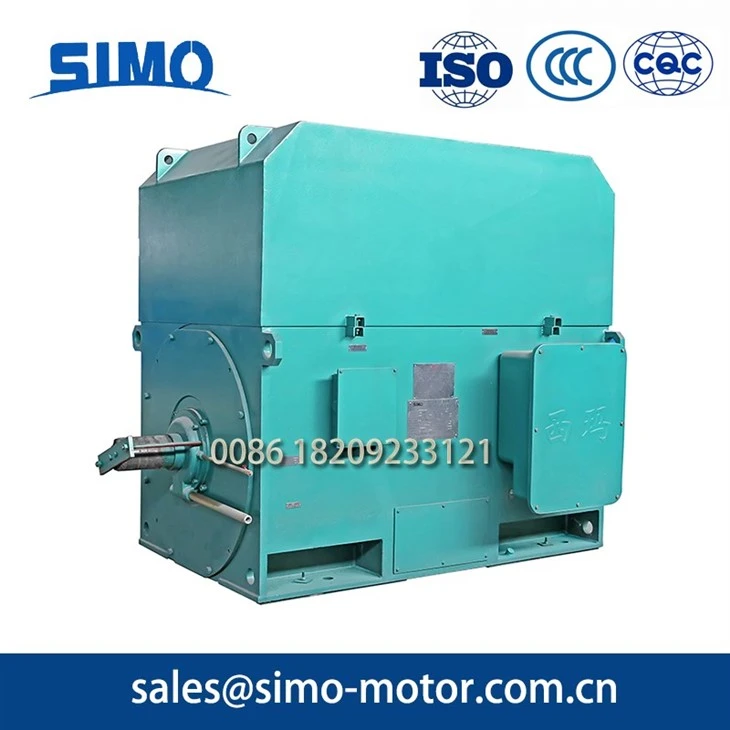

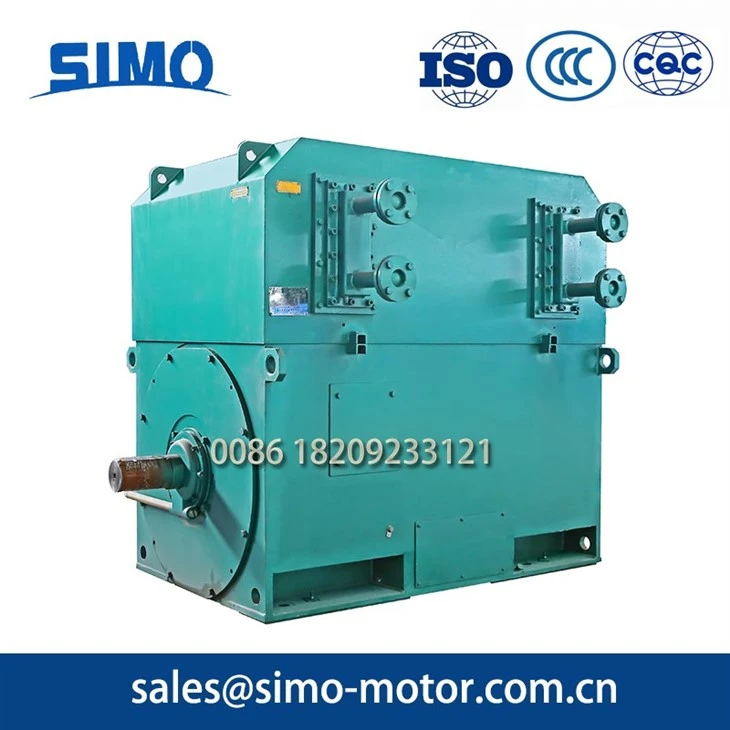

Product introduction

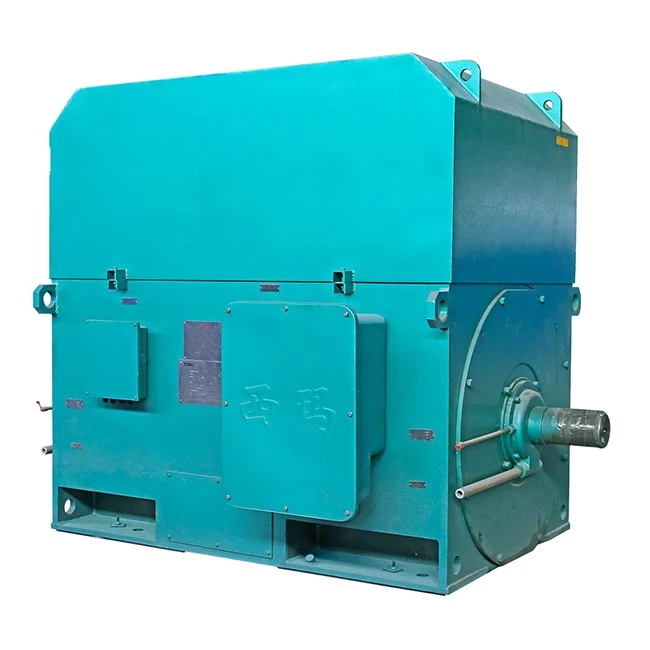

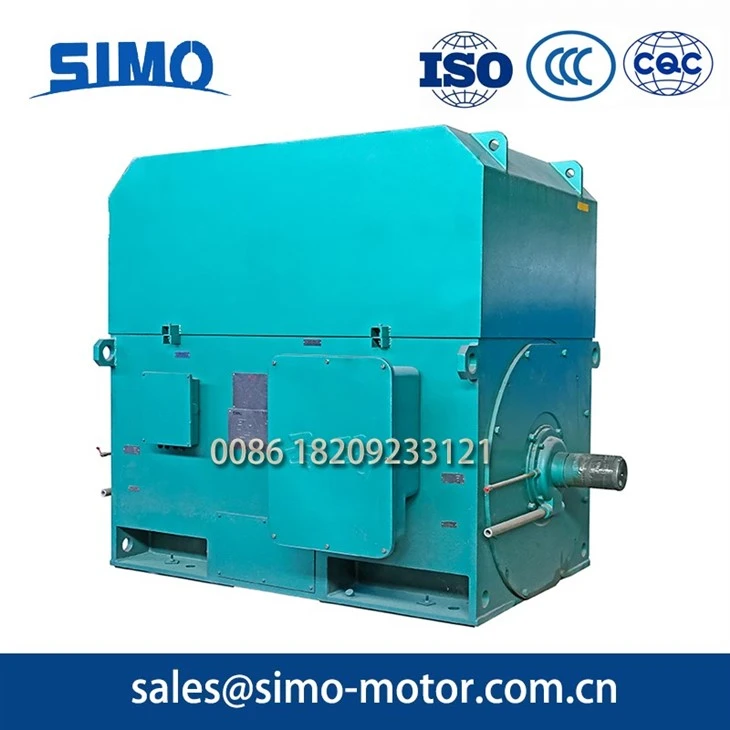

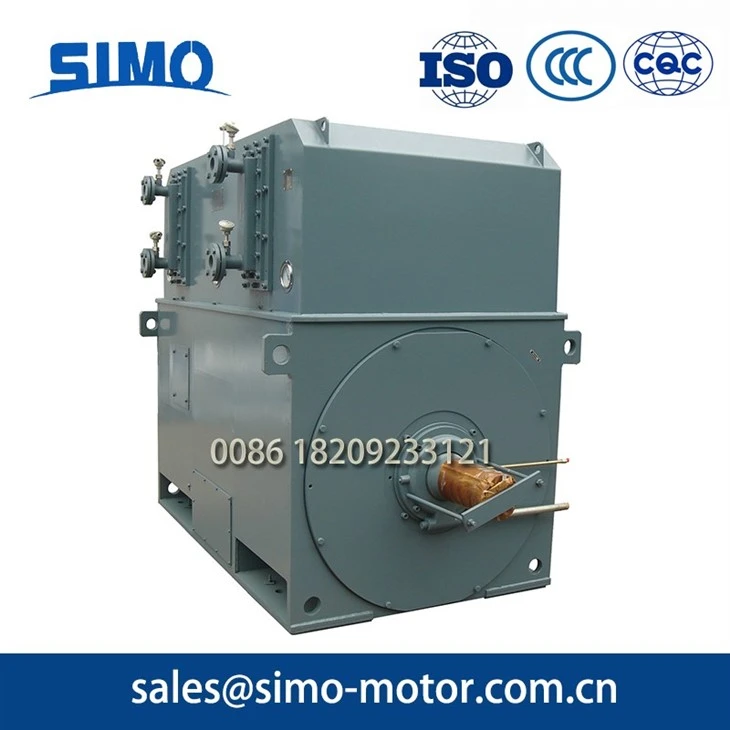

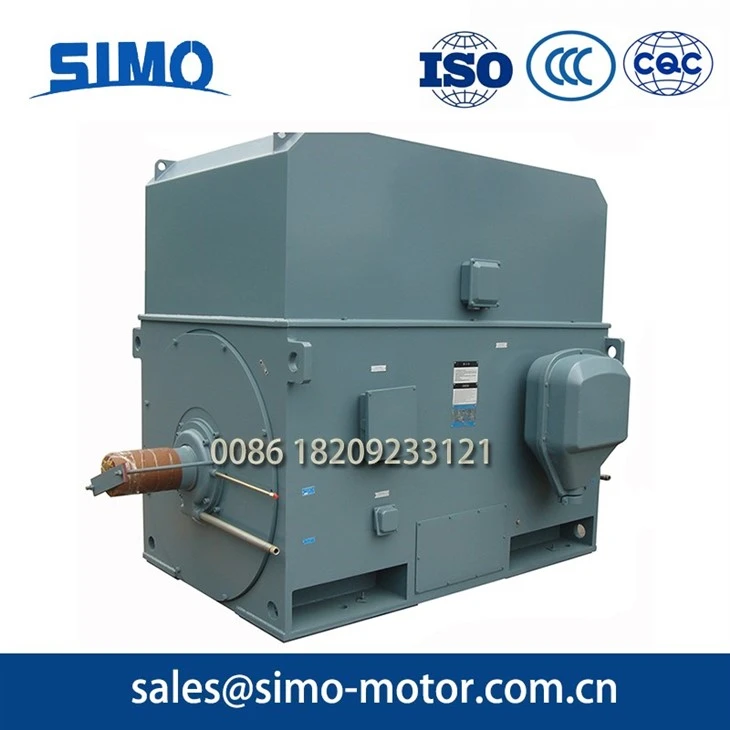

The YKS-450 series motors are primarily used in cement plants for driving high-power, heavy-duty, and continuously operating equipment, such as raw material mills, rotary kilns, fans, and dust removal systems in cement production lines.
The YKS series motors are high-voltage motors specially developed by SIMO Motor for cement plants. They feature energy-saving, high efficiency, durability, and convenient installation and maintenance , making them widely used in various cement manufacturing plants, chemical industries, and steel mills across China.
For more information on high-voltage motors for cement production
Energy saving
durable
high quality
Basic Parameters
YKS Series High Voltage Motor (6KV/10KV/Customizable)
Frame Size: 355–630 (6KV); 400–800 (10KV)(Customizable)
Rated Voltage: 6KV / 10KV (Customizable)
Rated Frequency: 50Hz
Speed: 3000rpm, 1500rpm, 1000rpm, 750rpm
Power Range: 220–3150KW
Mounting Type: IMB3
Protection Class: IP44 / IP54
Cooling Method: IC81W
Insulation Class: F
Ambient Temperature: Seasonal variations, max. 40°C; min. -15°C
Humidity: Max. 90% relative humidity in the wettest month, with an average monthly low ≤25°C.
About Our Products
Cement Plant Motor
Model Number Explanation
SIMO YKS Series High-Voltage Three-Phase Asynchronous Motor Model Number Explanation
Taking YKS4503-4 as an example:
"YKS" : Enclosed squirrel-cage rotor asynchronous motor with air-to-water cooler .
"4503" : Frame center height = 450mm ; "3" indicates the first iron core length .
"4" : Number of poles (4-pole motor ).
Manufacturing Reference Standards
1.The YKS Series 6KV/10KV (Customizable) three-phase induction motor (6KV: frame size 355–630; 10KV: frame size 400–800) features a squirrel-cage rotor design. It complies with JB/T 7593-2007 and JB/T 10315.1 technical standards.
2.Advantages include high efficiency, energy savings, low noise, minimal vibration, lightweight construction, reliable performance, and easy installation/maintenance.

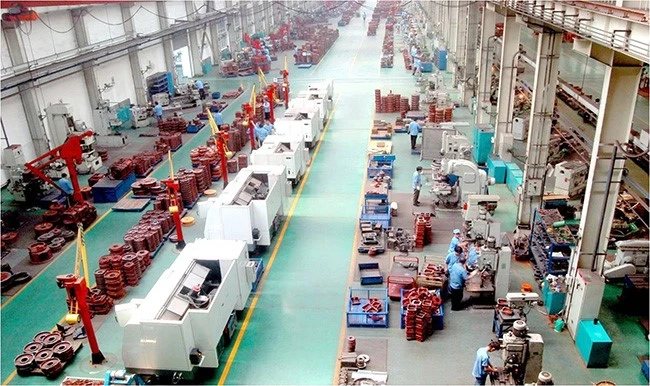

Motor production process
Stamping--Stator processing-- End cover processing--Motor housing processing --Fan cover processing--Varnish dipping--Painting--Assembly--Testing-- Warehousing
These 10 standardized production processes ensure the motor's excellent quality.
Motor Advantages
1. Energy Efficient: Meets IE3 efficiency standards , ideal for energy-saving retrofits.
2. Wide Adaptability: IP54/IP55 protection , suitable for humid, dusty, or high-temperature environments.
3. High Reliability: Premium insulation materials ensure long-term continuous operation .
Technical data sheet
| Type | Rated Power (kW) | Rated Current (A) | Speed (r/min) | Efficiency (%) | Power Factor (cos Φ) | Max. Torque / Rated Torque | Locked Torque / Rated Torque | Locked Current / Rated Current | J (Motor) (Kg.m²) | J (Load) (Kg.m²) | Y Mass (kg) | YKS Mass (kg) | Lubrication Time (h) |
| Y.YKS4501-2 | 710 | 82.7 | 2975 | 95 | 0.87 | 1.8 | 0.6 | 7 | 8.3 | 43 | 3440 | 3818 | 500 |
| Y.YKS4502-2 | 800 | 92.9 | 2975 | 95.2 | 0.87 | 1.8 | 0.6 | 7 | 8.9 | 51 | 3550 | 3841 | 500 |
| Y.YKS4505-4 | 630 | 73.5 | 1485 | 94.8 | 0.87 | 1.8 | 0.8 | 6.5 | 12.3 | 147 | 3030 | 3394 | 1000 |
| Y.YKS4506-4 | 710 | 82.7 | 1485 | 95 | 0.87 | 1.8 | 0.8 | 6.5 | 13.3 | 163 | 3110 | 3452 | 1000 |
| Y.YKS4505-6 | 450 | 54.7 | 990 | 94.3 | 0.84 | 1.8 | 0.8 | 6 | 17.8 | 400 | 2830 | 3141 | 2000 |
| Y.YKS4506-6 | 500 | 59.9 | 990 | 94.5 | 0.85 | 1.8 | 0.8 | 6 | 19 | 439 | 2920 | 3241 | 2000 |
| Y.YKS4506-8 | 315 | 40.6 | 740 | 93.4 | 0.8 | 1.8 | 0.8 | 5.5 | 19 | 588 | 2860 | 3210 | 2000 |
| Y.YKS4507-8 | 355 | 45.7 | 740 | 93.5 | 0.8 | 1.8 | 0.8 | 5.5 | 20.8 | 655 | 3000 | 3370 | 2000 |
| Y.YKS4504-10 | 200 | 27.2 | 590 | 91.9 | 0.77 | 1.8 | 0.8 | 5.5 | 23.5 | 710 | 2600 | 2886 | 3000 |
| Y.YKS4505-10 | 220 | 29.9 | 590 | 92.1 | 0.77 | 1.8 | 0.8 | 5.5 | 25.5 | 728 | 2670 | 2964 | 3000 |
| Y.YKS4507-12 | 200 | 29.3 | 495 | 91.2 | 0.72 | 1.8 | 0.8 | 5.5 | 30 | 1120 | 2790 | 3096 | 3000 |
| Y.YKS4508-12 | 220 | 31.7 | 495 | 91.4 | 0.73 | 1.8 | 0.8 | 5.5 | 32.5 | 1130 | 2890 | 3179 | 3000 |
| Type | Rated Power (kW) | Rated Current (A) | Speed (r/min) | Efficiency (%) | Power Factor (cos Φ) | Max. Torque / Rated Torque | Locked Torque / Rated Torque | Locked Current / Rated Current | J (Motor) (kg·m²) | J (Load) (kg·m²) | Y Mass (kg) | YKS Mass (kg) | Lubrication Time (h) |
| Y.YKS4501-2 | 355 | 25.1 | 2975 | 93.8 | 0.87 | 1.8 | 0.6 | 7 | 4.2 | 24 | 3040 | 3340 | 500 |
| Y.YKS4502-2 | 400 | 28.2 | 2975 | 94.1 | 0.87 | 1.8 | 0.6 | 7 | 4.5 | 27 | 3110 | 3410 | 500 |
| Y.YKS4501-4 | 355 | 25.5 | 1490 | 93.3 | 0.86 | 1.8 | 0.7 | 7 | 9.8 | 47 | 2810 | 3062 | 1000 |
| Y.YKS4502-4 | 400 | 28.7 | 1490 | 93.5 | 0.86 | 1.8 | 0.7 | 7 | 13 | 62 | 2860 | 3122 | 1000 |
| Y.YKS4503-6 | 315 | 23.9 | 990 | 92.8 | 0.82 | 1.8 | 0.7 | 6 | 18.3 | 247 | 2900 | 3470 | 2000 |
| Y.YKS4504-6 | 355 | 26.5 | 990 | 93.1 | 0.83 | 1.8 | 0.7 | 6 | 23 | 267 | 3000 | 3330 | 2000 |
Applications of YKS Series Motors
Cement Plant Motor
Energy & Power Industry
Thermal Power Plants: Boiler feed pumps, induced draft fans, forced draft fans.
Hydropower Stations: Auxiliary turbine equipment, large water pumps.
Nuclear Plants: Cooling water circulation pumps, emergency backup systems.
Oil & Gas
Oilfield Extraction: Water injection pumps, compressors, oil transfer pumps.
Gas Transmission: Pipeline booster station compressors.
Mining & Metallurgy
Mining Equipment: Ball mills, crushers, hoists, ventilation fans.
Steel Plants: Rolling mills, blowers, sintering machines.
Building Materials & Cement Industry
Cement Production: Raw material mills, rotary kilns, fans, dust removal systems
Chemical & Petrochemical
Chemical Plants: Reactor agitators, centrifuges, compressors.
Fertilizer/Pesticide Production: Large pumps, granulators.
Water & Municipal Engineering
Water Treatment Plants: Large pumps, sewage treatment equipment.
Urban Water Supply: Booster pump stations, water transmission systems.

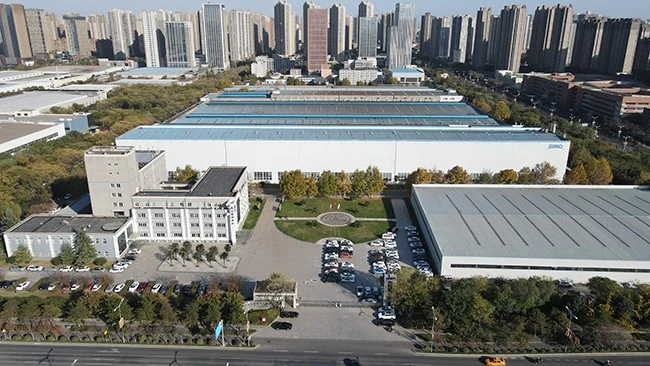

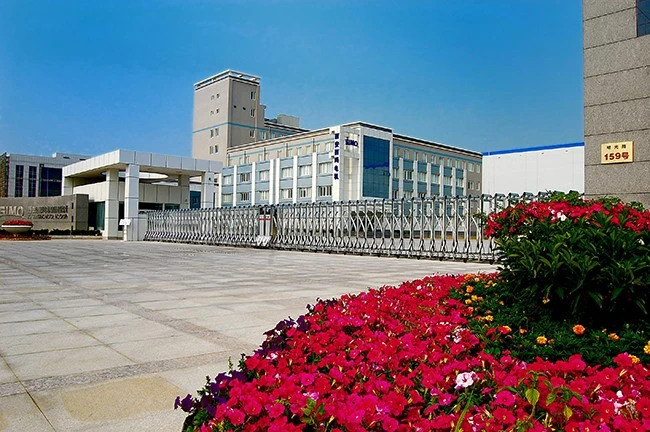

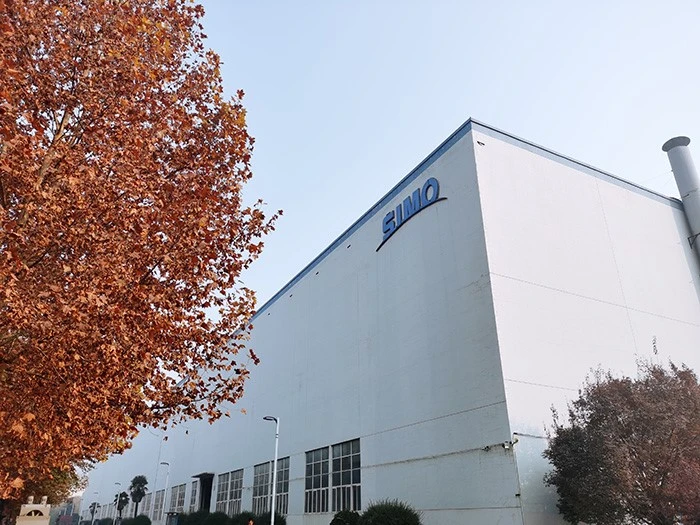

Xi'an Simo Motor Co., Ltd.
Xi'an Simo Motor Co., Ltd. (formerly Xi'an Simo Motor Factory) is a professional manufacturer of electric motors in China's machinery industry.
It has 34 major product series, including more than 1,800 sub - categories and a total of over 19,500 specifications. The power range is from 0.55 kilowatts to 25,000 kilowatts. The main motor products include YX, YXKK, YXKS series high - efficiency high - voltage motors; YR, YRKK, YRKS wound high - voltage motors; YE3 high - efficiency, YE4, YE5 ultra - high - efficiency series asynchronous motors; YVFE2, YVFE3, YVFE4, YVFE5 series high - efficiency variable - frequency speed - regulating motors; YBX3, YBX4, YBK3, YBF3, YBBP series explosion - proof high - and low - voltage asynchronous motors; T, TD, TK, TDMK series synchronous motors; and Z2, Z4, Z series DC motors. These products are widely used in fields such as environmental protection, power, coal, petroleum, mining, metallurgy, railways, transportation, chemical industry, agriculture, water conservancy, aviation, navigation, and high - tech. It is a designated motor supporting manufacturer for China Railway Corporation and a qualified supplier for General Electric (GE) of the United States.
The company was established in 1955 and has a history of 70 years in motor production and sales.
Simo Motor holds over 120 invention patents for its products.

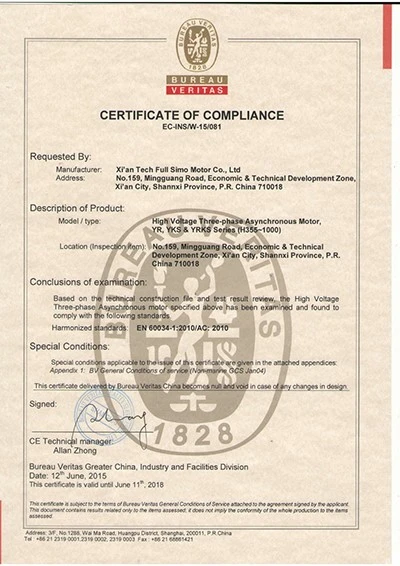

In 2017, it passed the ISO9001 - 2015 quality management system certification of the China Quality Certification Center (CQC). It has also obtained certifications such as the EU "CE", Australian "GEMS", South Korean "KC", Russian "GOST", Chinese "CCC", and energy - saving certification.
Partial Certificate Display

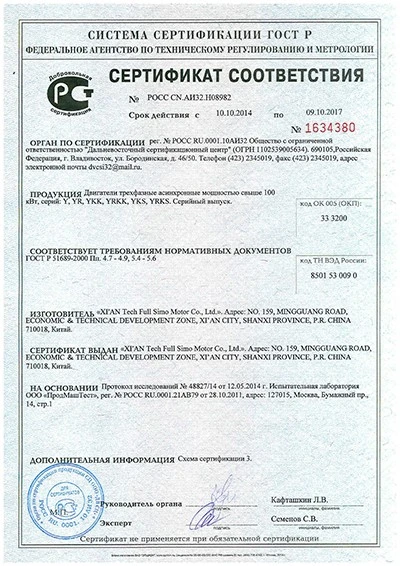

GOST

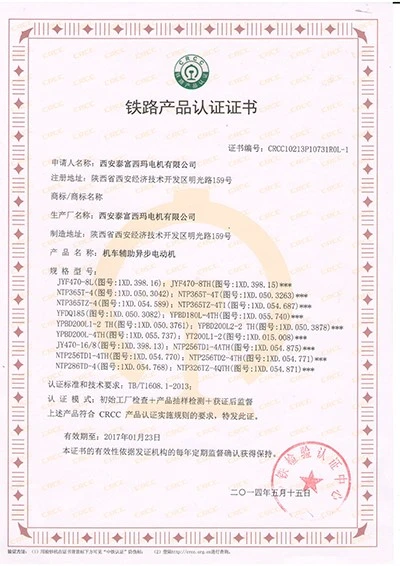

CRCC
CE
Choose Cement Plant Motor, Choose Simo, Choose Quality! Contact email: sales@simo-motor.com.cn
