Large Air-to-Air Cooled 3 Phase Ac Slip Ring Induction Motor
Large Air-to-Air Cooled 3 Phase Ac Slip Ring Induction Motor

Large Air-to-Air Cooled 3 Phase Ac Slip Ring Induction Motor

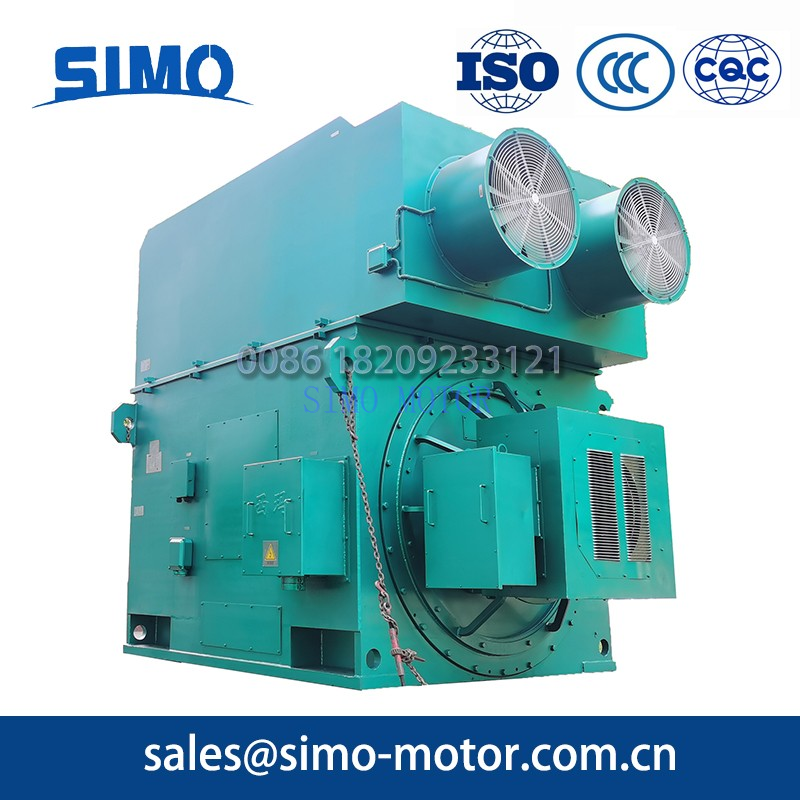

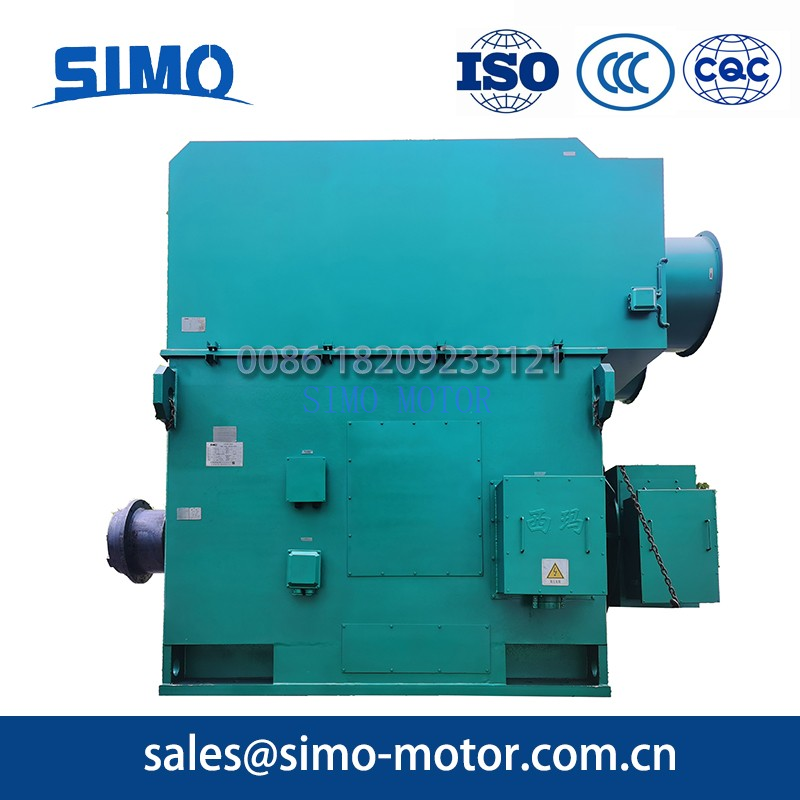

Large Air-to-Air Cooled 3 phase ac slip ring induction motor (center height from 710mm to 1000mm), which complies with GB/T13957-2008. The protection degree of the motor is of IP44/IP54/IP55 and the cooling method is of IC611. The motor has such advantage as high efficiency, energy saving, low noise, low vibration, light weight and reliable performance. They are easy for installation and maintenance. The structure and the mounting type is of IMB3 with continuous duty (S1). The rated frequency is 50Hz and the rated voltage is 6000V, other voltage requirements or special requirements should be negotiate with the manufacturer before order is placed. Welcome to email us: sales@simo-motor.com.cn.
Send Inquiry
Detailed Product Introduction

Large Air-to-Air Cooled 3 phase ac slip ring induction motor

Large Air-to-Air Cooled 3 phase ac slip ring induction motor (center height from 710mm to 1000mm), which complies with GB/T13957-2008. The protection degree of the motor is of IP44/IP54 and the cooling method is of IC611.

The motor has such advantage as high efficiency, energy saving, low noise, low vibration, light weight and reliable performance. They are easy for installation and maintenance.

Large Air-to-Air Cooled 3 phase ac slip ring induction motor
Large Air-to-Air Cooled 3 phase ac slip ring induction motor

This motor can generate larger starting torque at the state of relatively lower starting current. It used where the capacity of the feeder line is insufficient to start a squirrel cage motor or where the longer starting time and frequent starting are needed or where adjustment of speed is needed within a limited range such as windlass, press machines, drawing machines.

The structure and the mounting type is of IMB3 with continuous duty (S1). The rated frequency is 50Hz and the rated voltage is 6000V, other voltage requirements or special requirements should be negotiate with the manufacturer before order is placed.



Basic parameters







Frame：

710~1000

Rated voltage：

6kv/10KV/Customizable voltage

Rate frequency：

50HZ/60HZ

Speed ：

1495rpm, 995rpm, 745rpm,595rpm, 495rpm,

Power scope：

500~4500KW

Mounting：

IMB3

Protection Grade：

IP44/IP54/IP55

Cooling type：

IC611/IC616/IC666

Insulation：

Class F

Air temperature:

-15℃~40℃

The highest relative humidity:

90% while The average temperature is not above 25℃.



Large Air-to-Air Cooled 3 phase ac slip ring induction motor


The meaning of type





Corresponding model numbers of large air-to-air cooled 3-phase AC slip ring induction motors and their model designations.

Example model: YRKK-7101-6, and the meaning represented by the model designation.

6：Pole number

7101：Center height is 710mm.No.1 iron core

YRKK:Wound rotor induction motor with a closed air - air cooler



Partial models and corresponding parameters


Large Air-to-Air Cooled 3 phase ac slip ring induction motor
(Type) (Rated Power) kW (Rated Current) A (Speed) r/min (Efficiency) % (Power Factor) cosΦ J(Motor)) kg·m² (Mass) kg
YRKK7101-4 2240 260 1485 95.3 0.87 165 16100
YRKK7104-4 3150 364 1485 95.6 0.87 195 16700
YRKK8003-4 4500 519 1490 95.9 0.87 285 21400
YRKK7103-6 2000 238 990 95.2 0.85 240 16510
YRKK8001-6 2500 297 990 95.3 0.85 340 19300
YRKK8004-6 3550 420 990 95.6 0.85 450 21350
YRKK7101-8 1400 172 740 94.5 0.83 290 15550
YRKK9001-8 2800 337 745 95.1 0.84 880 23860
YRKK9003-8 3550 427 745 95.3 0.84 1050 25625
YRKK7101-10 1120 142 595 93.9 0.81 300 15520
YRKK10002-10 4000 494 595 95 0.82 1710 28200
YRKK10003-10 4500 555 595 95.1 0.78 1890 29200
YRKK9001-12 2000 259 495 94 0.79 1050 23650
YRKK10001-12 2800 362 495 94.3 0.79 1680 27000
YRKK10004-12 4000 515 495 94.6 0.72 2250 30400
YRKK7104-16 710 103 370 92.3 0.72 330 16960
YRKK8004-16 1120 161 370 92.7 0.72 770 20750
YRKK10002-16 2000 279 370 93.2 0.74 1850 28750
YRKK10002-16 2240 312 370 93.3 0.74 2000 29840


Installation Dimension Drawing



Large Air-to-Air Cooled 3 phase ac slip ring induction motor





Accessory Equipments







01/

Cooling Blower: For variable frequency motors using IC616 (separate blower cooling), attention should be paid to the cooling blower's power supply requirements.

02/

Space Heater: In high-humidity environments, space heaters (220V/380V) should be used to prevent moisture from damaging the motor's insulation.

03/

Thermometric Element (PT100): High-voltage motors are equipped with PT100 temperature sensors: 6 sensors on the stator winding (2 sensors per phase) and one sensor each on the drive end (DE) and non-drive end (NDE) bearings. An external temperature monitor (provided by the customer) can measure the actual temperature of the windings and bearings.

04/

Oil Pump: Motors with a central height above 500mm (2-pole) and central height above 710mm typically use pressure-circulated oil lubrication for sleeve bearings. Customers usually need to provide an oil pump for lubrication and cooling. Self-lubricating motors should be discussed with the manufacturer.

05/

Current Transformer (CT): Motors with power greater than 2000kW should be equipped with current transformers (CTs) for differential protection by monitoring the motor's circuit current.

06/

Vibration Measurement: Motors can be equipped with vibration measurement elements (upon customer request) to measure bearing vibration. Two elements are usually installed per bearing. The customer needs to provide an external vibration meter.

Partial Certificates Shown



Large Air-to-Air Cooled 3 phase ac slip ring induction motor

3C

CCC

CE-YRYKSYRKS-

CE

CQC

CQC

gems-1

GEMS

gost

GOST

Company profile


Simo Motor was established in 1955 and has a history of 70 years in motor production and sales. In 1995, Simo Motor was the first in the motor industry to obtain the ISO9001 - 1994 quality management system certification. In 2017, it passed the ISO9001 - 2015 quality management system certification of the China Quality Certification Center (CQC). It has also obtained certifications such as the EU "CE", Australian "GEMS", South Korean "KC", Russian "GOST", Chinese "CCC", and energy - saving certification. All explosion - proof motors have obtained explosion - proof certificates, "CCC" mandatory product certification certificates, and mining product safety mark certificates.
