Name: China SIMO Diesel Locomotive Lubricating Oil Pump Motor Manufacturers Suppliers Factory
Brand: SIMO
SKU: 262323022

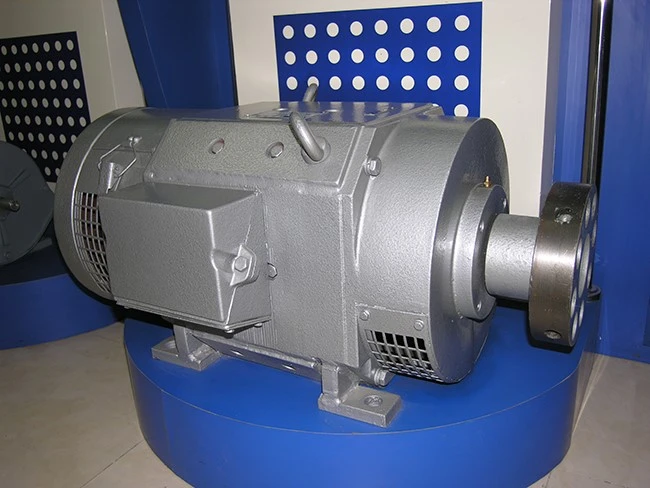

SIMO Diesel Locomotive Lubricating Oil Pump Motor3

SIMO Motor of China is an enterprise specializing in the research and production of electric motors ,ZTP-52 This type of motor belongs to the diesel locomotive lubricating oil pump motor

SIMO ZTP-52 motor adopts a new type of fully laminated octagonal frame, which has high stator space utilization, small size, small moment of inertia, good dynamic performance, and can withstand pulse current and high current change rate. The motor can withstand the impact and vibration generated by the normal operation of the locomotive and the EMU, and the motor will operate normally when the locomotive is subjected to rain, snow, wind and sand.

ZTP series Xi'an Simo motor should be able to meet the general technical conditions of DC auxiliary motor for railway locomotive motor OXD.515.010-2001 or other special technical conditions. The motor can withstand the impact and vibration generated during the normal operation of the locomotive EMU, and the motor can operate normally when rain, snow, wind and sand invade. Suitable for ambient temperature of -40°C~+45°C; The altitude does not exceed 1200m. More than 1200m to 4000m see the technical conditions.

The basic installation type of the motor

Horizontal, frame with feet (IMB3)

According to the needs of users, it can also be made into other installation types, single-shaft extension or double-shaft extension motors, and single-shaft extension motors can be equipped with tachogenerators or other speed measuring devices at the non-transmission end.

The position of the motor outlet box of IMB3 and IMB35 installation type is from the transmission end, on the left side of the frame (for the positive box), and if the user needs, it can also be on the right side of the frame (for the reverse box), or above the frame. IMBl0 and IMVl0 mounted motors do not have an outlet box.

The basic direction of rotation of the motor is regarded as counterclockwise rotation from the transmission end.

Products Description

ZTP-51

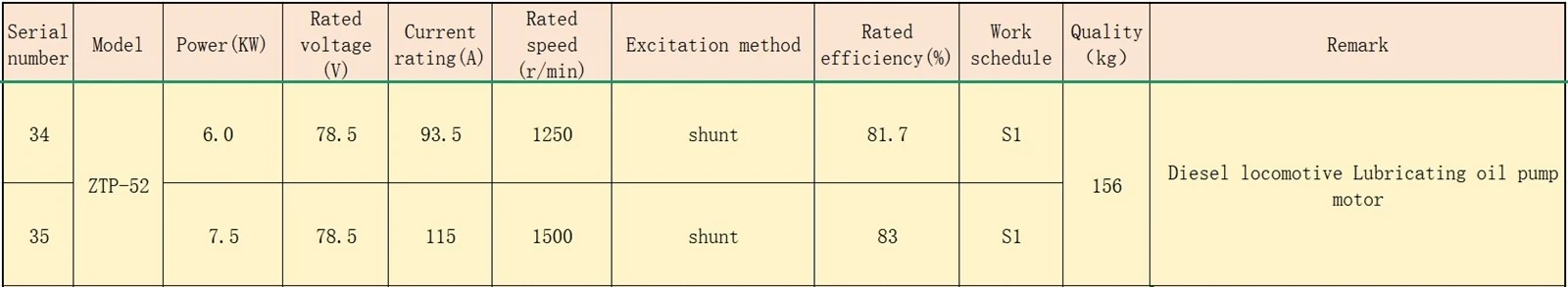

Main Technical Parameters

Frame:	H52
Power Scope:	6.0KW,7.5KW
Voltage:	78.5V
Frequency:	50Hz
Number of Poles:	2P
Speed	1250rpm,1500rpm
Cooling Mechod	IC01
Protection Grade	IP22
Insulation Class	-40℃~+45℃
Duty:	S1,
Mounting Type	IMB3/B35/V1

Related Models: ZTP-51 ZTP-52

INTRODUCTION OF SIMO MOTOR FACTORY

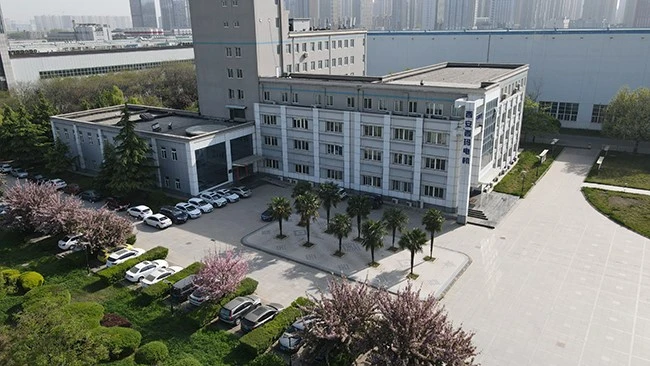

Office area

Xi'an Simo Motor Co., Ltd. (formerly Xi'an Simo Motor Factory) is a professional manufacturer of electric motors in China's machinery industry. The motors it produces include large - and medium - sized, high - and low - voltage, AC and DC motors, synchronous motors, high - efficiency motors, and explosion - proof motors. It is a power system provider integrating motor design and manufacturing, mechanical processing, and automation complete engineering.

SIMO Diesel Locomotive Lubricating Oil Pump Motor2

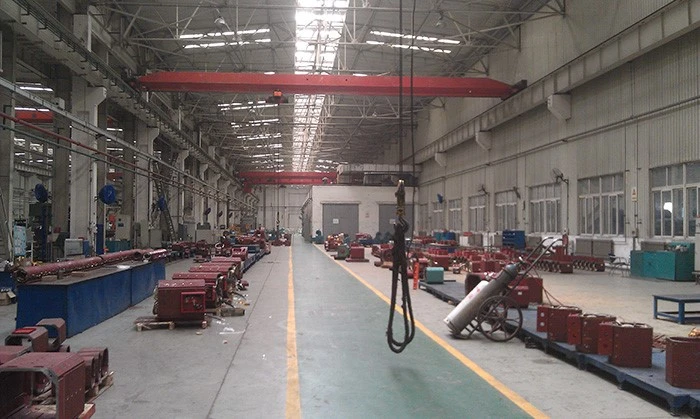

Production workshop

The company was established in 1955 and has a history of 70 years in motor production and sales.

In 2017, it passed the ISO9001 - 2015 quality management system certification of the China Quality Certification Center (CQC). It has also obtained certifications such as the EU "CE", Australian "GEMS", South Korean "KC", Russian "GOST", Chinese "CCC", and energy - saving certification.

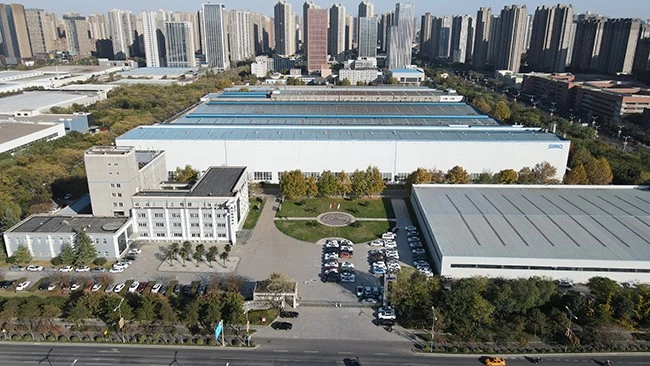

Factory overview

Simo Motor holds over 120 invention patents for its products. It has 34 major product series, including more than 1,800 sub - categories and a total of over 19,500 specifications. The power range is from 0.55 kilowatts to 25,000 kilowatts.

Simo Motor has an advanced R & D team, constantly improving the efficiency and quality of its motors.

Ordering instructions

1. Before ordering, please consult the product sample, clarify the technical data such as the model specifications of the required product, if there is a discrepancy between the required varieties and specifications and the sample, please contact our factory, if there are special requirements, please put forward specific requirements in advance, and sign a contract or technical agreement after consultation and agreement between the two parties

2. When ordering, please indicate the motor model, power, voltage, speed, working system, structure installation type, excitation mode, excitation voltage, number of shafts, outlet box position, rotation direction, and required accessories, spare parts name, quantity, etc.

3. If you need to go abroad with a package, please indicate in the contract if there are wet tropical requirements.

SIMO Diesel Locomotive Lubricating Oil Pump Motor, Choose Simo, Choose Quality!
