Power Plant High-Voltage Motor
Power Plant High-Voltage Motor

Power Plant High-Voltage Motor

The YKS-630 Series Motor is primarily designed for high-power, heavy-duty, and continuous-operation equipment drive applications, particularly in the energy and power industries, including: Thermal Power Plants: Driving boiler feedwater pumps, induced draft (ID) fans, forced draft (FD) fans, etc. Hydropower Stations: Used for auxiliary turbine equipment or large-scale water pumps. Nuclear Power Plants: Applications such as circulating cooling water pumps and emergency backup systems. The YKS Series Motor, developed by SIMO Motors, is a high-efficiency, high-voltage motor engineered for high-power, heavy-load operations. It features energy savings, durability, and ease of installation and maintenance, complying with the IE3 energy efficiency standard and making it ideal for energy-saving retrofit projects. Widely adopted in power plants across China, the YKS Series Motor has earned recognition for its high efficiency and energy-saving performance, playing an indispensable role in the country’s energy efficiency reforms. The series has obtained international certifications, including: European "CE" American "UL" China’s compulsory "CCC" With its superior quality, the YKS Series Motor is exported worldwide, receiving extensive acclaim and attention. For more information about high-voltage motors, please contact: sales@simo-motor.com.cn
Send Inquiry

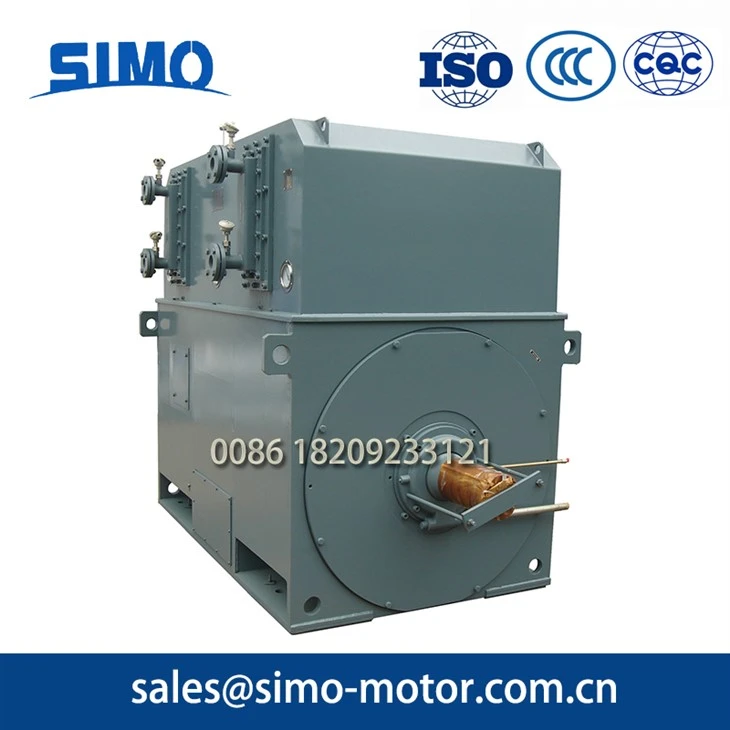

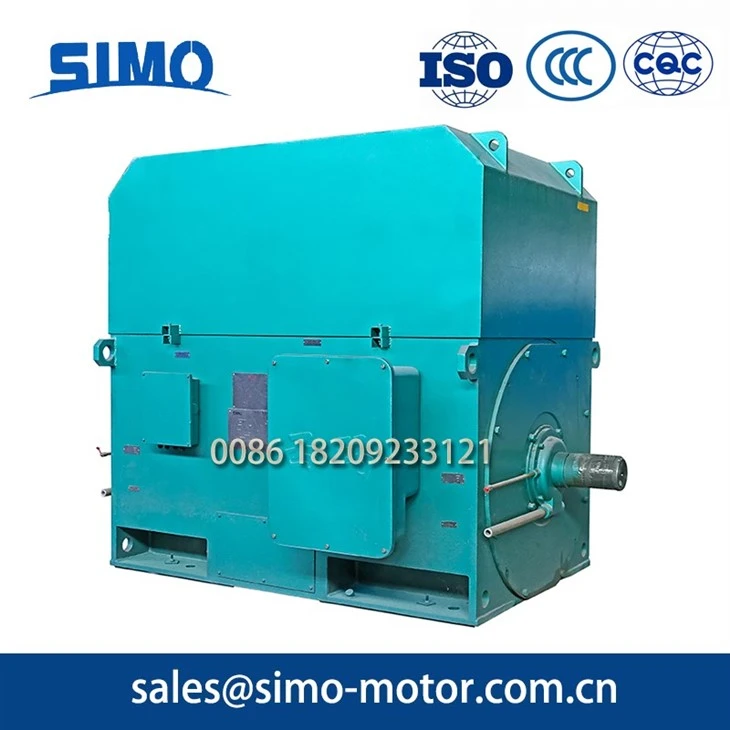

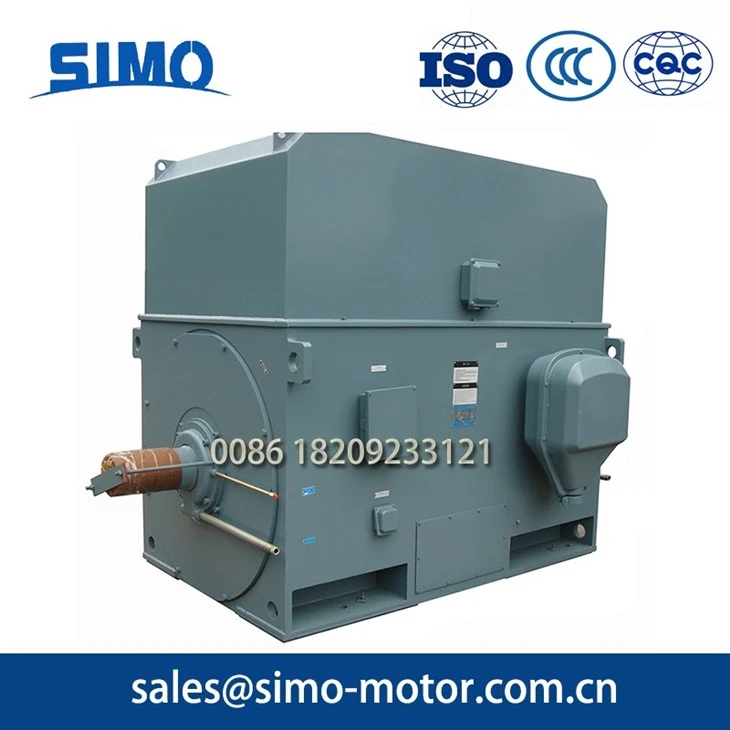

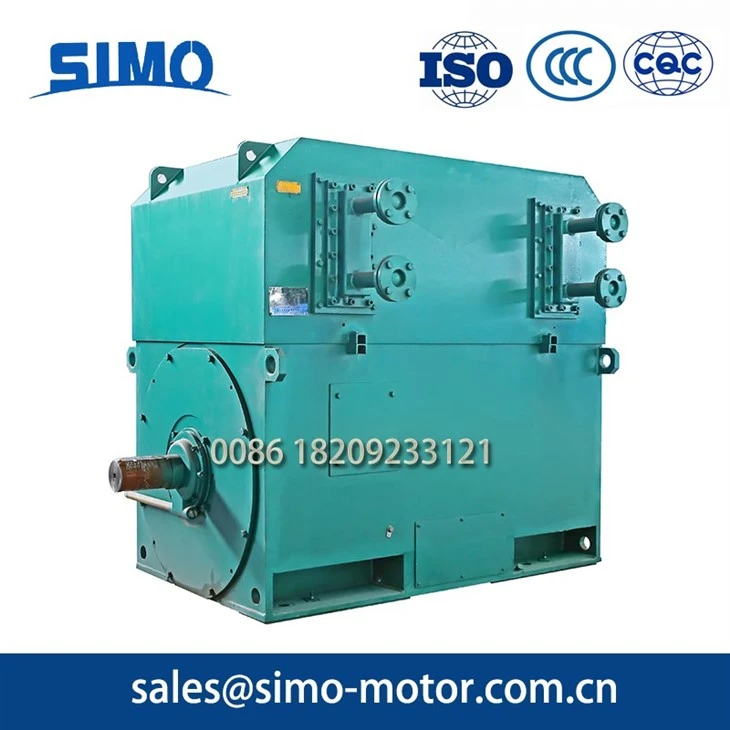

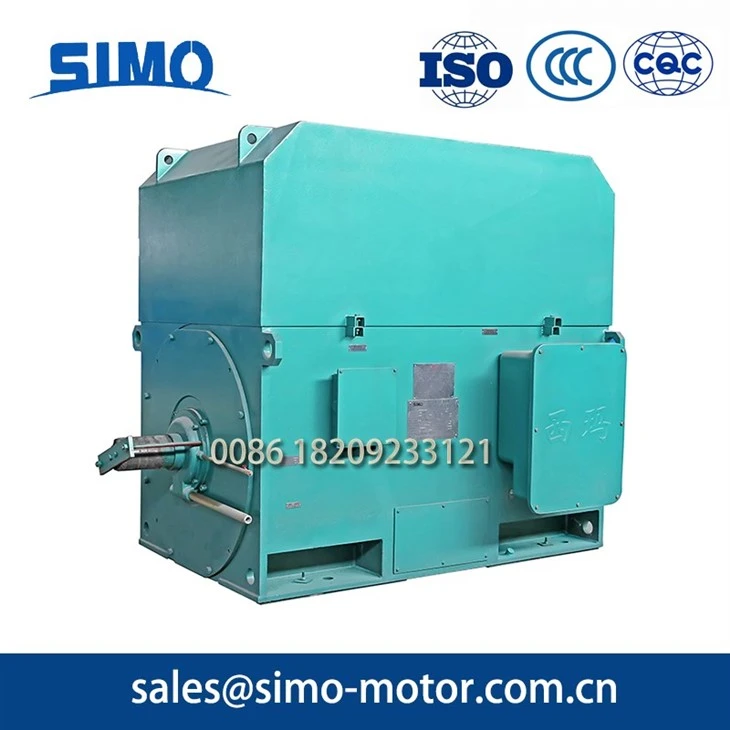

Introduction to the YKS-630 Series Motor







The YKS-630 Series Motor is primarily designed for high-power, heavy-duty, and continuous-operation equipment drive applications , particularly in the energy and power industries , including:

Thermal Power Plants : Driving boiler feedwater pumps, induced draft (ID) fans, forced draft (FD) fans, etc.

Hydropower Stations : Used for auxiliary turbine equipment or large-scale water pumps.

Nuclear Power Plants : Applications such as circulating cooling water pumps and emergency backup systems.

The YKS Series Motor , developed by SIMO Motors , is a high-efficiency, high-voltage motor engineered for high-power, heavy-load operations . It features energy savings, durability, and ease of installation and maintenance , complying with the IE3 energy efficiency standard and making it ideal for energy-saving retrofit projects.

Widely adopted in power plants across China, the YKS Series Motor has earned recognition for its high efficiency and energy-saving performance , playing an indispensable role in the country's energy efficiency reforms.

The series has obtained international certifications, including:

European "CE"

American "UL"

China's compulsory "CCC"

With its superior quality , the YKS Series Motor is exported worldwide, receiving extensive acclaim and attention .

For more information about high-voltage motors, please contact: sales@simo-motor.com.cn





Model Number Explanation





SIMO YKS Series High-Voltage Three-Phase Asynchronous Motor Model Number Explanation

Taking YKS6302-4 as an example:

"YKS" : Enclosed squirrel-cage rotor asynchronous motor with air-to-water cooler .

"6302" : Frame center height = 630mm ; "2" indicates the first iron core length .

"4" : Number of poles (4-pole motor ).







YKS Series High Voltage Motor (6KV/10KV/Customizable) – Key Specifications:



Frame Size: 355–630 (6KV); 400–800 (10KV)(Customizable)
Rated Voltage: 6KV / 10KV (Customizable)
Rated Frequency: 50Hz
Speed: 3000rpm, 1500rpm, 1000rpm, 750rpm
Power Range: 220–3150KW
Mounting Type: IMB3
Protection Class: IP44 / IP54
Cooling Method: IC81W
Insulation Class: F
Ambient Temperature: Seasonal variations, max. 40°C; min. -15°C
Humidity: Max. 90% relative humidity in the wettest month, with an average monthly low ≤25°C.



YKS Series High Voltage Motor Overview:





1.The YKS Series 6KV/10KV (Customizable) three-phase induction motor (6KV: frame size 355–630; 10KV: frame size 400–800) features a squirrel-cage rotor design. It complies with JB/T 7593-2007 and JB/T 10315.1 technical standards.

2.Advantages include high efficiency, energy savings, low noise, minimal vibration, lightweight construction, reliable performance, and easy installation/maintenance.



Technical data sheet









Power Plant High-Voltage Motor-6KV
Type Rated Power (kW) Rated Current (A) Speed (r/min) Efficiency (%) Power Factor (cos Φ) Max. Torque / Rated Torque Locked Torque / Rated Torque Locked Current / Rated Current J (Motor) (Kg.m²) J (Load) (Kg.m²) Y Mass (kg) YKS Mass (kg) Lubrication Time (h)
Y.YKS6301-2 2500 281 2980 96.2 0.89 1.8 0.6 7 37.6 105 7600 8620 500
Y.YKS6302-2 2800 314.4 2980 96.3 0.89 1.8 0.6 7 41.5 111 7890 8950 500
Y.YKS6303-2 3150 353.7 2980 96.3 0.89 1.8 0.6 7 45.9 117 8170 9280 500
Y.YKS6301-4 2240 252.3 1485 96 0.89 1.8 0.6 6.5 99 405 7550 8531 1000
Y.YKS6302-4 2500 281.3 1485 96.1 0.89 1.8 0.6 6.5 113.5 437 7950 8475 1000
Y.YKS6303-4 2800 314.7 1485 96.2 0.89 1.8 0.6 6.5 127.8 473 8570 9684 1000
Y.YKS6301-6 1600 187.1 990 95.7 0.86 1.8 0.7 6.5 137.5 954 6930 7770 2000
Y.YKS6302-6 1800 210.2 990 95.8 0.86 1.8 0.7 6.5 152.8 1050 7310 8200 2000
Y.YKS6303-6 2000 233.3 990 95.9 0.86 1.8 0.7 6.5 170.3 1142 7690 8620 2000
Y.YKS6301-8 1120 135.1 740 95 0.84 1.8 0.7 6 137.5 1820 6330 7170 2000
Y.YKS6302-8 1250 150.6 740 95.1 0.84 1.8 0.7 6 152.8 2000 6810 7760 2000
Y.YKS6303-8 1400 168.5 740 95.2 0.84 1.8 0.7 6 167.8 2210 7390 8360 2000
Y.YKS6304-8 1600 192.3 740 95.3 0.84 1.8 0.7 6 182.8 2470 7770 8800 2000
Y.YKS6301-10 1000 124.3 590 94.4 0.82 1.8 0.7 6 157.8 2870 7160 8091 3000
Y.YKS6302-10 1120 138.9 590 94.6 0.82 1.8 0.7 6 165 3170 7530 8508 3000
Y.YKS6303-10 1250 154.7 590 94.8 0.82 1.8 0.7 6 185 3490 8000 9040 3000
Y.YKS6304-10 1400 173.1 590 94.9 0.82 1.8 0.7 6 200 3850 8230 9299 3000
Y.YKS6301-12 710 92 495 94 0.79 1.8 0.7 6 147.8 3310 7050 7966 3000
Y.YKS6302-12 800 103.4 495 94.2 0.79 1.8 0.7 6 170.3 3690 7570 8554 3000
Y.YKS6303-12 900 116.3 495 94.3 0.79 1.8 0.7 6 185 4100 7860 8881 3000
Y.YKS6304-12 1000 129 495 94.4 0.79 1.8 0.7 6 200 4550 8180 9243 3000
Power Plant High-Voltage Motor-10KV
Type Rated Power (kW) Rated Current (A) Speed (r/min) Efficiency (%) Power Factor (cos Φ) Max. Torque / Rated Torque Locked Torque / Rated Torque Locked Current / Rated Current J (Motor) (kg·m²) J (Load) (kg·m²) Y Mass (kg) YKS Mass (kg) Lubrication Time (h)
Y.YKS6301-2 1800 120.6 2970 95.7 0.9 1.8 0.6 7 33 86 7520 8320 500
Y.YKS6302-2 2000 133.9 2970 95.8 0.9 1.8 0.6 7 36 92 7830 8630 500
Y.YKS6303-2 2240 149.7 2970 96 0.9 1.8 0.6 7 40 96 8150 8950 500
Y.YKS6301-4 1800 121.7 1490 95.9 0.89 1.8 0.6 7 97 572 7140 7925 1000
Y.YKS6302-4 2000 135.1 1490 96 0.89 1.8 0.6 7 108 605 7490 8314 1000
Y.YKS6303-4 2240 151.2 1490 96.1 0.89 1.8 0.6 7 121 650 7890 8758 1000
Y.YKS6301-6 1400 98.2 990 95.7 0.86 1.8 0.6 6 121 693 7390 7559 2000
Y.YKS6302-6 1600 112.1 990 95.8 0.86 1.8 0.6 6 135 981 7130 7914 2000
Y.YKS6303-6 1800 126 990 95.9 0.86 1.8 0.6 6 151 1010 7490 8314 2000
Y.YKS6301-8 1000 73.2 740 95 0.83 1.8 0.7 6 130 2502 6630 7126 2000
Y.YKS6302-8 1120 81.8 740 95.2 0.83 1.8 0.7 6 140 2980 6600 7326 2000
Y.YKS6303-8 1250 91.2 740 95.3 0.83 1.8 0.7 6 155 3410 7350 8630 2000
Y.YKS6301-10 800 61.2 595 94.3 0.8 1.8 0.7 6 140 2510 6970 7248 3000
Y.YKS6302-10 900 68.7 595 94.5 0.8 1.8 0.7 6 153 2842 6790 7537 3000
Y.YKS6303-10 1000 76.3 595 94.6 0.8 1.8 0.7 6 165 3310 7040 7814 3000
Y.YKS6304-10 1120 85.3 595 94.7 0.8 1.8 0.7 6 183 4315 7290 8092 3000
Y.YKS6301-12 560 46.7 495 93.5 0.74 1.8 0.7 6 140 4250 6720 7392 3000
Y.YKS6302-12 630 52.5 495 93.7 0.74 1.8 0.7 6 152 4780 6990 7689 3000
Y.YKS6303-12 710 59 495 93.9 0.74 1.8 0.7 6 160 5480 7230 7953 3000
Y.YKS6304-12 800 66.2 495 94.3 0.74 1.8 0.7 6 183 6140 7640 8480 3000





Installation Dimension Drawing





Power Plant High-Voltage Motor2



Power Plant High-Voltage Motor1









Applications of YKS Series Motors



(1) Energy & Power Industry

     Thermal Power Plants: Boiler feed pumps, induced draft fans, forced draft fans.

      Hydropower Stations: Auxiliary turbine equipment, large water pumps.

      Nuclear Plants: Cooling water circulation pumps, emergency backup systems.

(2) Oil & Gas

      Oilfield Extraction: Water injection pumps, compressors, oil transfer pumps.

      Gas Transmission: Pipeline booster station compressors.

(3) Mining & Metallurgy

      Mining Equipment: Ball mills, crushers, hoists, ventilation fans.

      Steel Plants: Rolling mills, blowers, sintering machines.

(4) Building Materials & Cement Industry

     Cement Production: Raw material mills, rotary kilns, fans, dust removal systems.

(5) Chemical & Petrochemical

     Chemical Plants: Reactor agitators, centrifuges, compressors.

     Fertilizer/Pesticide Production: Large pumps, granulators.

(6) Water & Municipal Engineering

     Water Treatment Plants: Large pumps, sewage treatment equipment.

     Urban Water Supply: Booster pump stations, water transmission systems.







Key Advantages of YKS Series Motors



1. Energy Efficient: Meets IE3 efficiency standards , ideal for energy-saving retrofits.
2. Wide Adaptability: IP54/IP55 protection , suitable for humid, dusty, or high-temperature environments.
3. High Reliability: Premium insulation materials ensure long-term continuous operation .





   Choose Power Plant High-Voltage Motor,   Choose Simo, Choose Quality!  Contact email: sales@simo-motor.com.cn
