Introduction

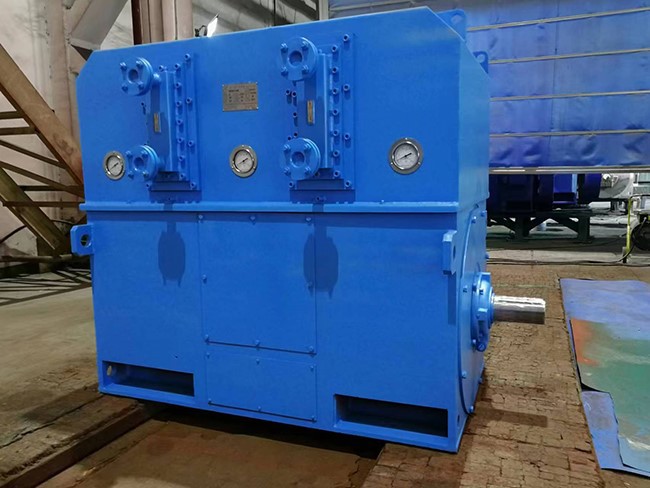

The YKS-560 Series Motor

Applications

The YKS-560 Series Motor is primarily designed for high-power, heavy-load, and continuous operation equipment, such as applications in the energy & power, oil & gas, mining & metallurgy, and chemical & petrochemical industries.

Energy-Efficient

The YKS Series Motors are specifically engineered for high-power, heavy-duty applications. They feature high efficiency, durability, easy installation, and low maintenance, complying with IE3 energy efficiency standards, making them ideal for energy-saving retrofitting projects.

Usage in China

These motors have been widely adopted in mineral resources extraction, petrochemical plants, and oil fields across China, where their high efficiency and energy-saving performance have earned widespread acclaim. They play an irreplaceable role in China's national energy efficiency reform initiatives.

Overseas Applications

The YKS series motors are widely used in Southeast Asia and parts of Europe. With their reliable quality and competitive pricing, they have gained great popularity among overseas oilfield and mining enterprises.

Key Specifications

Frame Size: 355–630 (6KV); 400–800 (10KV)(Customizable)
Rated Voltage: 6KV / 10KV (Customizable)

Power Range: 220–3150KW
Mounting Type: IMB3

Rated Frequency: 50Hz
Speed: 3000rpm, 1500rpm, 1000rpm, 750rpm

Insulation Class: F
Ambient Temperature: Seasonal variations, max. 40°C; min. -15°C

Protection Class: IP44 / IP54
Cooling Method: IC81W

Humidity: Max. 90% relative humidity in the wettest month, with an average monthly low ≤25°C.

Picture collection of the production workshop

75 - ton crane workshop

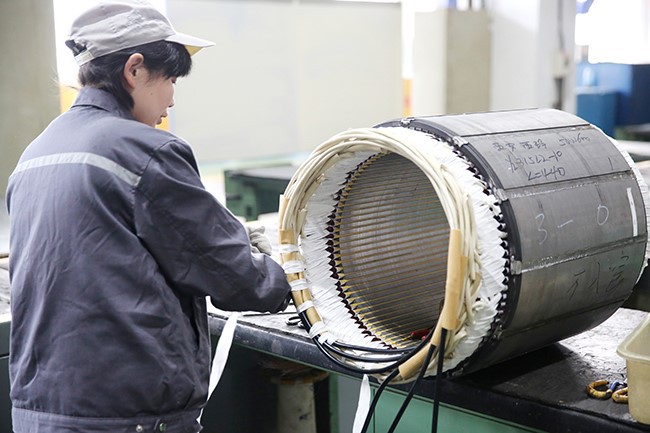

Coil assembly workshop

End - cover production workshop

Secondary painting workshop

Stator assembly workshop

Complete machine assembly workshop

Motor test center

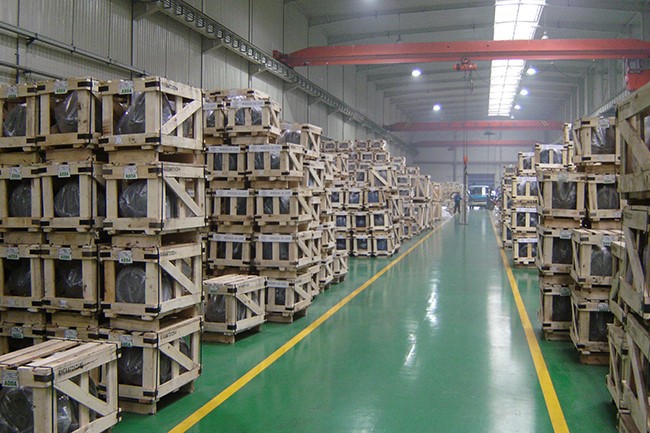

Warehouse

Partial Certificate Display

Energy Efficient Motor10

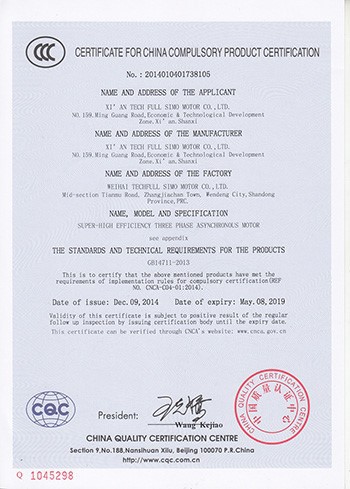

Energy Efficient Motor-3C

CCC

Energy Efficient Motor-CE-YKS

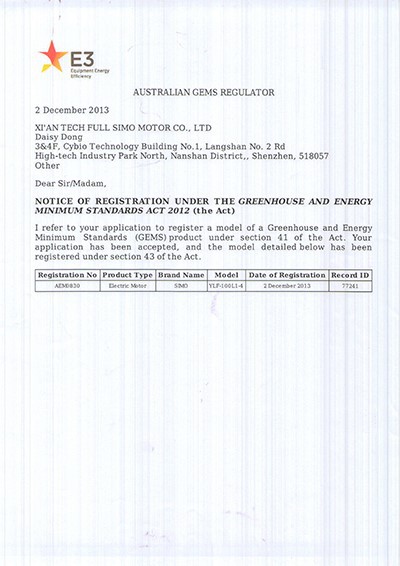

Energy Efficient Motor-gems-1

GEMS

Model Number Explanation

SIMO YKS Series High-Voltage Three-Phase Asynchronous Motor Model Number Explanation

Taking YKS5606-4 as an example:

"YKS" : Enclosed squirrel-cage rotor asynchronous motor with air-to-water cooler .

"5606" : Frame center height = 560mm ; "6" indicates the first iron core length .

"4" : Number of poles (4-pole motor ).

Key Advantages

1. Energy Efficient: Meets IE3 efficiency standards , ideal for energy-saving retrofits.

2. Wide Adaptability: IP54/IP55 protection , suitable for humid, dusty, or high-temperature environments.

3. High Reliability: Premium insulation materials ensure long-term continuous operation .

Technical data sheet

Energy Efficient Motor-6KV
Type	Rated Power (kW)	Rated Current (A)	Speed (r/min)	Efficiency (%)	Power Factor (cos Φ)	Max. Torque / Rated Torque	Locked Torque / Rated Torque	Locked Current / Rated Current	J (Motor) (Kg.m²)	J (Load) (Kg.m²)	Y Mass (kg)	YKS Mass (kg)	Lubrication Time (h)
Y.YKS5601-2	1800	205.2	2980	95.9	0.88	1.8	0.6	7	25.2	86	7400	8330	500
Y.YKS5601-4	1600	180.8	1485	95.7	0.89	1.8	0.6	6.5	66.3	315	5280	5966	1000
Y.YKS5601-6	1120	131.6	990	95.4	0.86	1.8	0.7	6.5	99	737	5820	5504	2000
Y.YKS5603-8	1000	120.7	740	94.9	0.84	1.8	0.7	6	144.8	1650	5950	6530	2000
Y.YKS5603-10	900	112	590	94.3	0.82	1.8	0.7	6	157.5	2610	5350	6046	3000
Y.YKS5601-12	500	65	495	93.7	0.79	1.8	0.7	6	119	2410	4630	5185	3000

Energy Efficient Motor 10kv
Type	Rated Power (kW)	Rated Current (A)	Speed (r/min)	Efficiency (%)	Power Factor (cos Φ)	Max. Torque / Rated Torque	Locked Torque / Rated Torque	Locked Current / Rated Current	J (Motor) (kg·m²)	J (Load) (kg·m²)	Y Mass (kg)	YKS Mass (kg)	Lubrication Time (h)
Y.YKS5601-2	1250	85	2970	95.4	0.89	1.8	0.6	7	22	67	6000	6570	500
Y.YKS5602-4	1400	94.9	1490	95.7	0.89	1.8	0.7	7	52	547	5760	6336	1000
Y.YKS5604-6	1250	88	990	95.4	0.86	1.8	0.7	6	93	622	6140	6815	2000
Y.YKS5601-8	630	47	740	94.4	0.82	1.8	0.7	6	71	1910	5300	5883	2000
Y.YKS5604-8	900	66.8	740	94.8	0.82	1.8	0.7	6	89.8	2407	5790	6427	2000
Y.YKS5601-10	450	36.2	595	93.2	0.77	1.8	0.7	6	90	2235	5180	5698	3000
Y.YKS5605-12	500	42.4	495	93.2	0.73	1.8	0.7	6	126	3480	5960	6556	3000

FAQ

01.Which industries are YKS series motors suitable for?

(1) Energy & Power Industry (2) Oil & Gas (3) Mining & Metallurgy (4) Building Materials & Cement Industry (5) Chemical & Petrochemical (6) Water & Municipal Engineering

02.In which equipment is the YKS series of motors mainly used?

Boiler feed pumps, induced draft fans, forced draft fans.

Auxiliary turbine equipment, large water pumps.

Water injection pumps, compressors, oil transfer pumps.

Rolling mills, blowers, sintering machines.

Raw material mills, rotary kilns, fans, dust removal systems.

Booster pump stations, water transmission systems.

03.Is the installation and maintenance of YKS series motors convenient?

Adopting the modular design concept, it can make the installation of the machine simpler and more convenient. In terms of maintenance, it also saves a lot of time for diagnosing mechanical faults, enabling more accurate and efficient replacement of faulty parts of the motor.

04.How to choose a motor that suits your current needs?

You mainly need to determine the main parameters of the motor, such as rated voltage, rated power, rated frequency, duty type, cooling method, installation environment, and protection level. Then you can roughly select a motor that meets your needs. If you require a more professional motor selection, you can contact our sales team. Our sales email is: sales@simo-motor.com.cn .

Installation Dimension Drawing

Energy Efficient Motor11

Choose Energy Efficient Motor, Choose Simo, Choose Quality! Contact email: sales@simo-motor.com.cn
