SIMO ZTP-62 Train auxiliary motor
SIMO Motor of China is an enterprise specializing in the R & D and production of electric motors. The ZTP series motors are mainly used to provide power for auxiliary power equipment of railway locomotives, bullet trains and other vehicles. The ZTP - 62k is mainly used as separately excited DC motors, tachogenerators, fuel pump motors, etc. in diesel locomotives or bullet trains. SIMO Motor is a designated supporting manufacturer of China National Railway Group Co., Ltd. Its auxiliary motors for railway applications are exported to more than 30 overseas countries, safeguarding the railway transportation in those countries.

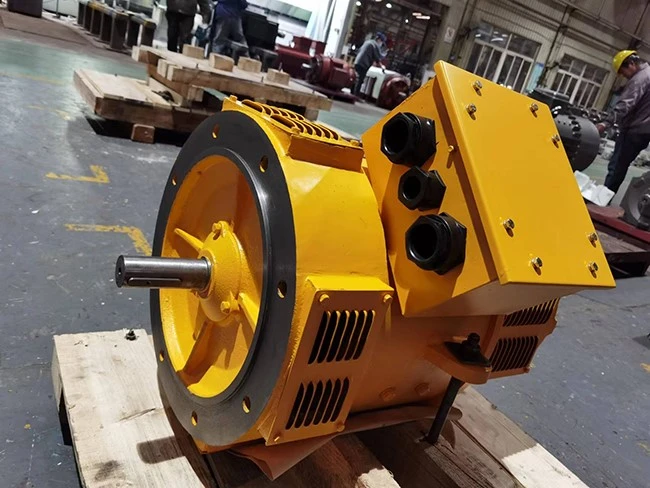

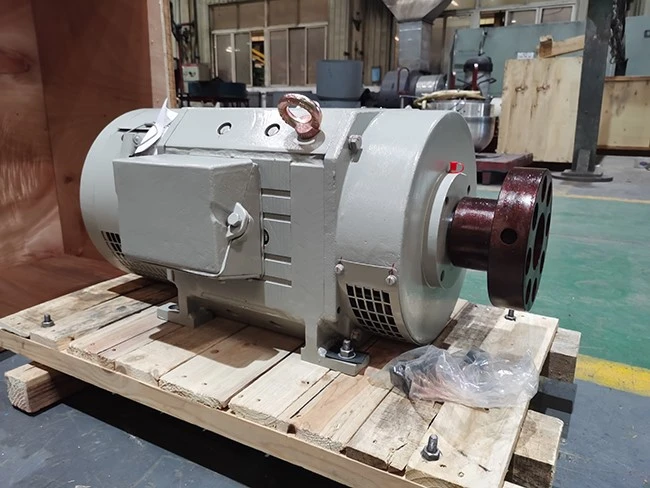

The SIMO ZTP - 62k motor adopts a new type of fully laminated octagonal frame, which has high stator space utilization, small volume, small moment of inertia, good dynamic performance, and can withstand pulse current and high current change rate. This motor can withstand the shocks and vibrations generated during the normal operation of locomotives and EMUs, and can still operate normally when locomotives encounter harsh environments such as rain, snow, and sandstorms.
Structural type
The basic installation type of the motor
Horizontal, frame with feet (IMB3)
According to the needs of users, it can also be made into other installation types, single-shaft extension or double-shaft extension motors, and single-shaft extension motors can be equipped with tachogenerators or other speed measuring devices at the non-transmission end.
The position of the motor outlet box of IMB3 and IMB35 installation type is from the transmission end, on the left side of the frame (for the positive box), and if the user needs, it can also be on the right side of the frame (for the reverse box), or above the frame. IMBl0 and IMVl0 mounted motors do not have an outlet box.
The basic direction of rotation of the motor is regarded as counterclockwise rotation from the transmission end.
Model description
Model description of SIMO ZTP series DC auxiliary motors for railway locomotives and EMUs
ZTP - 62K: "Z" stands for DC motor, "T" represents railway transportation, "P" indicates special - purpose for matching, "62" is the frame size, and "K" is the distinguishing code.
Products Description
| Serial number | Model | Power(KW) | Rated voltage(V) | Current rating(A) | Rated speed(r/min) | Excitation method | Rated efficiency(%) | Work schedule | Quality(kg) |
| 1 | ZTP-62G | 13 | 110 | 139 | 1500 | shunt | 85 | S1 | 200 |
| 2 | ZTP-62K | 9 | 74 | 148 | 1000 | Serial | 82.1 | S4(60%) | 200 |
| 3 | 9 | 78.5 | 139 | 1000 | Serial | 82.4 | S4(60%) | ||
| 4 | 13 | 110 | 139 | 1500 | Serial | 85 | S1 | ||
| 5 | ZTP-62K1 | 10.4 | 78.5 | 165 | 1200 | shunt | 80.2 | S1 | 200 |
| 6 | ZTP-62K2 | 18.5 | 110 | 210 | 1500 | Serial | 80 | S4(50%) | 200 |
| 7 | ZTP-62A | 22 | 240 | 107.8 | 3100 | Serial | S1 | 155 | |
| 8 | ZTP-62A1 | 22 | 220 | 115 | 3100 | Serial | S1 | ||
| 9 | ZTP-62L | 22 | 220 | 115 | 3000 | Serial | S1 |
Products Installation Dimension Drawing
Main Technical Parameters
|
Frame: |
H62 |
|
Power Scope: |
9~22kw |
|
Voltage: |
110V,78.5V,220V,74V,240V |
|
Frequency: |
50Hz |
|
Number of Poles: |
2P |
|
Speed |
3100 rpm,3000 rpm ,1500 rpm,1200rpm,1000rpm |
|
Cooling Mechod |
IC01 |
|
Protection Grade |
IP22 |
|
Insulation Class |
-40℃~+45℃ |
|
Duty: |
S1,S4(60%),S4(50%) |
|
Mounting Type |
IMB3/B35/V1 |
Related Models: ZTP-62G ZTP-62K ZTP-62K1 ZTP-62K2 ZTP-62A ZTP-62A1 ZTP-62L
Ordering instructions
1. Before ordering, please consult the product sample, clarify the technical data such as the model specifications of the required product, if there is a discrepancy between the required varieties and specifications and the sample, please contact our factory, if there are special requirements, please put forward specific requirements in advance, and sign a contract or technical agreement after consultation and agreement between the two parties.
2. When ordering, please indicate the motor model, power, voltage, speed, working system, structure installation type, excitation mode, excitation voltage, number of shafts, outlet box position, rotation direction, and required accessories, spare parts name, quantity, etc.
3. If you need to go abroad with a package, please indicate in the contract if there are wet tropical requirements.
